Quantity(Piece/Pieces) | 1 ~ 1000 | >1000 |
Est. Time(days) | 7 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.
Package Contents:

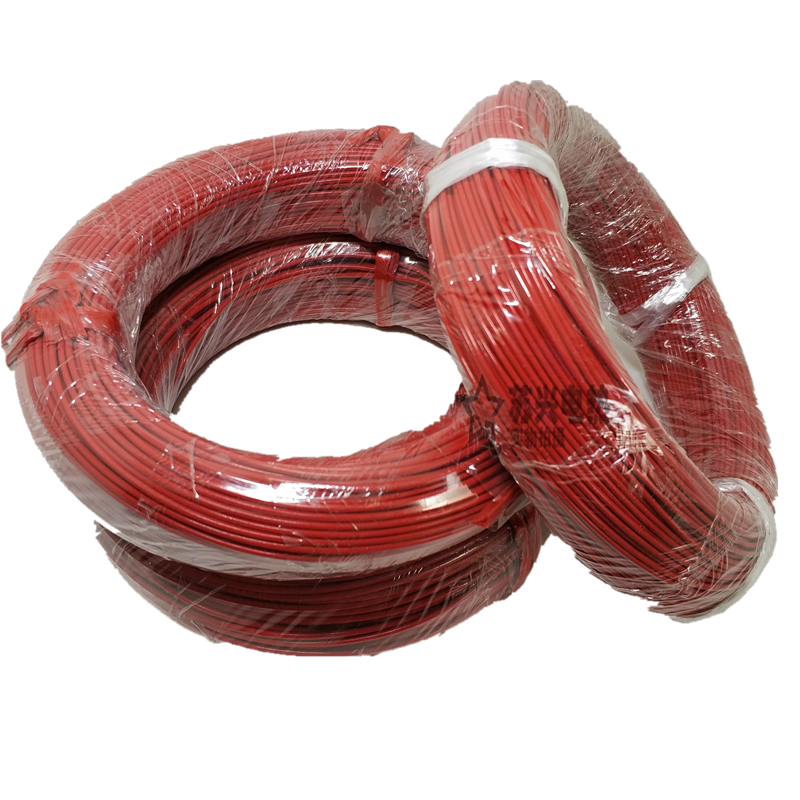

1x 100Meters 12K Floor Warm Heating Cable
20set Tubes
Technical Specifications:
Color: Red
Material: Carbon fiber
Product Name: Carbon fiber heating wire 100m
Insulating materials: Silicone rubber
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10% Ω / M

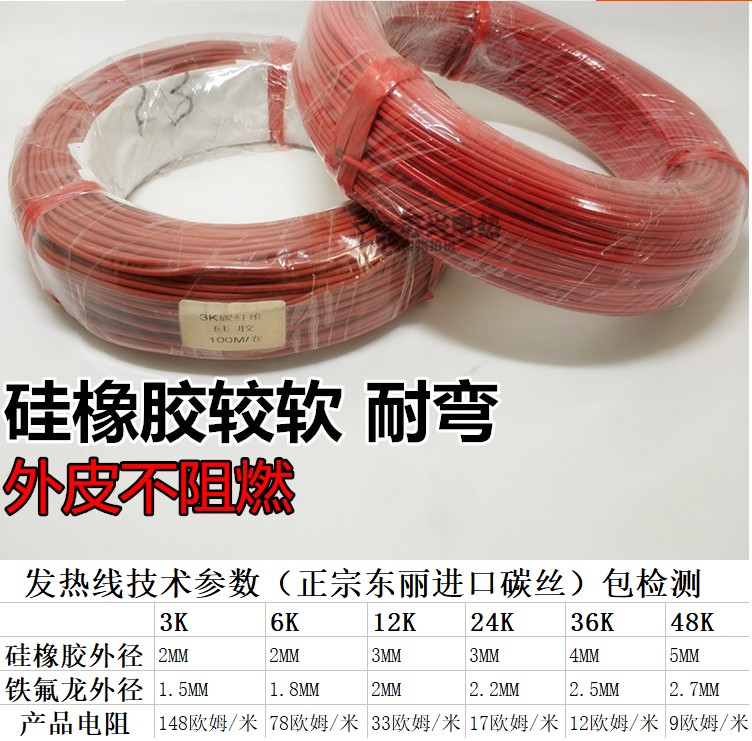

Heating conductor: 12K
High voltage test: 3000V
Leakage current: 0.05mA/m
Diameter: 3 MM
Length: 100m/328FT
Conductor resistance: 33 Ω / M
Product Po wer Calculation:
Voltage * voltage / total resistance = power
For example: 12K carbon fiber, length of 10 meters
220V × 220V / (10 m x 33 Ohm) =150 watts
For example: 12K carbon fiber length of 15 meters
220V × 220V / (15 m x 33 Ohm) =100 watts
The data shows that the longer heating wire you use and the smaller output po wer. (The min length of 12K carbon fiber heating wire is 10 meters)
Features and Ben ef its:
? With excellent heat resistance. Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.
? Excellent insulation.New infrared floor heating, make the temperature uniformity, promote blood circulation.
? Having good cold resistance and excellent medical rationalization.
? The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long ben efit, low maintenance costs.
And etc...
? You can manually make heating equipment, electric blankets, car seat heat er, heating appliances, animal heating system, heating system, etc.
? Suitable for farms, pig insulation board, jade bed, electric blanket, electric heating towel rack, footbath, rice cookers, pet pad, electric warm clothing, piping warm, ect.
Notice:
1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. The color may have different as the difference display,pls understand.
$4.94~6.18
Min. Order:5
