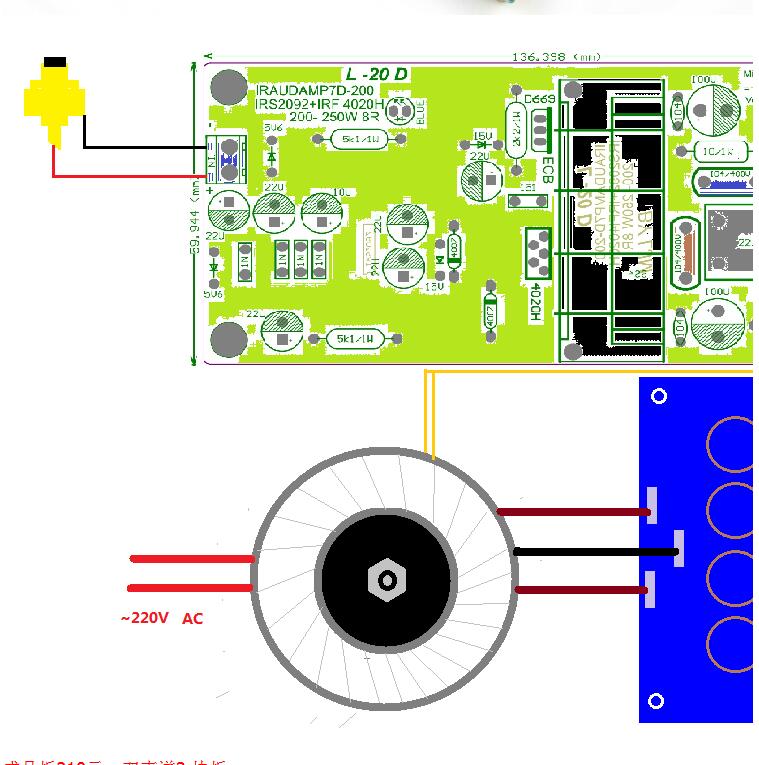

Recommend work voltage :
- Load 8Ohm Transformer voltage Double AC 40V ,DC :+ -DC55V, 200w / channel , filter capacitor 6800UF*2
- Load 4Ohm Transformer voltage Double AC 35V ,DC :+ -DC48V,250w / channel , filter capacitor 10000UF*2
- Load 4Ohm DC +-58V ,350W 4R annel ,700w/2channels ,Recommend voltage AC double 41V 1000W.
IRAUDAMP7S official introduction indicators
Applications
- AV receivers
- Home theater systems
- Mini component stereos
- Powered speakers
- Sub-woofers
- Musical Instrument amplifiers
- Automotive after market amplifiers
Features
- Output Power:Scalable output power from 25W- 500W (see Table 1)

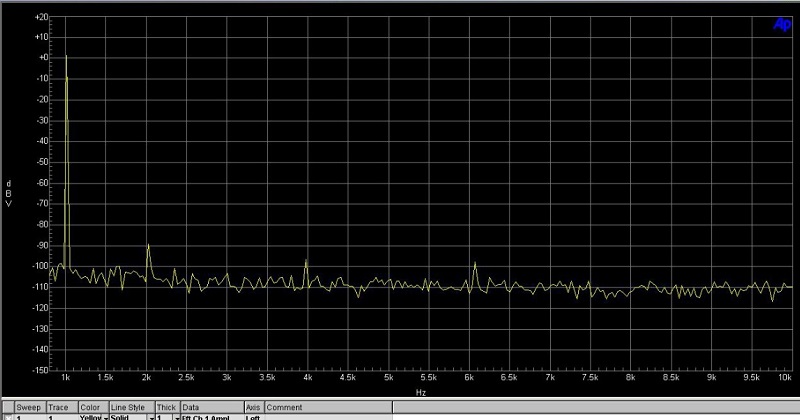

- Residual Noise:200 μV, IHF-A weighted, AES-17 filter

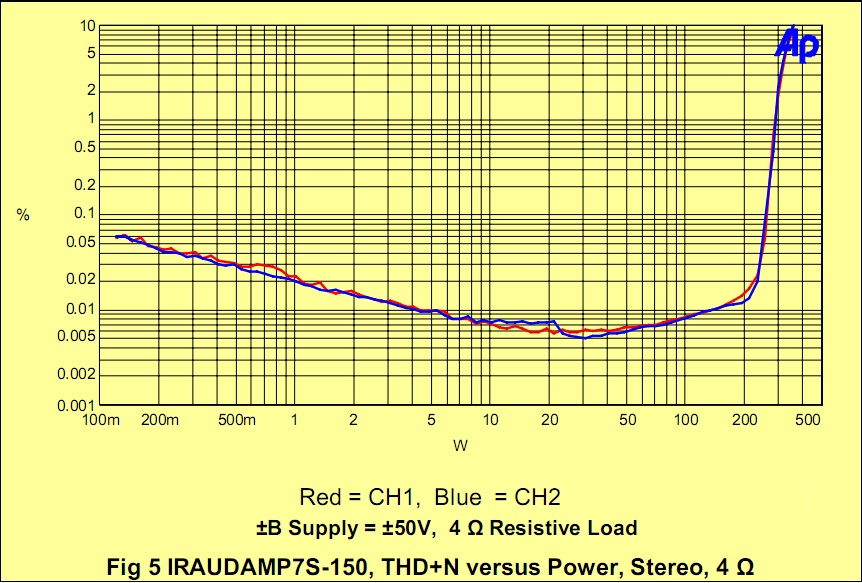

- Distortion:0.007 % THD+N @ 60W, 4 R
- Multiple Protection Features: Over-current protection (OCP), high side and low side MOSFET
- Over-voltage protection (OVP),
- Under-voltage protection (UVP), high side and low side MOSFET
- DC-protection (DCP),
- Over-temperature protection (OTP)
- PWM topology: Self-oscillating PWM, half-bridge or full-bridge topologies selectable
Package include :

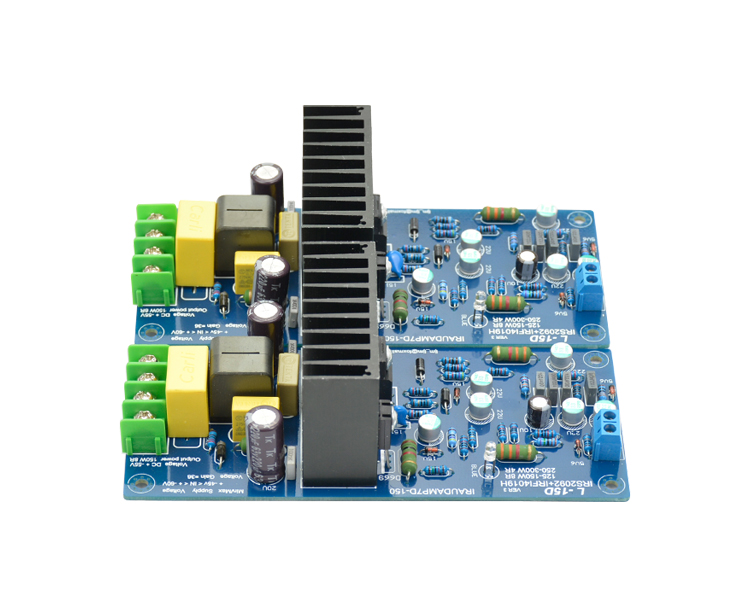

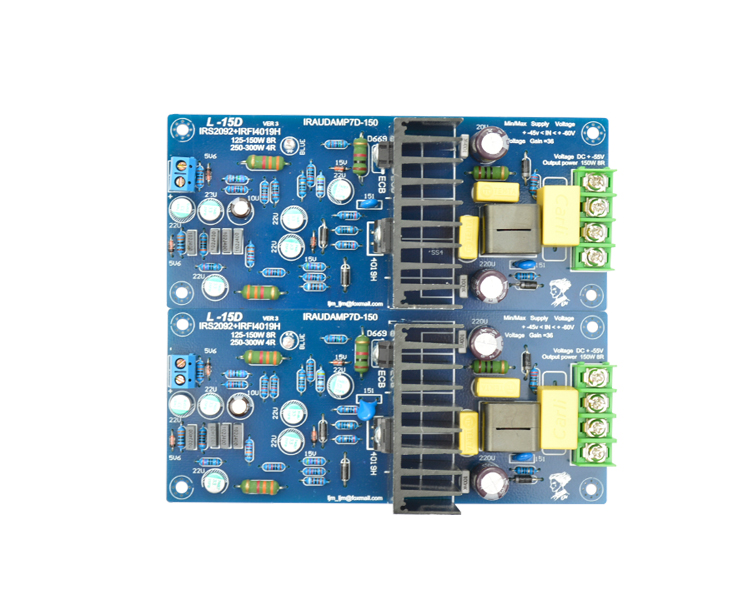

- L15D digital audio power amplifier kit ...X 1set (Include 2Boards and all the components )
Packaging Including:

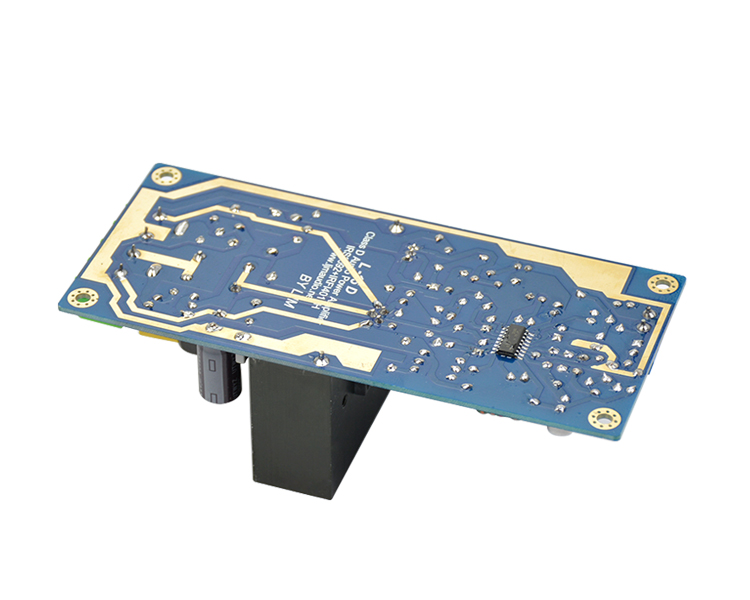

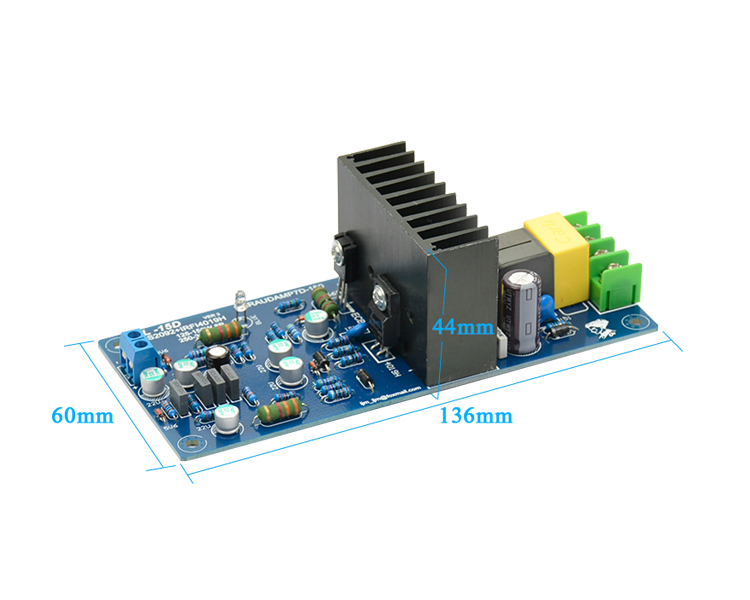

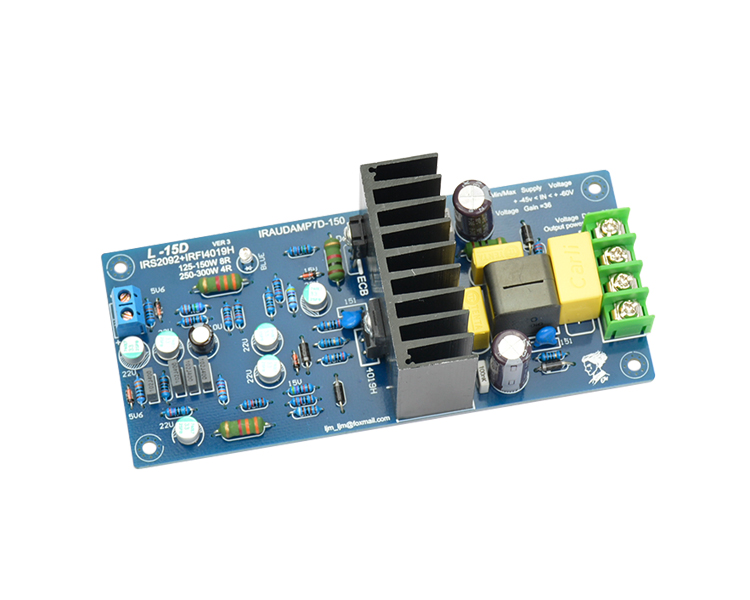

1 x Assembled L15D Amplfiier Board(2 Channels)
