Quantity(Piece/Pieces) | 1 ~ 1000 | >1000 |
Est. Time(days) | 7 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.
Description:
Cr20Ni80 is usually used for high temperature furnaces in the heat treating, ceramics, glass, steel, and electronic industries. Other common applications include: heating elements (hair dryers, ovens, toasters, kilns), model and high power rocket motor and recovery ejection charge ignition, heat sealers, poly cutters, foam cutters, resistors, rheostats, current-temperature controls, pyrotechnic ignition, lab inoculating loops, release mechanisms, ceramic support in kilns.
Specifications:

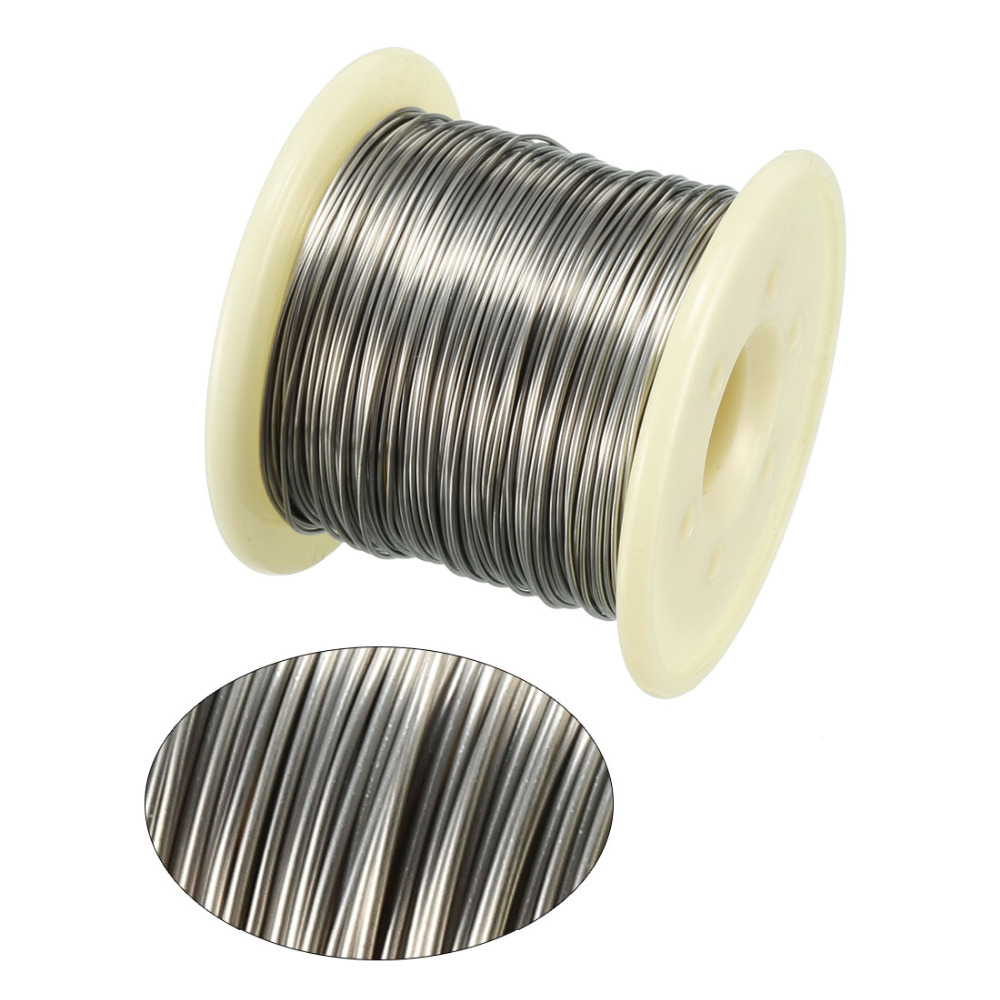

Material: Nichrome(Cr20Ni80);
Main Color: Silver Tone.
Maximum Operating Temp : 900C(1652F)
Wire Gauge | Wire Diameter | Length | Resistance |

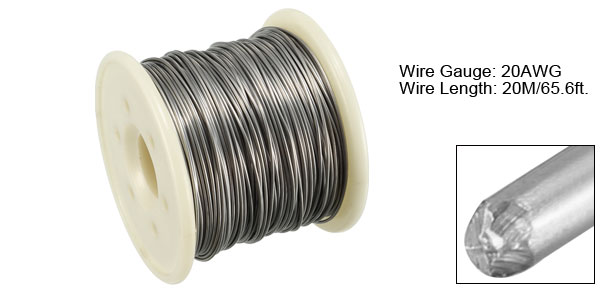

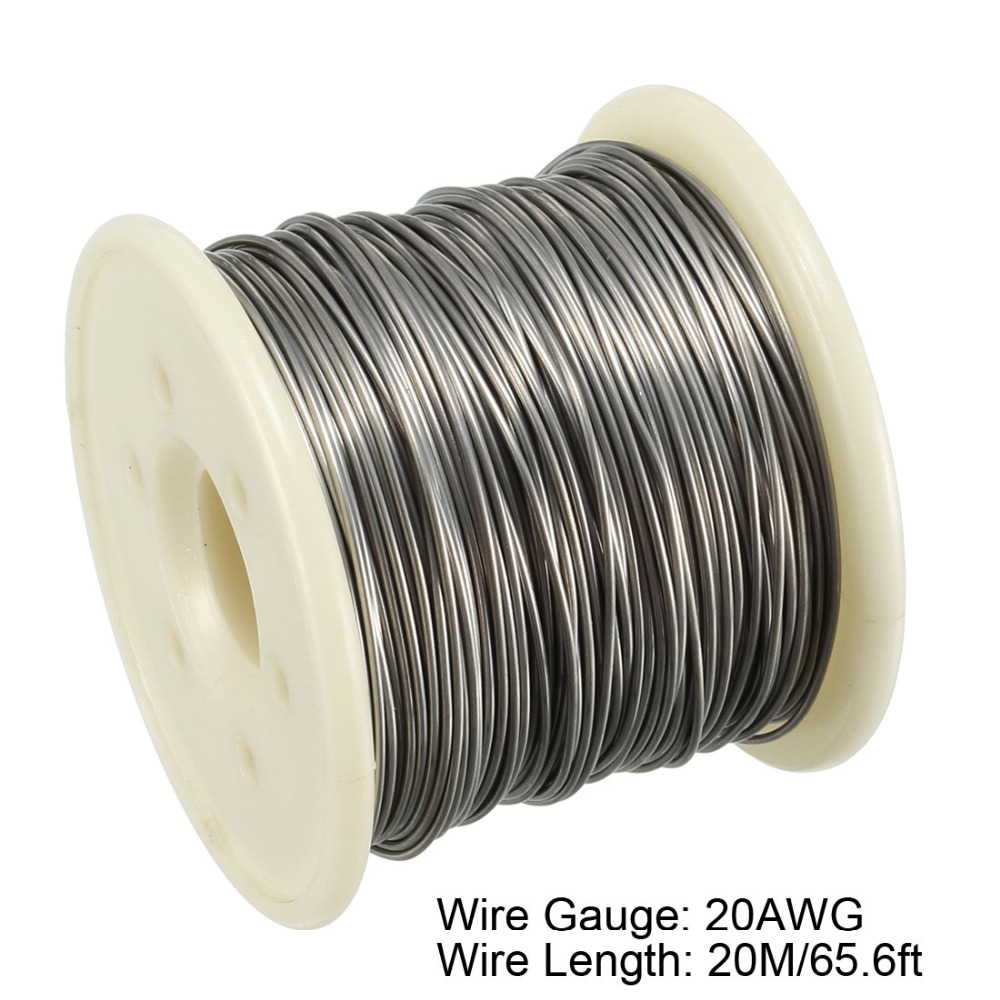

AWG20 | 0.8mm/0.03inch | 20m/65.6ft | 2.168Ohm/M |

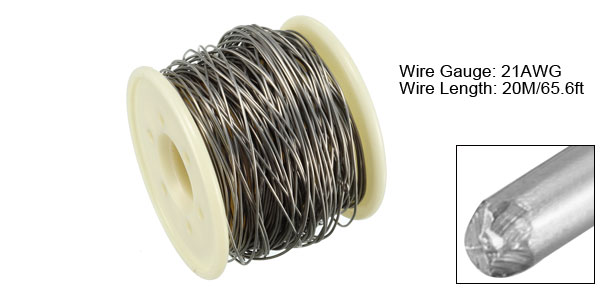

AWG21 | 0.7mm/0.028inch | 20m/65.6ft | 2.832Ohm/M |

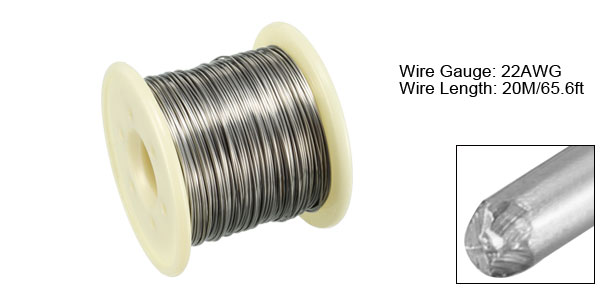

AWG22 | 0.6mm/0.024inch | 20m/65.6ft | 3.855Ohm/M |

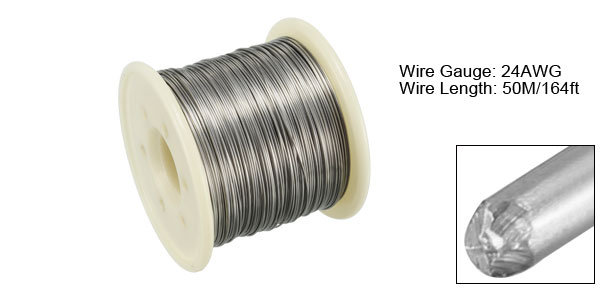

AWG24 | 0.5mm/0.02inch | 50m/164ft | 5.551Ohm/M |

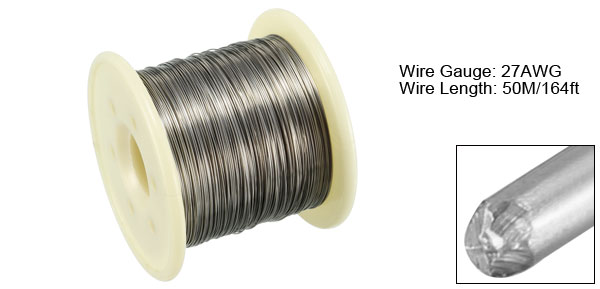

AWG27 | 0.35mm/0.014inch | 50m/164ft | 11.33Ohm/M |

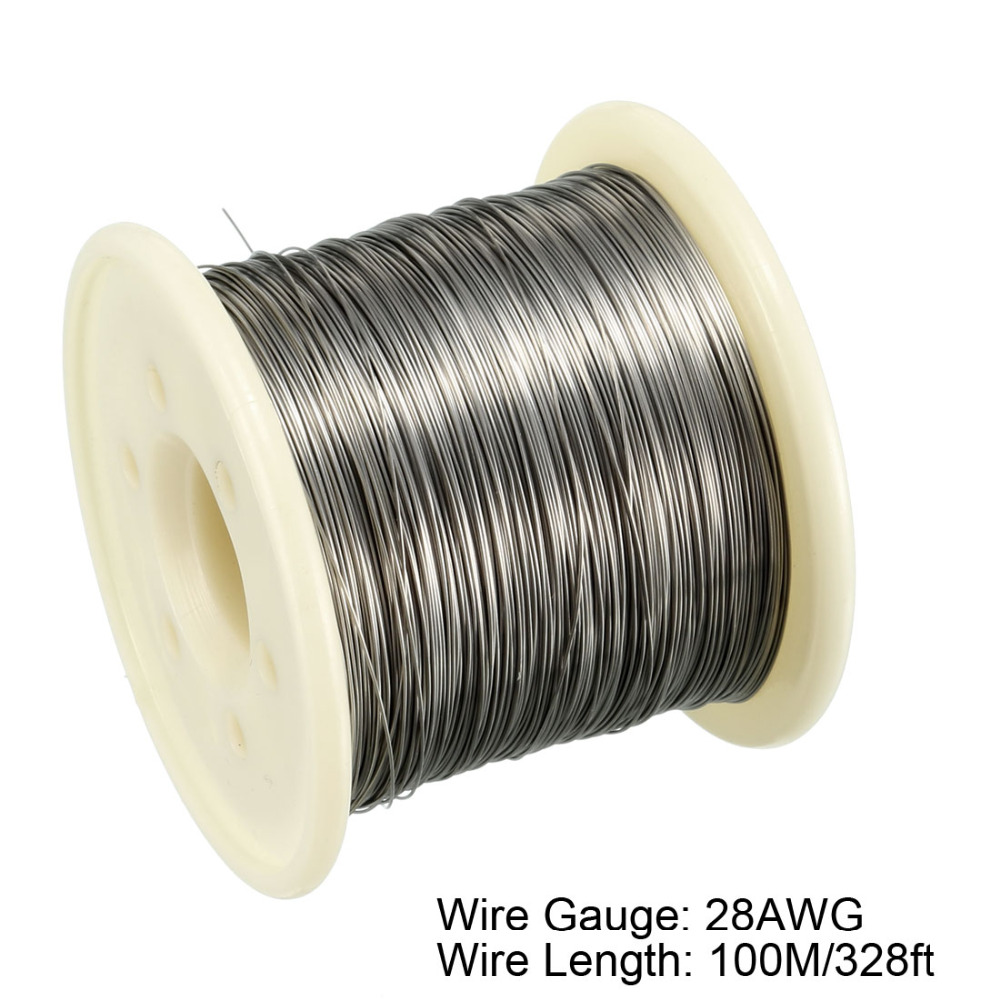

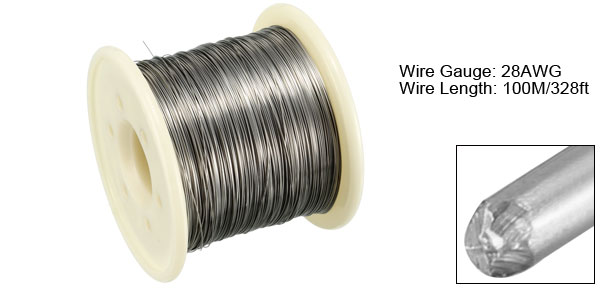

AWG28 | 0.3mm/0.012inch | 100m/328ft | 15.4Ohm/M |

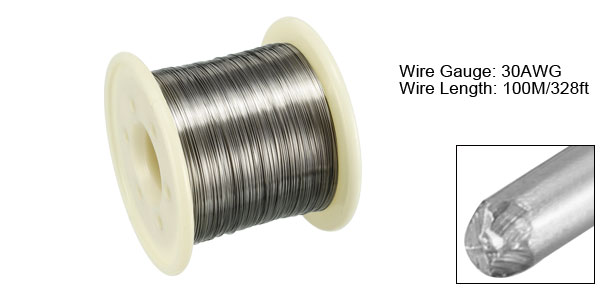

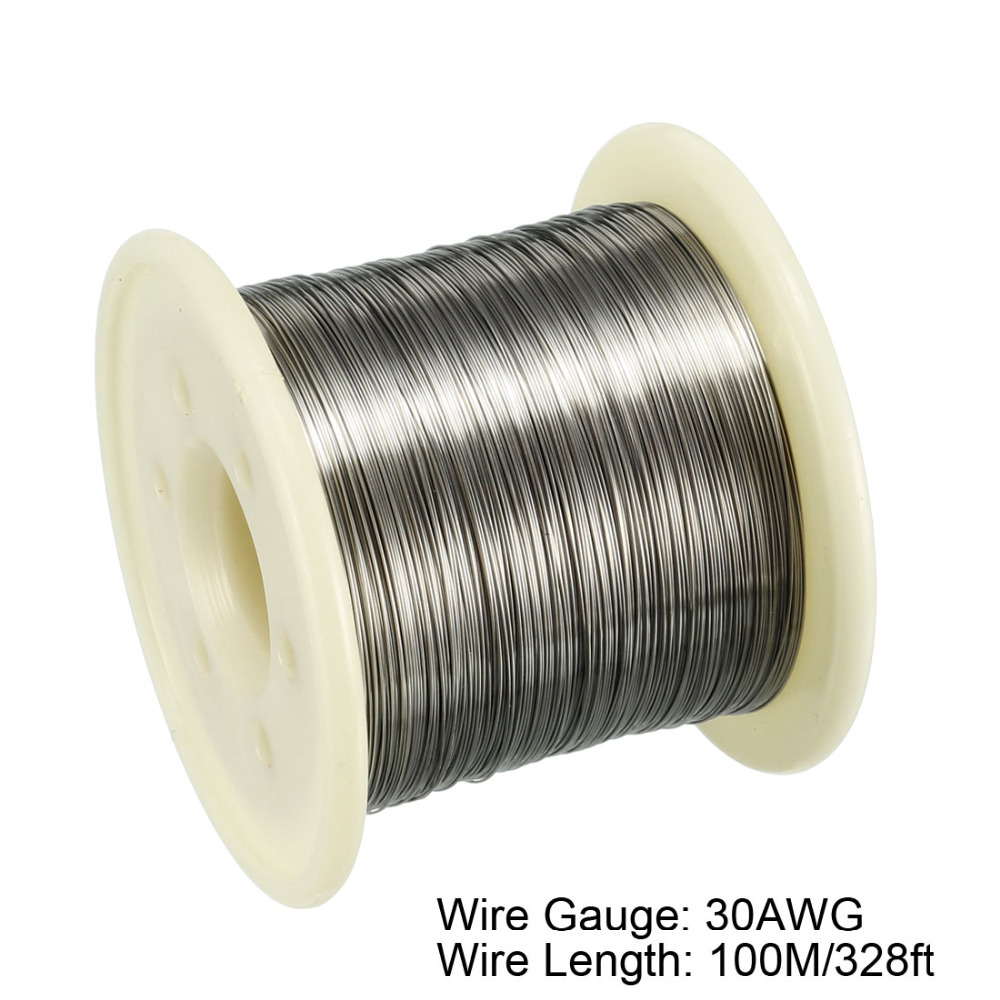

AWG30 | 0.25mm/0.012inch | 100m/328ft | 22.21Ohm/M |

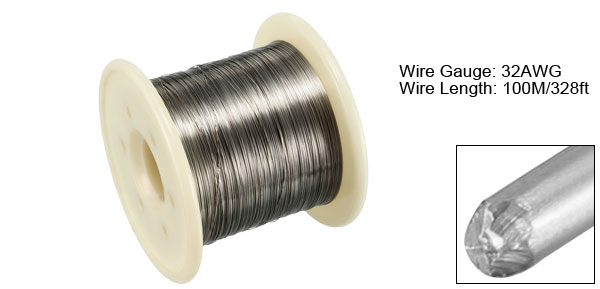

AWG32 | 0.2mm/0.008inch | 100m/328ft | 34.7Ohm/M |
Package content:
1pcs x Resistance Wire
