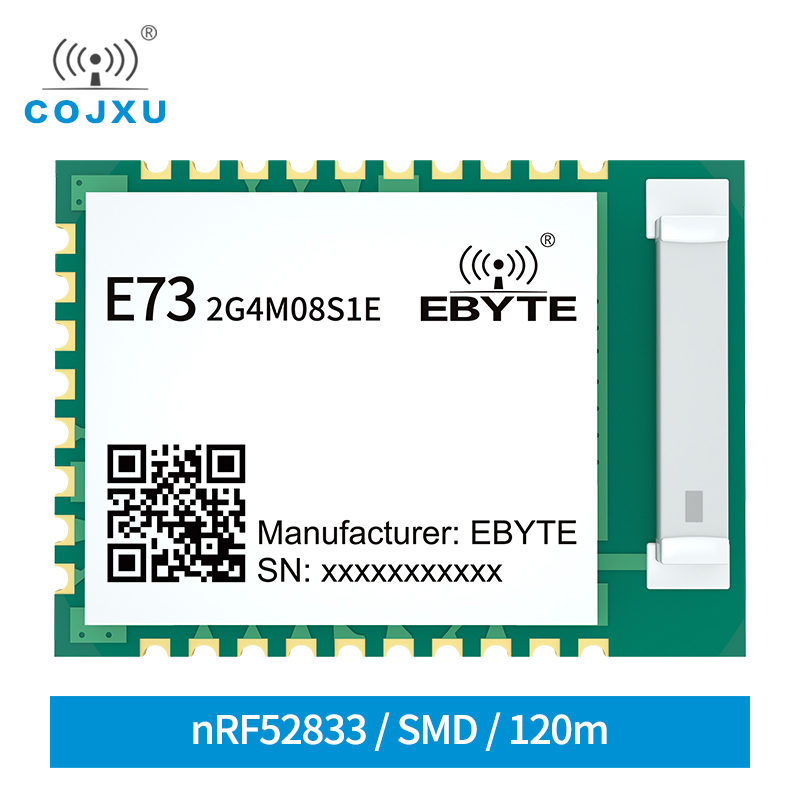

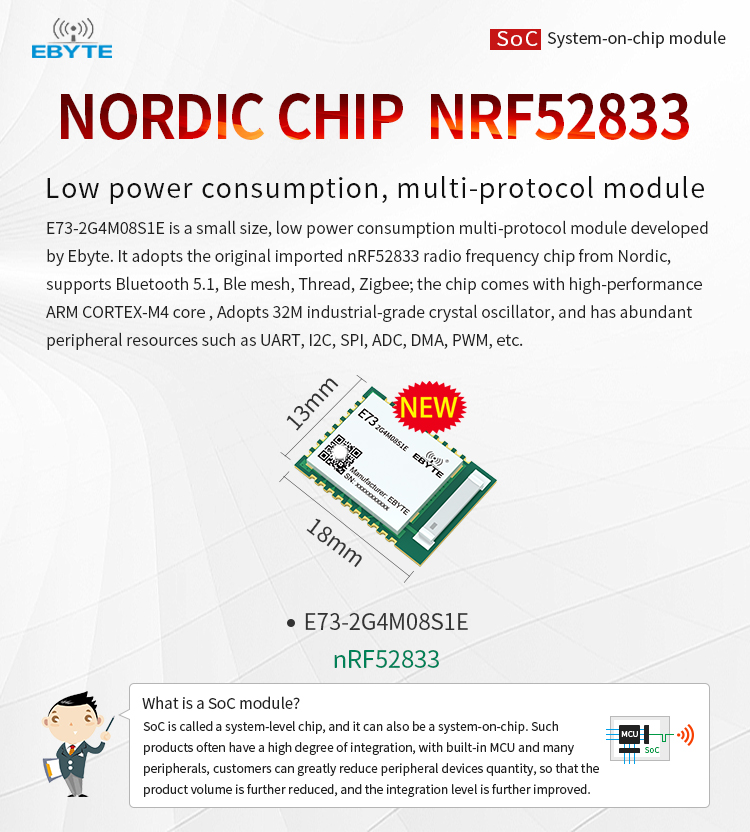

E73-2G4M08S1E nRF52833 module BLE5.1 Zigbee low-power multi-protocol module SMD Wireless Transceiver Transmitter Receiver

Main Parameters

Performance

Remarks

Min.

Max

Power supply（V）

0

5.5

Voltage over 5.5V will causepermanent damage to module

Blocking power（dBm）

-

10

Chances of burn is slim whenmodules are used in short distance

Operating temperature（℃）

-40

+105

Industrial grade

Main Parameters

Performance

Remarks

Min.

Typical

Max

Operating voltage（V）

1.7

3.3

5.5

≥3.3 V ensures output power

Communication level（V）

-

3.3

-

For 5V TTL, it may be at risk ofburning down

Operating temperature（℃）

-40

-

+85

Industrial design

Operating frequency（MHz）

2360

-

2500

Support ISM band

Transmitting current （mA）

-

17.5

-

TX only run current(DC/DC, 3 V) PRF = +8 dBm

-

12.9

-

TX only run current(DC/DC, 3 V) PRF = +4 dBm

-

8

-

TX only run current(DC/DC, 3 V) PRF = +0 dBm

Receiving current（mA）

-

7.8

-

RX only run current (DC/DC, 3V)1 Mbps / 1 Mbps BLE

-

8.4

-

RX only run current (DC/DC, 3V)2 Mbps / 2 Mbps BLE

Transmitting power（dBm）

7

7.5

8

-

Receiving sensitivity（dBm）

-103dBm @ BLE 125kbps

long distance mode

-96dBm @ BLE 1Mbps

-

Main parameter

Description

Remarks

Reference distance

120m

Clear and open environment, height 2.5 meters, air rate1Mbps

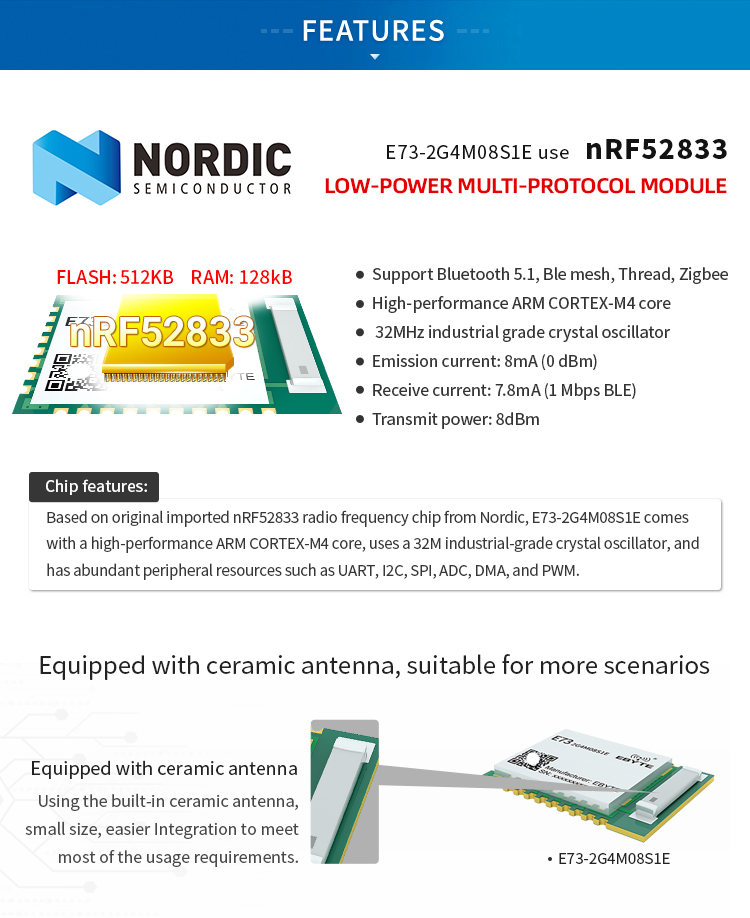

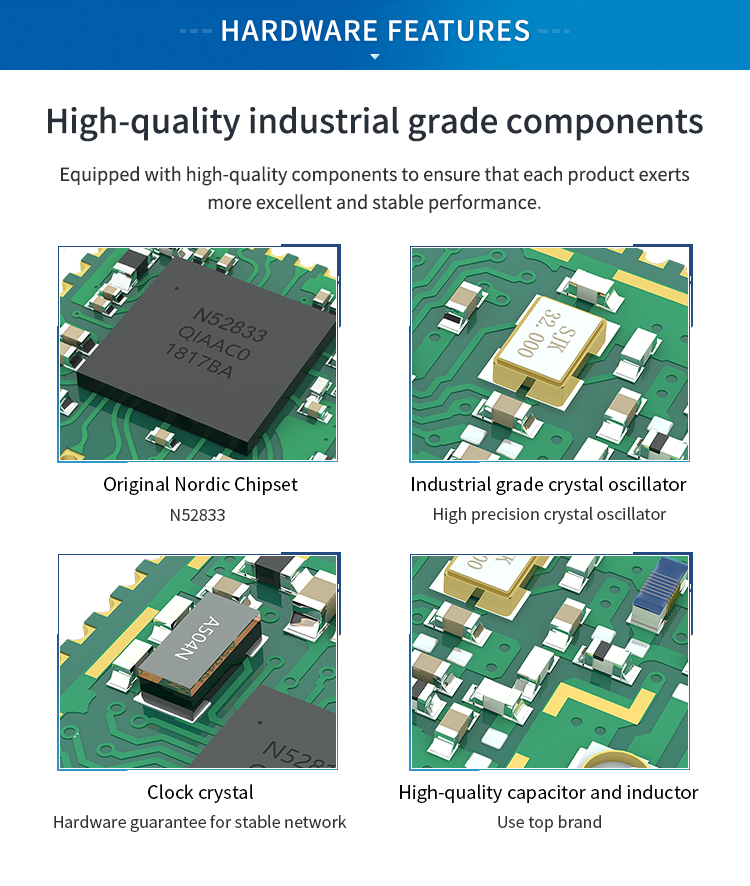

Crystal Oscillator

32MHz

-

Protocol

BLE 5.1、Ble mesh、Thread、Zigbee

-

Package

SMD

-

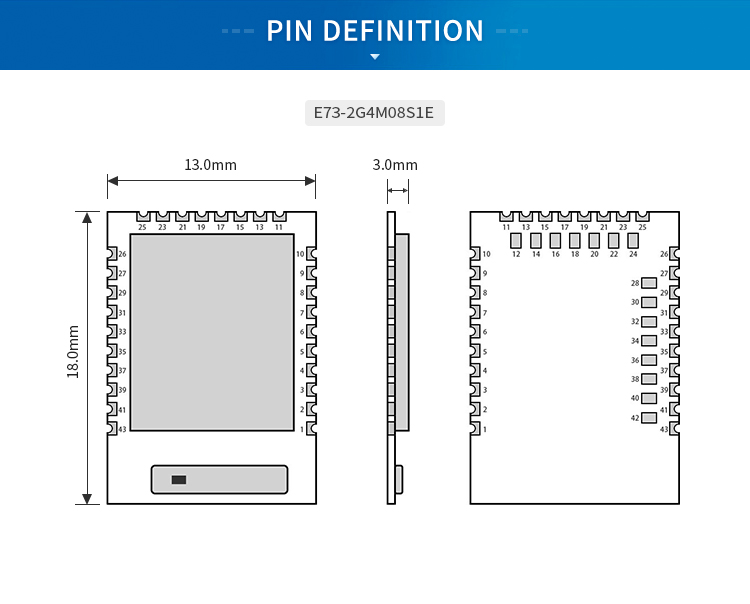

Interface

1.27mm

Stamp hole

IC

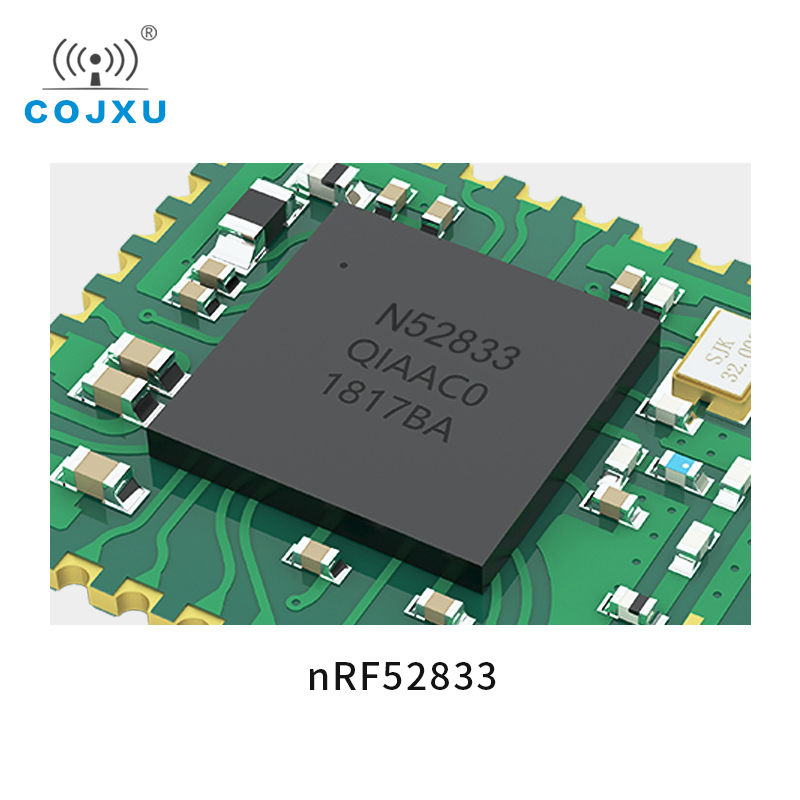

nRF52833-QIAA/aQFN ™ 73

-

FLASH

512kB

-

RAM

128kB

-

Core

ARM®Cortex®-M4

-

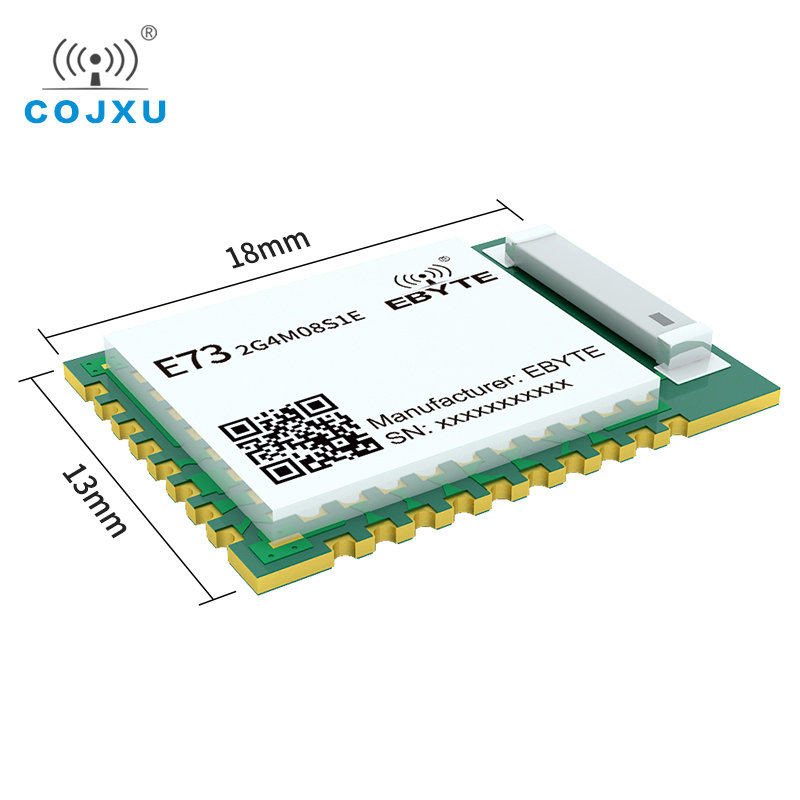

Size

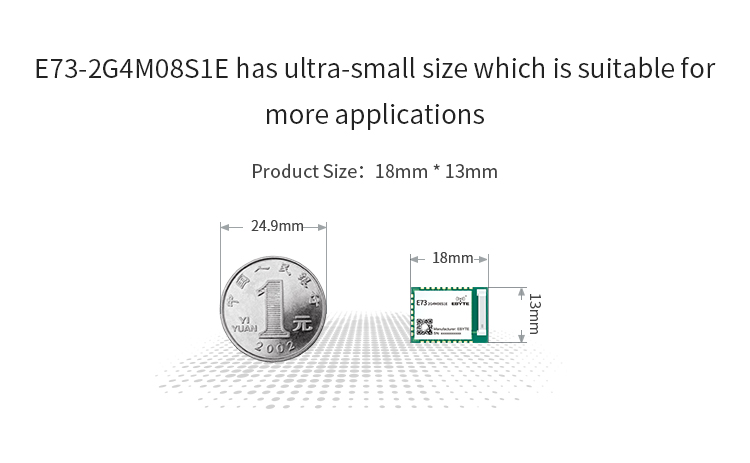

13*18mm

-

Weight

1±0.1g

-

Antenna

ceramic antenna

50 ohm impedance
