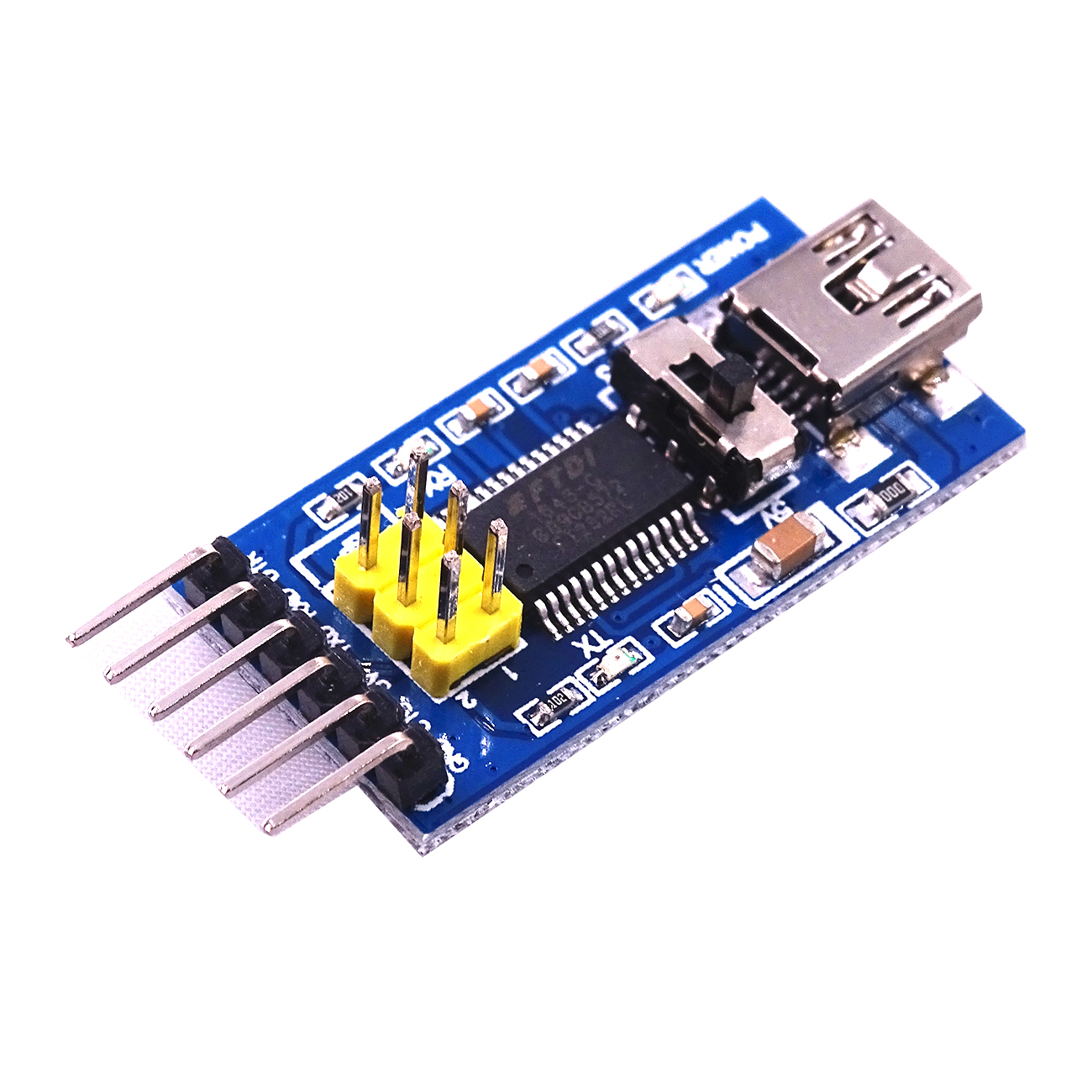

Product performance:

Standard interface, compatible with a variety  official controller

Original FT232 chip, stable performance

With power, send, receive indicator, work status at a glance

With 3.3V and 5V power supply options

Can do ordinary USB to serial TTL module to use, download the STC microcontroller

Packing List:

FTDI Basic program download 1

【FT232R Introduction】
        With the development of computer technology, parallel port and serial port on the PC slowly disappeared, and now even the desktop are rare parallel port. But for engineers, parallel port and serial port are essential interfaces, especially the serial port. For the computer without serial port, the most convenient solution is to use the USB to serial port chip to a virtual serial out, many manufacturers have the production of such chips, such as silicon LABS CP210x series, TI's TUSB3410, Nanjing Qin Heng CH34x series, FTDI FT232 series, Prolific PL230x series, the Ark ARK3116 and so on. From the stability point of view, or FT232 series is the most reliable, you can use it to ease the debugging process without having to worry about the blue screen situation.
       FT232R chip is a single-chip solution, the general use of basic do not need peripherals, and even crystal, USB matching resistor, place the product information EEPROM has been integrated in the internal. FT232R there are some more useful features, the specific details can refer to FT232R data sheet.

Data Sheets Download:

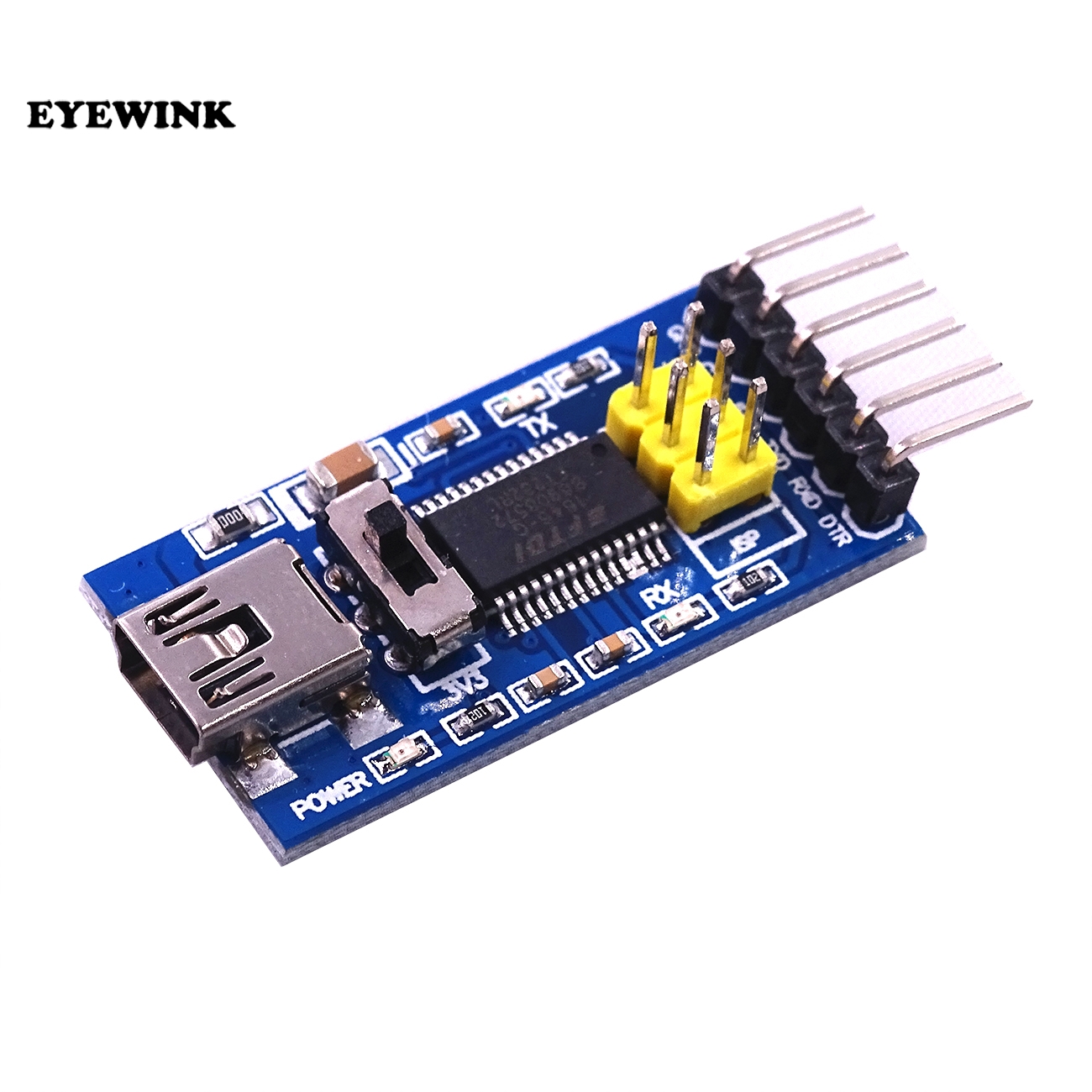

【Hardware Introduction】
· Use FTDI's FT232RL chip;
* Lead FT232RL chip all signal ports, TTL / CMOS level;
· RXD / TXD transceiver communication indicator;
• USB powered, optional 5V or 3.3V interface level (if other levels are desired, the target voltage can be supplied directly on the VCC and GND pins).

【Software introduction】
· FT232R the windows drive;
Serial debugging software.
