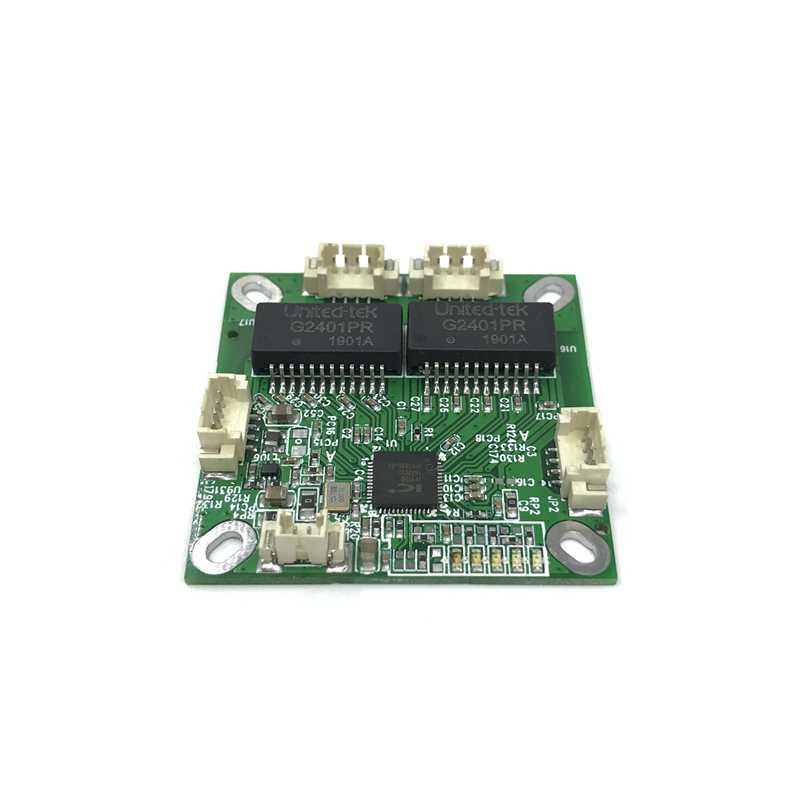

4 5 Port Ethernet Switch PCB & PCBA Circuit Board
4 port mini unmanaged Ethernet switch core module that provides 4 of 10/100Mbps adaptive Ethernet ports. The 38X38mm mini design size is easy to install and adapts to different embedded system integrations.
1> Comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards
2> Full-duplex use IEEE 802.3x standard, half-duplex use Backpressure standard;
3> 4 of 10/100Mbps adaptive pin network ports, support port auto flip(Auto MDI/MDIX)
4> Each port supports auto-negotiation and automatically adjusts the transmission mode and transmission rate
5> Support MAC address self-learning
6> Support full speed forwarding communication without blocking

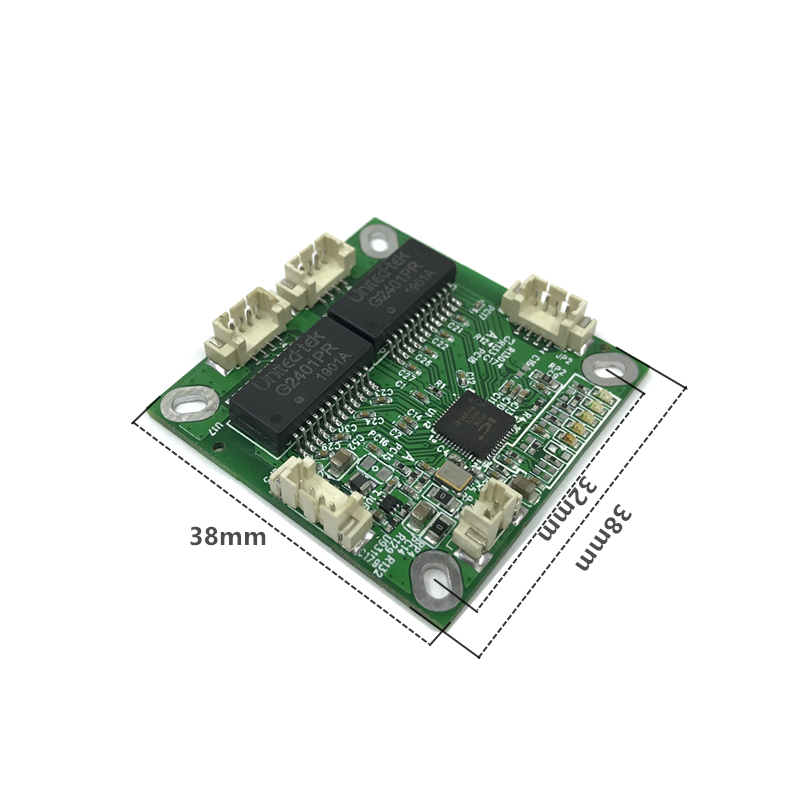

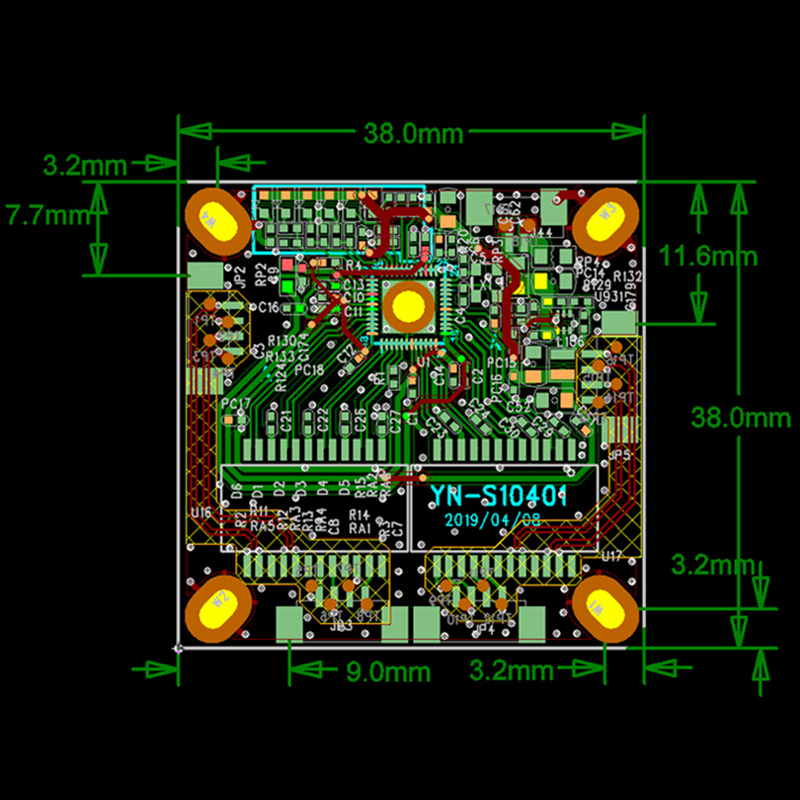

7> Mini size design, 38X38MM (Length x Width)
8> Dynamic LED indicator to provide simple working status prompts and troubleshooting
9> Power supply is 9-12V input
|
Protocol
|
Standard: IEEE802.3,IEEE802.3u,IEEE802.3x
Flow control: IEEE802.3x, Back Pressure
|
|

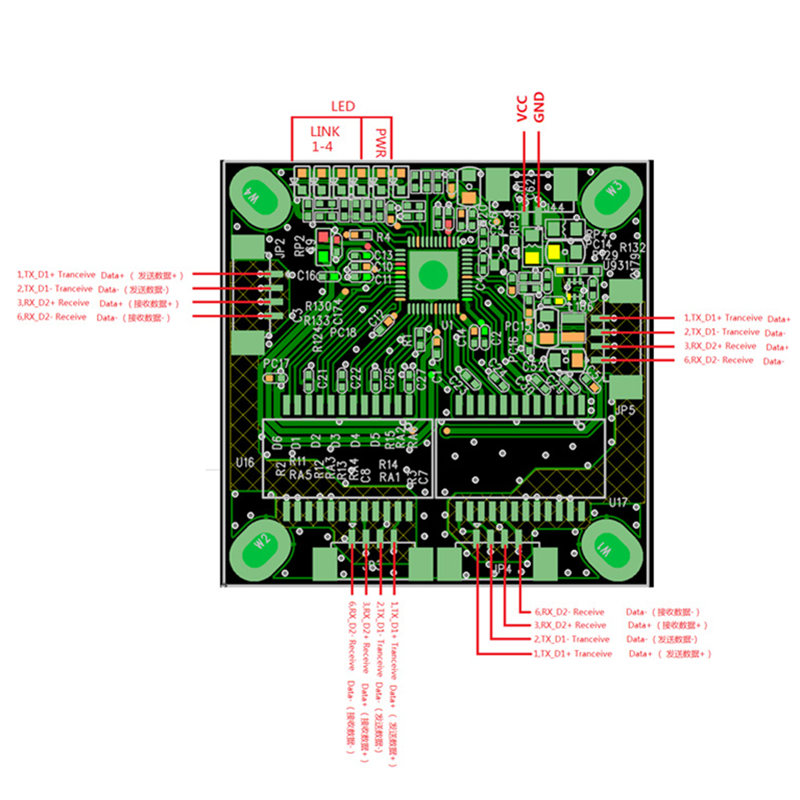

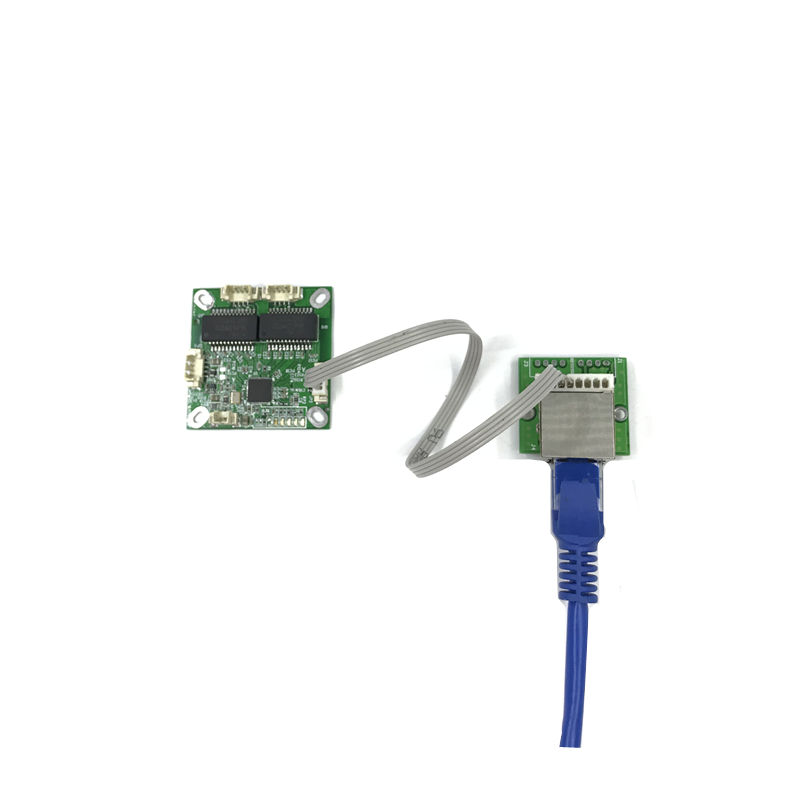

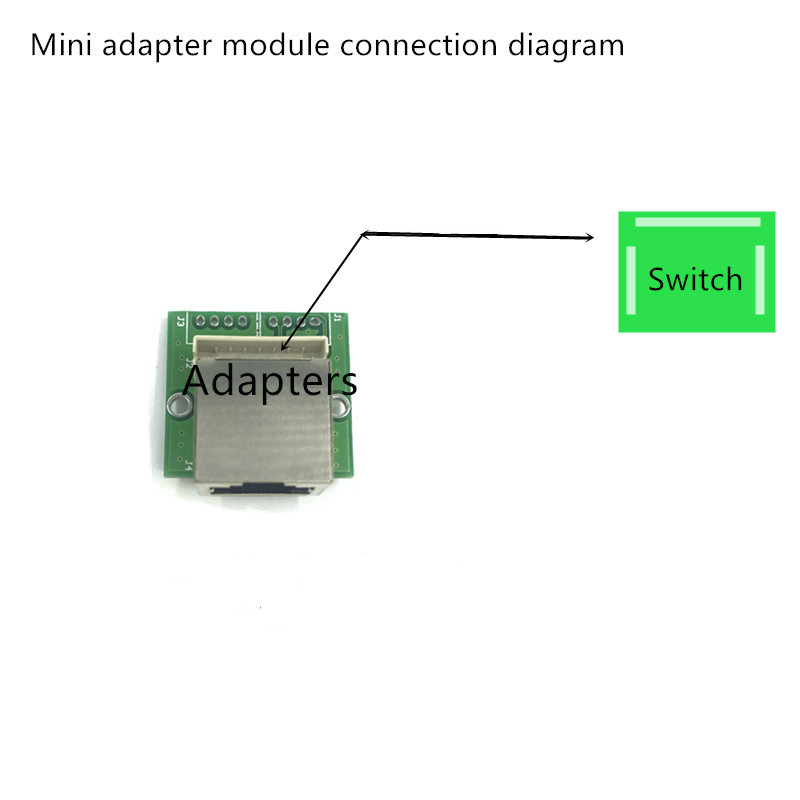

Interface
|
100M network port: 10Base-T/100Base-TX adaptive
|
|
Transmission distance
|
Twisted pair: 100M (standard CAT5/CAT5e cable)
|
|
Indicator light
|
Interface indicator:1-4(LINK/ACT)
Power Indicator: PWR (Power)
|
|
Switch Features
|
100 Mbps forwarding speed:148810pps
Transmission method: store and forward
System exchange broadband: 1.0G
Cache size: 1.0G
MAC address: 1K
|
|
Power supply
|
Input voltage: 12VDC (9~12VDC)
Input method: Pin type 2P terminal block, spacing 1.25MM
|
|
Consumption
|
No load: 0.9W@12VDC
Load: 2W@VDC
|
|
Working environment
|
Working temperature: -5~+55°C
Storage temperature: -40~+85°C
Humidity: 10%~95% (no condensation)
|
|

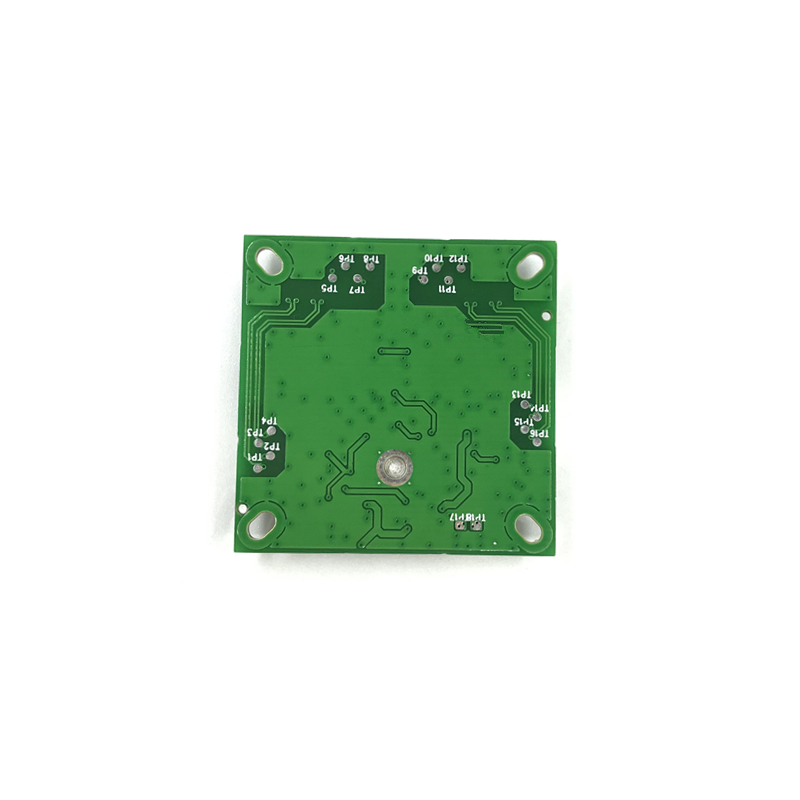

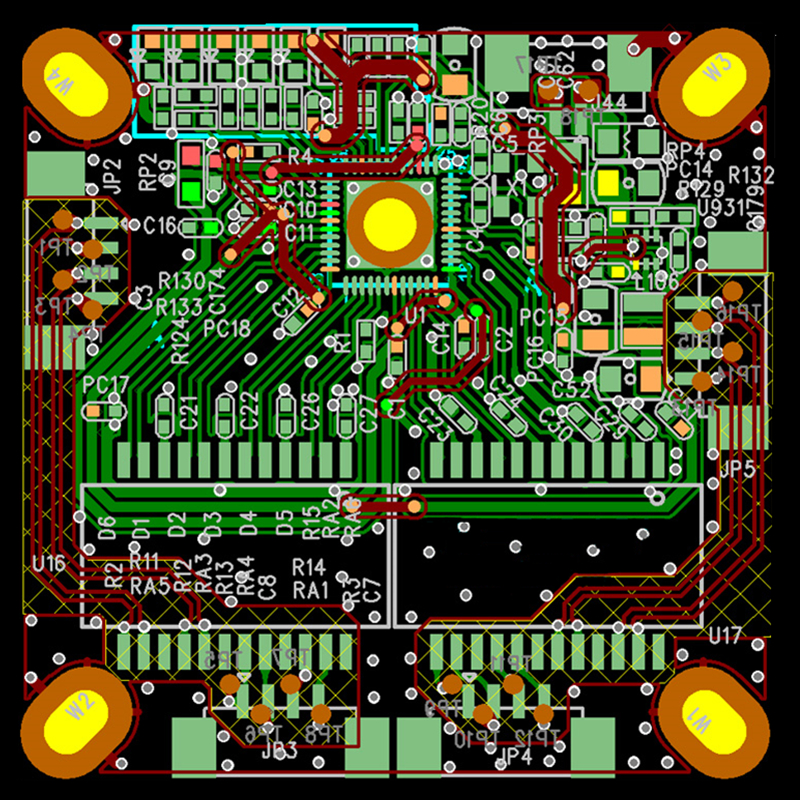

Product structure
|
Weight: 12g

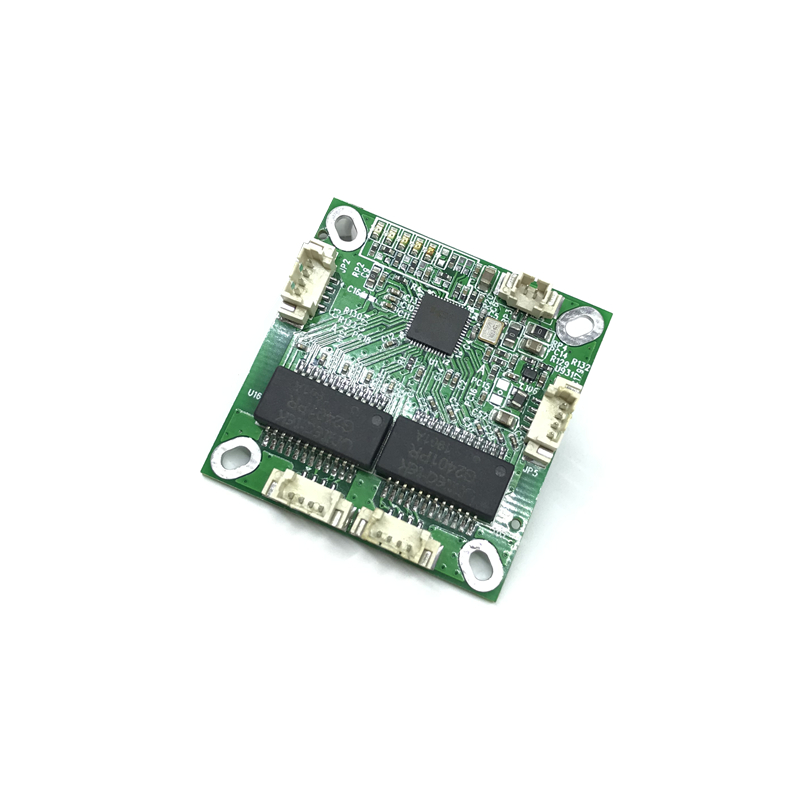

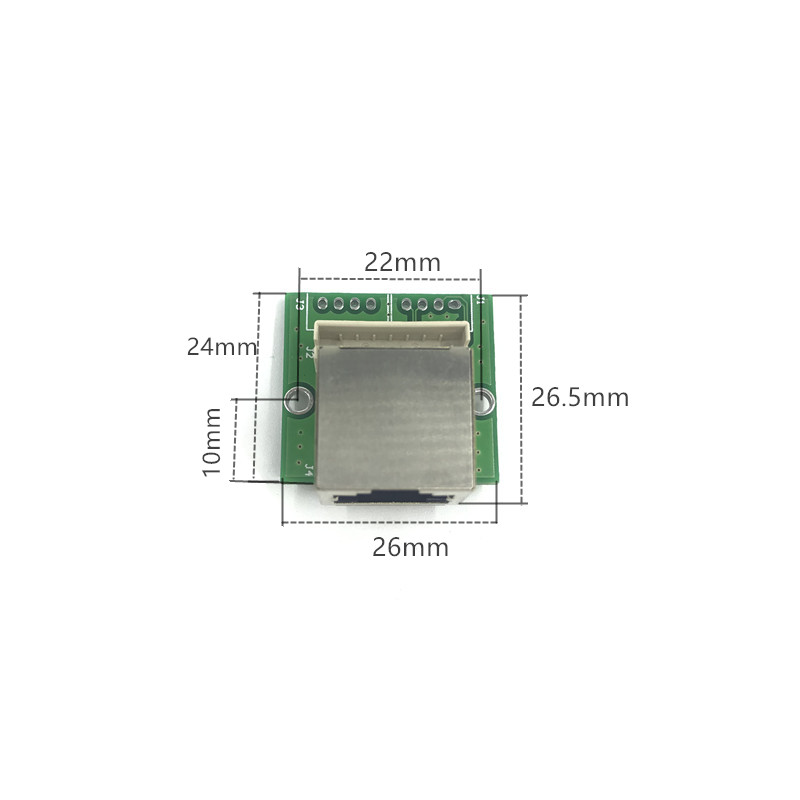

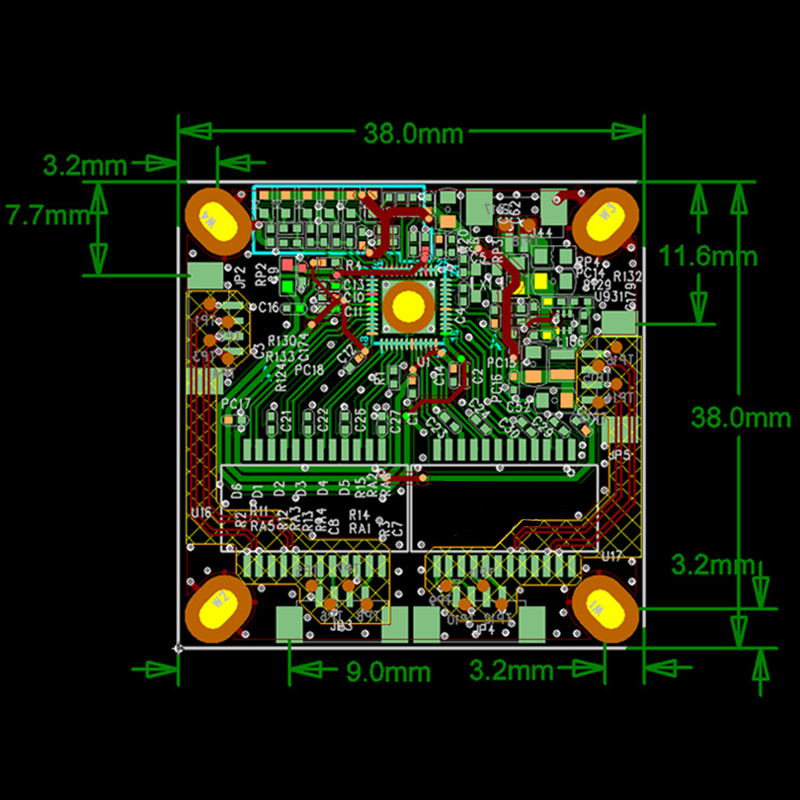

Size: 38 mm × 38 mm × 7 mm (length X width X height)
|
|
Packing list
|

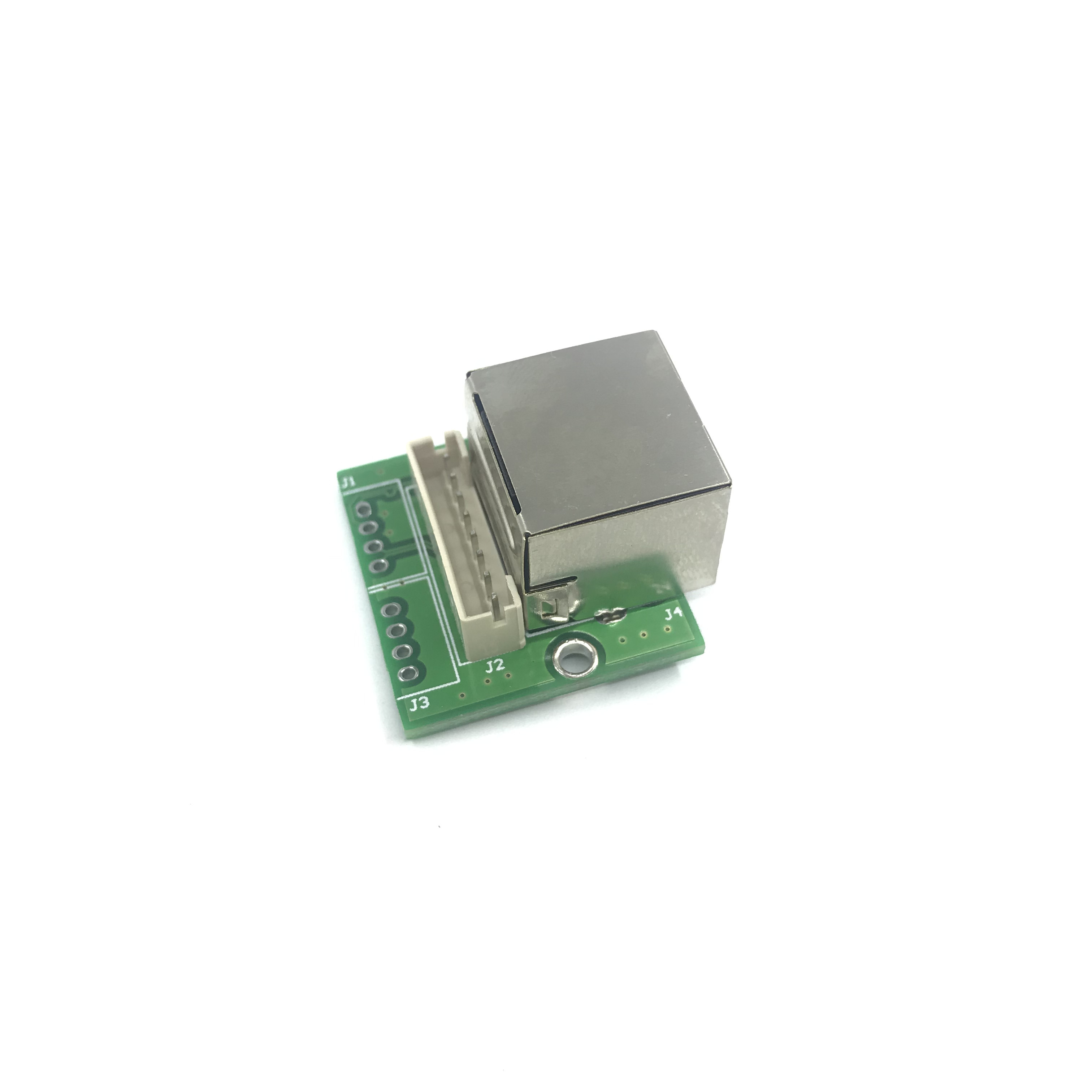

1* 4 port Switch core module
|
|
Warranty
|
2 years
|
This product is an embedded integrated module for conference room systems, education systems, security systems, industrial computers, robots, gateways, and so on.
Any Customized Product, Please Feel Free To Contact Us.
