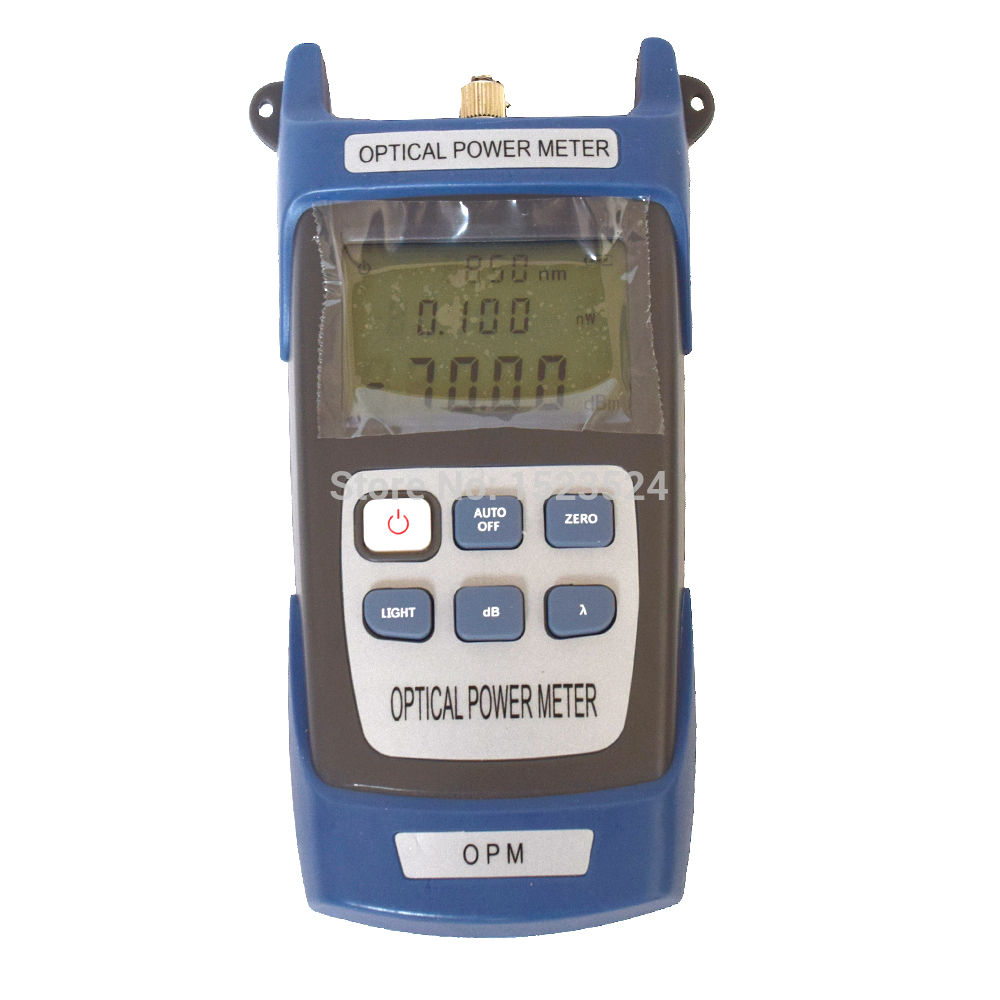

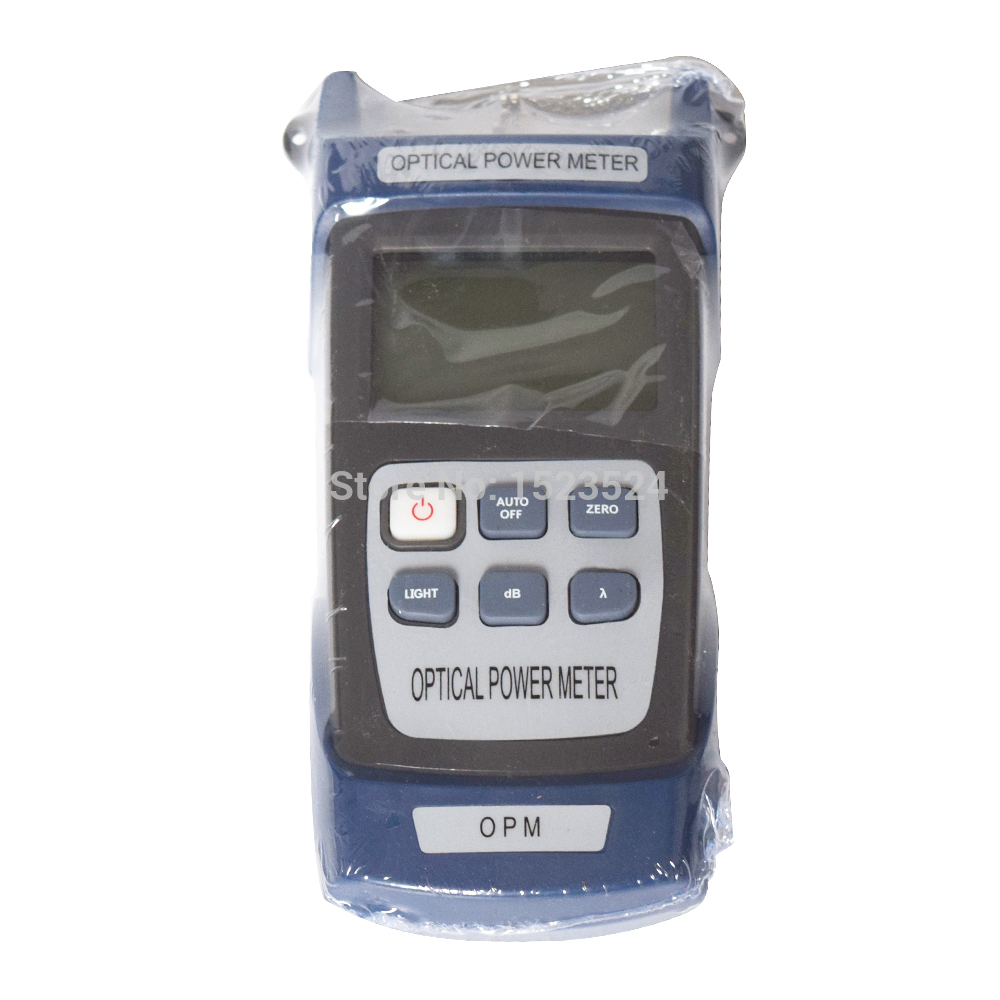

Free Shipping Fiber Optical Power Meter Fiber Optical Cable Tester -70~+10dBm or -50~+26dBm with FC SC Connector
This type of Handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.
Application
Telecom Maintenance
CCTV Maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project
Features
Supports 7 wavelength Testing
Auto-off function
with Backlight

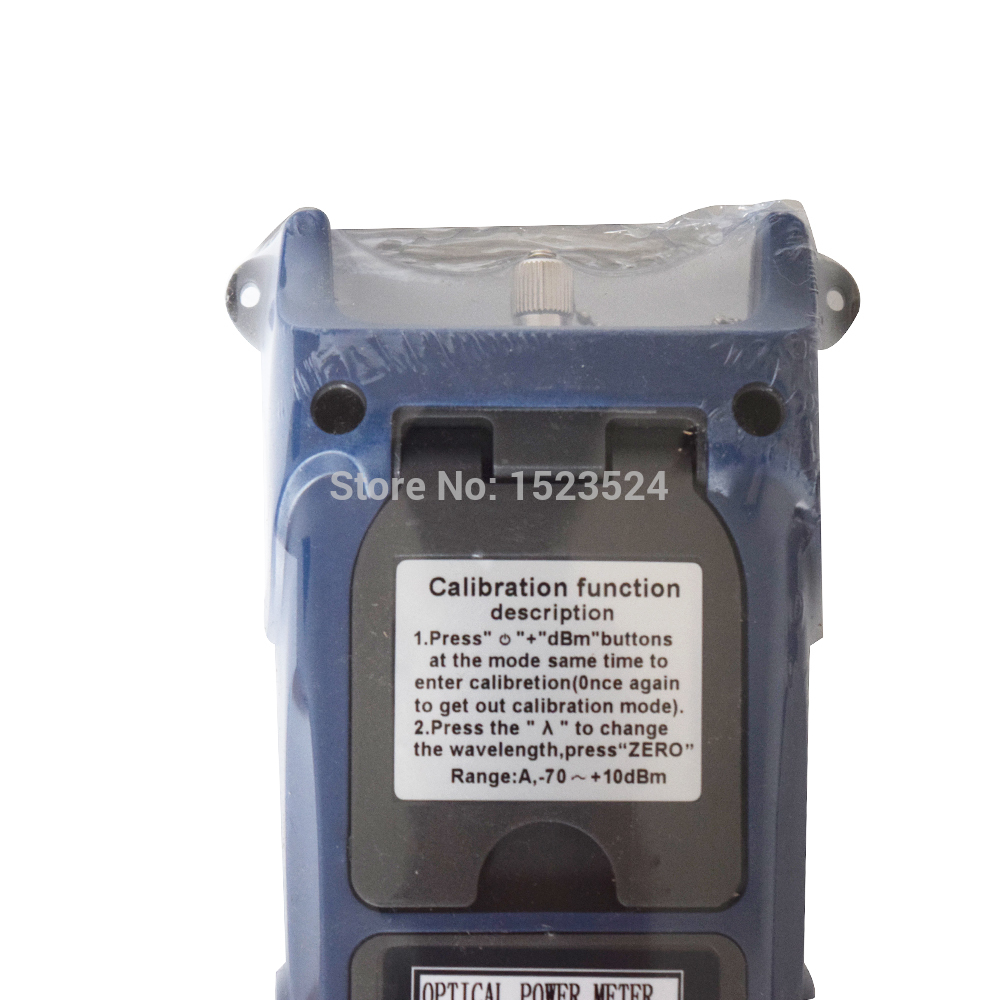

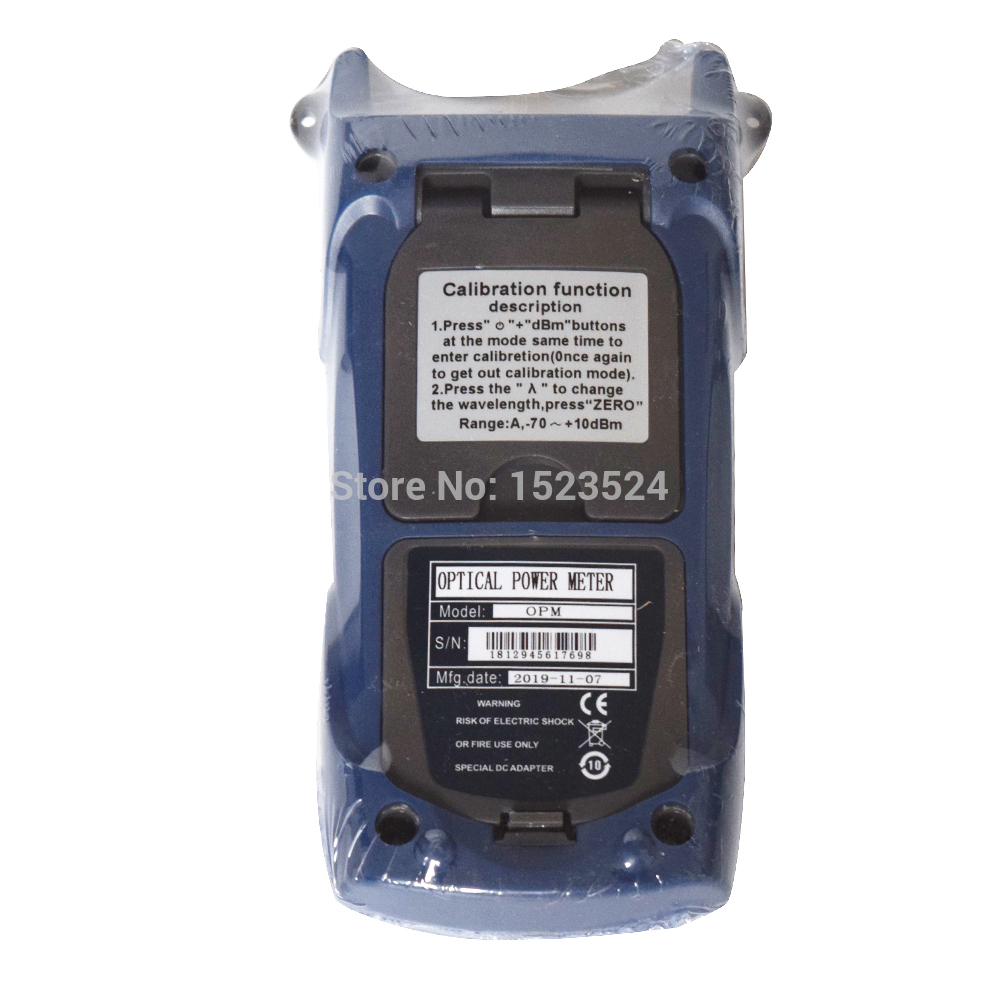

self calibration
48 hours super long standby time
support FC,SC Connector
working hour over 8 hours without charging
Specifications
|
|
|
Model
|
Optical Power Meter
|
|
Wavelength(nm)
|
(800nm to 1700nm )
|
|
Detector
|
InGaAs
|
|
Measurement Range (dBm)
|
-70~+10 or -50~+26
|
|
Uncertainty
|
±5%
|
|
Calibrated Wavelength(nm)
|
850,980,1300,1310,1490,1550.1625.1650
|
|
Resolution(dB)
|
Linear 0.1% or Non-linear 0.01dBm
|
|
Optical Connector
|
FC/SC as well as 2.5mm universal
|
|
Power Supply
|
Alkaline Battery(AA 1.5V batteries)
|
|
Battery Operating Time
|
48 hours
|
|
Operating Temperature(°C)
|
-10 ~ +60 °C
|
|
Storage Temperature(°C)
|
-25 ~ +70 °C
|
|
Relative Humidity
|
0 to 95% (non-condensing)
|
|
Dimension(mm)
|
190x100x48
|
|
Weight
|
400 g
|
|
|

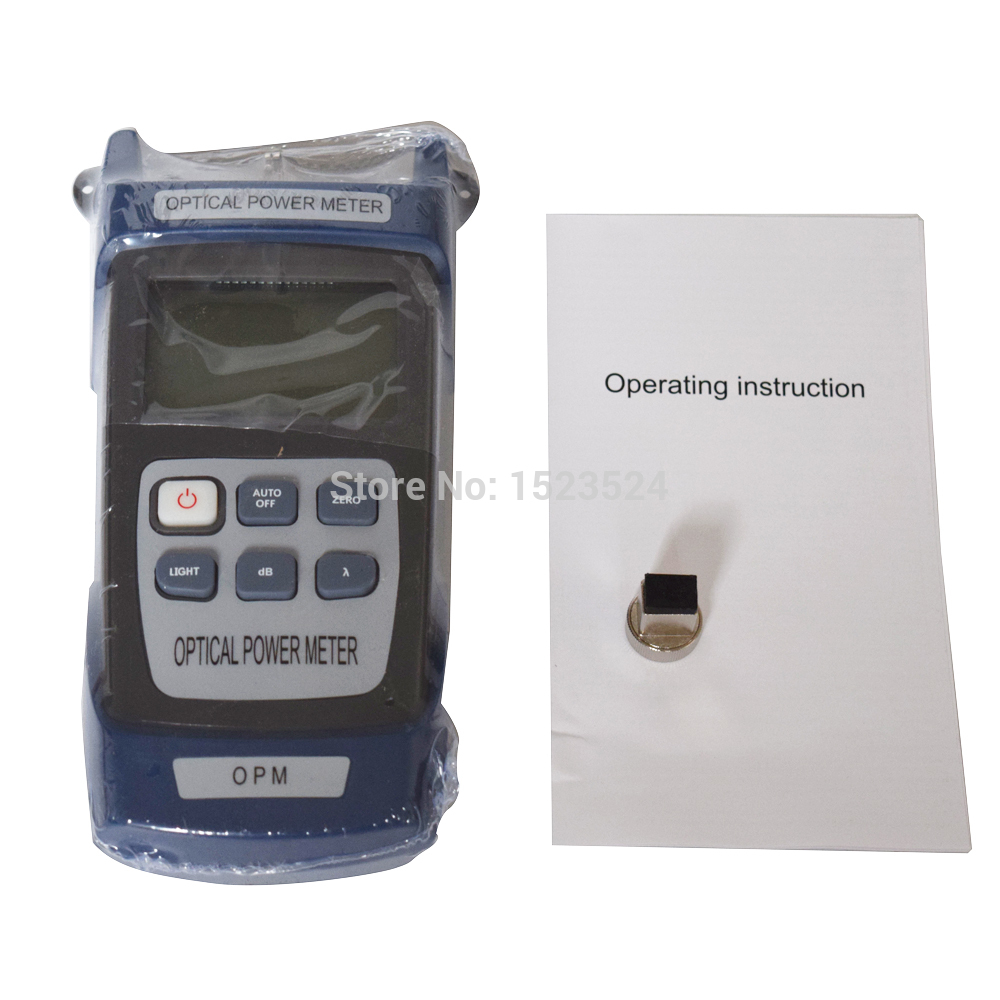

Package Includes:
Optical Power Meter (Battery not included)
