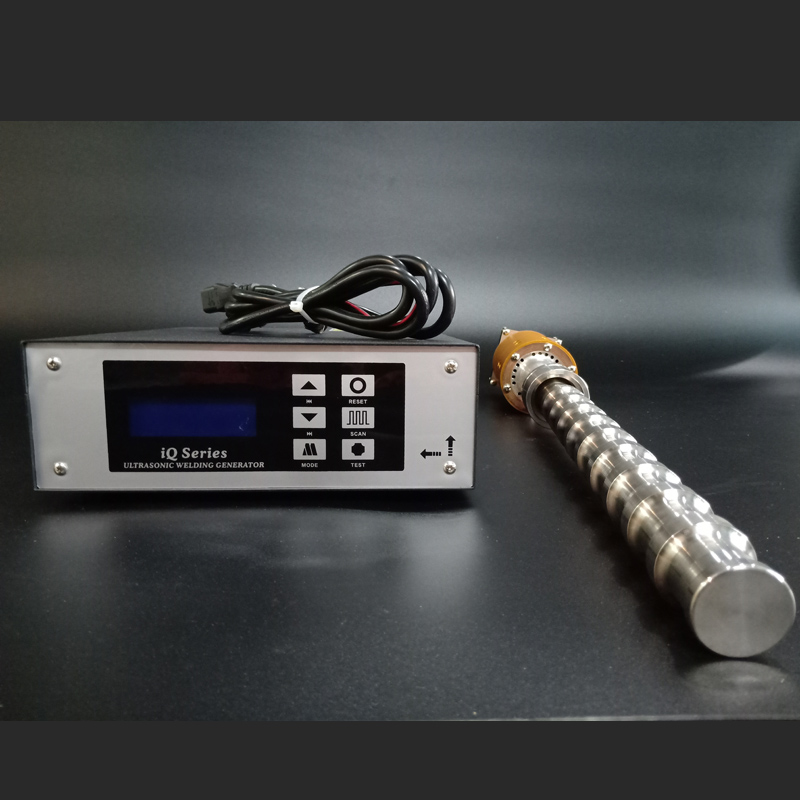

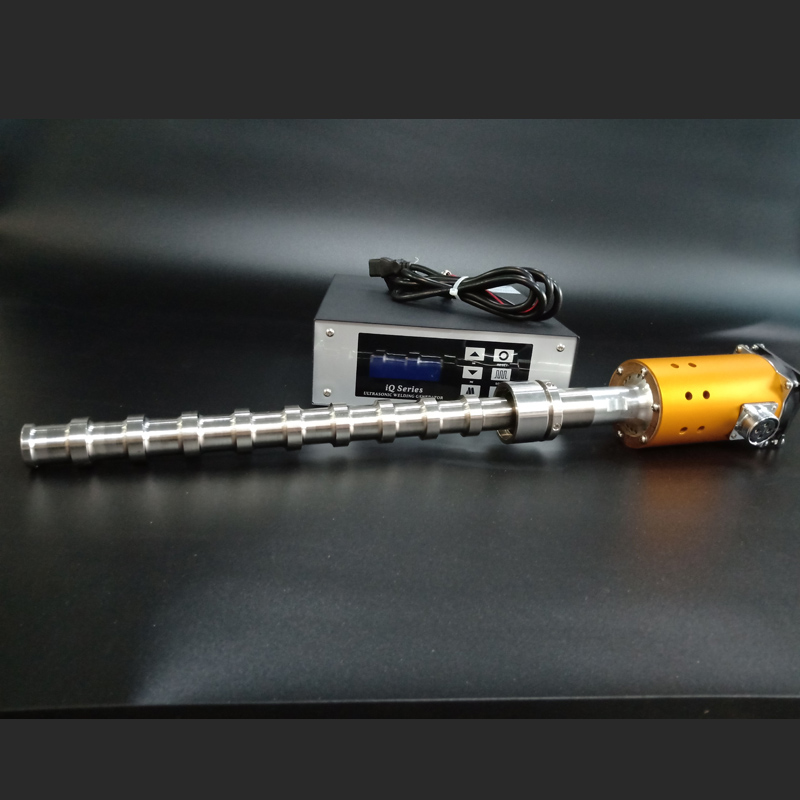

Ultrasonic reactor for biodiesel/Pipeline cleaning/Mixed
◊ cavitation is generated around the resonance rods, very uniform distribution of ultrasonic energy in the groove body, so as to achieve the best cleaning effect.
◊ ultrasound rod power output is not level, the capacity of the tank, and the temperature difference of the impact of load changes, the power output is stable and uniform.
◊ due to ultrasonic rods structural characteristics, its application range than the conventional ultrasonic vibration plate is broader, the most suitable vacuum pressure cleaning, is also applicable to a variety of chemical processes.
◊ conventional ultrasonic vibration plate has a life of more than 1.5 times.

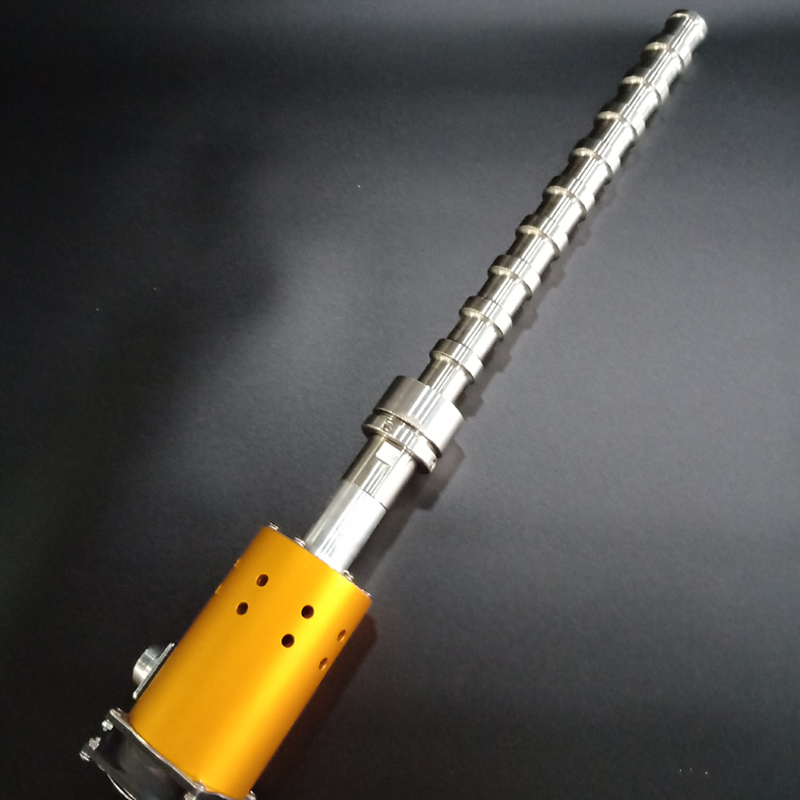

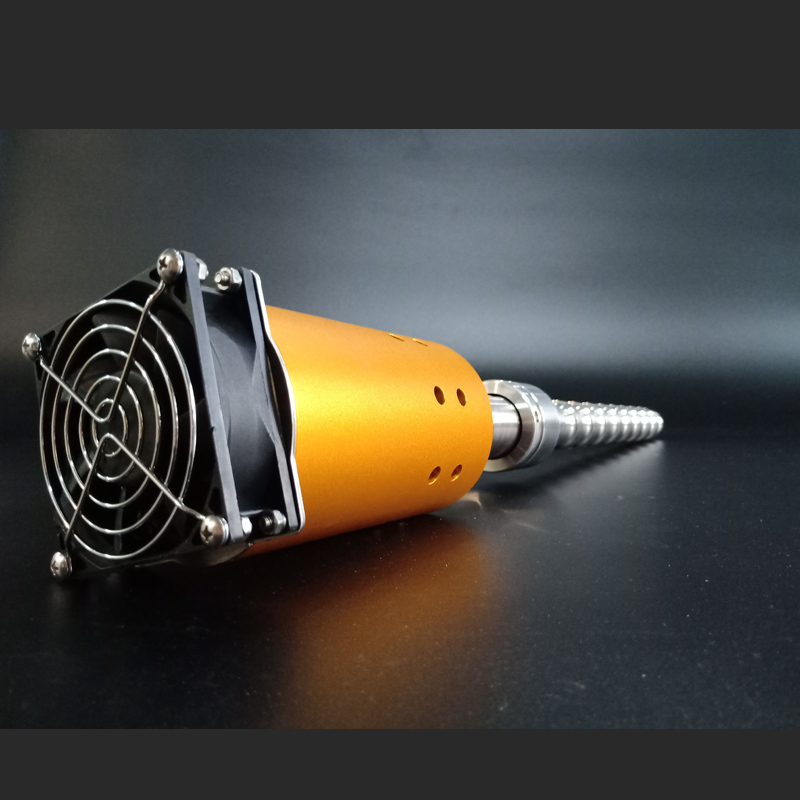

◊ tube type design vibration rods can be installed anywhere in the tank.
◊ guarantee a waterproof seal.
| Tubular Equipment Type | Tubular Transducer Type | Frequency (KHz) | Ultrasound Output(W) | Total Length (mm) | Diameter (mm) | Static Capacity (pF±10%) |
| UCE-UE1 | US-61 | 15-28 | 1000 | 500 | Φ50-55 | 68000 |
| UCE-UE5 | US-25 | 15-28 | 1500 | 850 | Φ50-55 | 68000 |
| UCE-UE6 | US-16 | 15-28 | 2000 | 1100 | Φ50-55 | 132000 |
Widely used in the traditional ultrasonic cleaning, biochemistry, food, chemical, pharmaceutical and other industries. Biochemistry, ultrasound rods can be applied to large-scale emulsification, separation, homogenization, extraction, catalytic reaction, increase productivity; the homogeneous uniform mixing in the food industry, ultrasound rods use played a role can not be underestimated; in chemical industry, ultrasound stick for pipes, tanks, a cauldron class cleaning. Biodiesel abandoned oil and palm oil refining process, the catalytic effect of ultrasound astonishing efficiency ten times, and and amazing promotion prospects in the petrochemical industry.
