CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable
  • CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable
  • CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable
  • CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable
  • CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable
  • CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable
  • In Stock
  • Ready to Ship
  • Fast Dispatch

CC Debugger CC2531 Zigbee CC2540 Sniffer Wireless Bluetooth 4.0 Dongle Capture Board USB Programmer Module Downloader Cable

  • $27.64
    5-9
    Pieces
  • $26.26
    10-19
    Pieces
  • $24.88
    20-49
    Pieces
  • $22.11
    ≥50
    Pieces
5 Piece/Pieces (Min. Order)
Quantity:

0 Piece,Product Price: US $ 0

  • Lead Time:/ days
  • Shipping time:/ days
  • Product Description
Overview
Product Attributes
Brand Name:
Igmopnrq
Origin:
Cn(Origin)
Condition:
New
Type:
Other
Application:
Other
Supply Voltage:
International Standard
Dissipation Power:
International Standard
is_customized:
Yes
Model Number:
Cc2531
Operating Temperature:
International Standard
Package:
Other
Brand Name:
IGMOPNRQ
Place of Origin:
CN
Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
40cm*30cm*20cm
Single gross weight:
1kg
Lead Time :
Quantity(Piece/Pieces) 1 ~ 1000>1000
Est. Time(days) 7To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

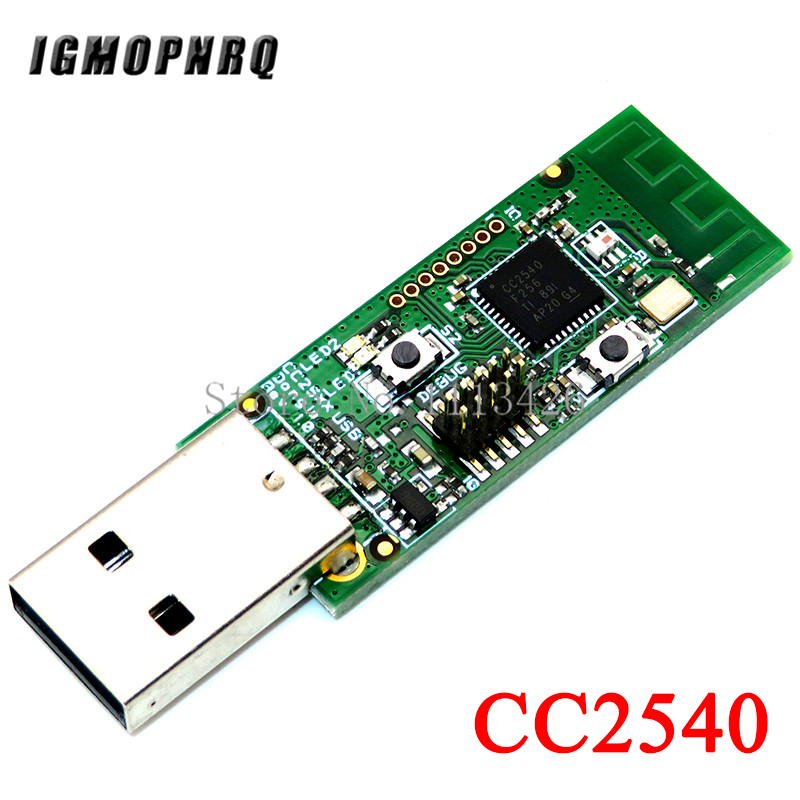

CC2540 zigbee CC2531

Product Introduction:
1.Size: 4.1*1.6cm

2.Board Thickness:1.6mm
3.Operating Frequency:2.405-2.485GHz
4.Wireless Transmission Speed Rate:250Kbaud
5.Power Consumption:<20mA (receiving);<25mA (transmission)


Features:
1.Lead Out 8 IO Ports
2.Debug Pin
3.Matching Firmware To Achieve Analyzer Function


Download Programming Connector Board Size :

Length:29.65mm
Width:27.46mm
Height:10.95mm





CC Debugger

The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips.
It can be used together with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging
And SmartRF Flash Programmer for flash programming.
The CC Debugger can also be used for controlling selected devices from SmartRF Studio.

Features:
1>. Contents in the box:
CC Debugger
Mini USB cable
10-pin flat cable with 2.54mm connector
2>. CC-Debugger can be used to program and debug the following 8051-based system-on-chips from Texas Instruments:
CC1110, CC1111
CC2430, CC2431
CC2510, CC2511
CC2530, CC2531, CC2533
CC2540, CC2541
CC2543, CC2544, CC2545
3>. It is possible to control the same devices from SmartRF Studio. In addition, CC-Debugger can control the following transceivers from SmartRF Studio:
CC1120, CC1121, CC1125, CC1175
CC1100, CC1101, CC110L, CC113L, CC115L
CC2500, CC2520
4>. It can also be used to program the PurePath Wireless devices:
CC8520, CC8521
CC8530, CC8531
5>. The CC Debugger works with IAR EW8051 version 7.51A or later





Package Included :

1 x CC2531 / CC2540 Sniffer Board
1 x Programmer Downloader Cable
1 X CC Debugger
