Features:
OOTDTY VU Meter:
Stable and reliable performance.
Easy to use.
Driver Board:
The fourth generation driver board, further sharpen the edge of the size.
The fourth generation of driver board drive board instead of perfect Toshiba 7318IC, improved drive 7318 2 disadvantages: small swing pointer plate; adjust small sensitivity.
Small space, easy to install.
Well done and durable.

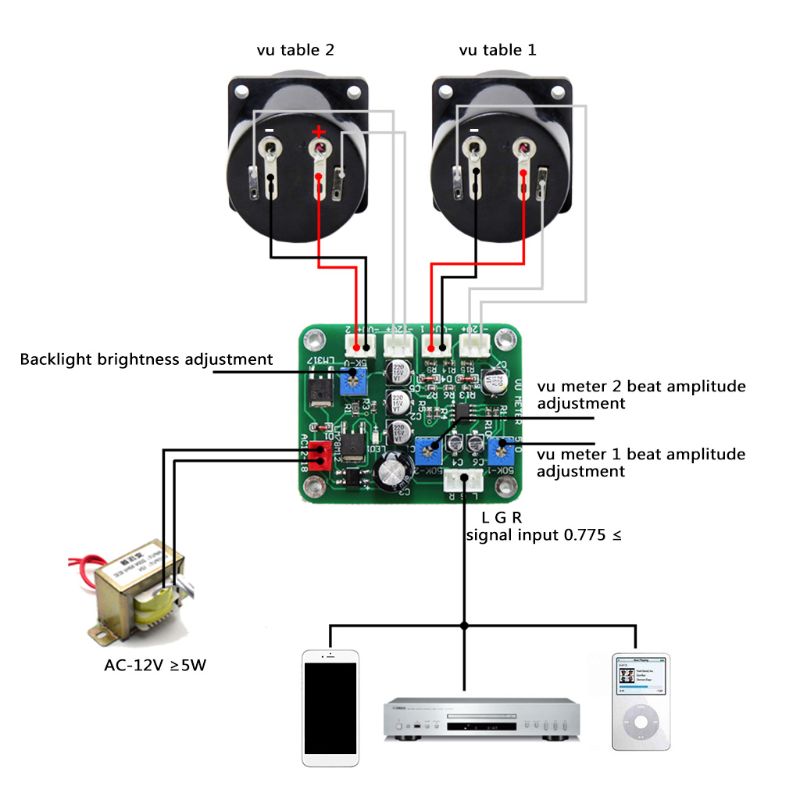

Instructions:
1. In AC/ DC 12-15V Power Supply for Transmission Plate. (recommended independent power transformer, or a separate winding power supply plate when not in use 45MA current backlight).
2. L, GND, R: This is the driver board The low-level signal input terminals for connections are players, computer sound cards, the first stage, and other source signal device, L, GND wiring , RW respectively: To the left, the right channel can be.
3. R1 and R2 are two adjustable resistors board driver can control the size of the swing hands.
4. The backlight DC12V power meter is used after the driver board backlight used for voltage regulator.
5. Note that the positive and negative head interfaces.
To extend bulb backlight life, you can use the following method:
1. Backlight brightness according to the conditions to meet the requirements to reduce the operating voltage, can be considerably longer lasting.
2. AC Power 10~12V, 10 Euro Series at 50 Euro Limiting Resistor, reducing the impact on the boot filament.
Specifications:
Material: Plastic+Metal
Color: Black
Backlight Voltage: AC/DC 6-12V
Measuring Range: 0-500UA±10%
Resistance: 650Ω±10%
Accuracy: ± 5%
Approved Location: Full-scale 500UA
VU Meter Size: Approx. 35x35x37mm/1.38x1.38x1.46"
Quantity: 1 Set
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
No Retail Package
Package Contents:
2 x VU Meter Panel
1 x Driver Board
5 x Cable
