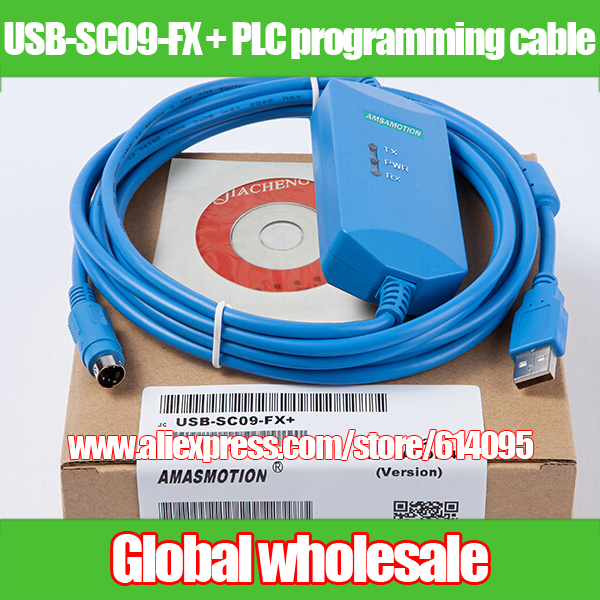

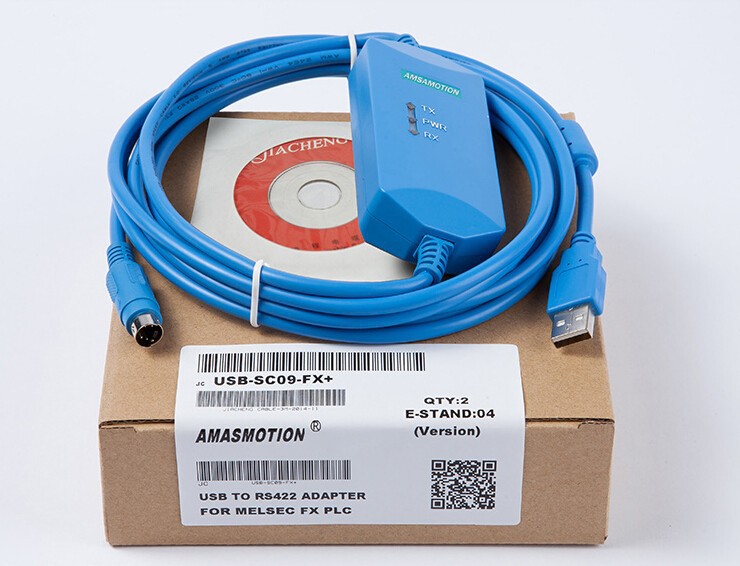

USB-SC09-FX + isolated via USB interface provides a serial connection and RS422 signal conversion optocoupler programming cable, under the control of the driver running on the computer, it will simulate the traditional serial computer's USB port, in order to use existing various programming software, communications software and monitoring software and other applications. Working power cable from the USB port and by the DC / DC isolated power supply, no longer on the converter box (TX- sent; PWR- power; RX- accepted) PLC port powered by the transceiver status LED indicates data.
USB-SC09-FX + isolated programming cable for Mitsubishi FX2N / FX1N / FX0 / FX0N / FX0S / FX1S / FX3U ...... and other programming port for the FX series PLC MD8F circular outlet.

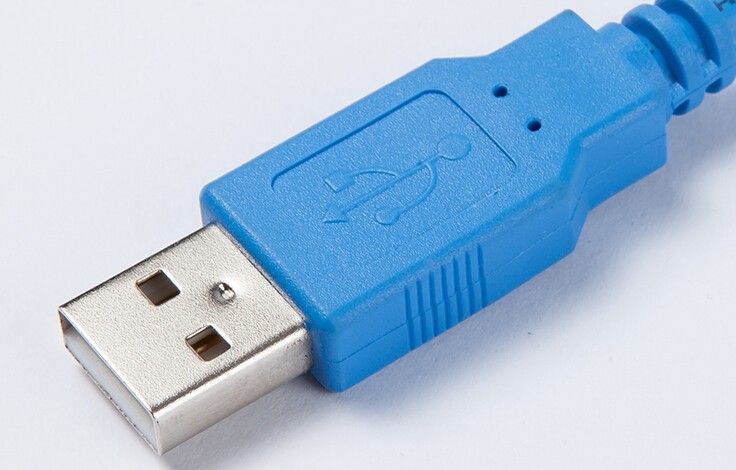

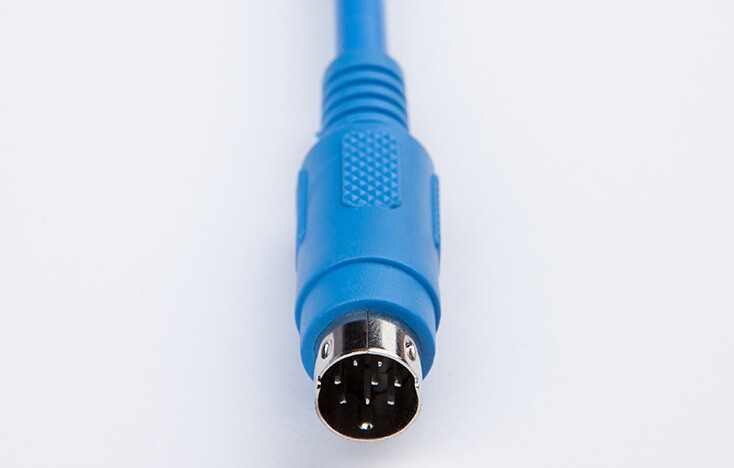

Interface: USB + Round 8-pin
Features and Specifications:
Support USB-SC09-FX + isolated operating system: WIN2000 / WINXP / WIN7 / WIN8.
Support USB-SC09-FX + Isolated programming software version: GX Works2 or GX Developer V7.0 and above
Complete speed USB V1.1 or 2.0.
USB bus-powered, the current consumption of about 70mA.
Baud Rate: 300bps ~ 1Mbps standard automatic baud rate adaptation.
Support UART data format: data bits: 5,6,7,8, stop bits: 1, 2 Parity: odd / even / no parity.
Cable length: 3 m.
Instructions:
After the driver installation is complete, USB-SC09-FX + isolated programming cable corresponding COM port in the Windows Device Manager, simply select the COM port in the programming software or other application software and keep other communication parameters The default setting, then use with traditional RS232 port programming cable are identical.
