12V 80AH Waterproof lithium battery
Remark:
We guarantee that the capacity of the battery is true!
The price includes express fee, tariff and so on, without any other expenses paid by the buyer.
We have lithium batteries, accept customized battery pack, we can't update all items here. If you want any others, please take it easy to contact with me and tell me your requirement (the capacity / voltage / size / discharge current ) , thanks!
Technical Parameters
Rated voltage 12V
Rated capacity: 80AH
1. Battery cell type: Ternary(LiCoMnNiO2, 3S) lithium battery
2. Weight: About 5 kg
3. Size: 280*235*125 mm
4. Nominal voltage: 11.1V
5. Operating voltage range: 8.7V~ 12.6V
6. Maximum charging current: 20A
7. Charging voltage: 12.6V
8. Continuous discharge current: ≤ 80A
9 Instantaneous discharge current: ≤ 160A
10. Service life: more than 1000 cycles
11. Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
12. Battery storage period: 90% power (6 months)
13. Battery warranty: 12 months (free warranty)

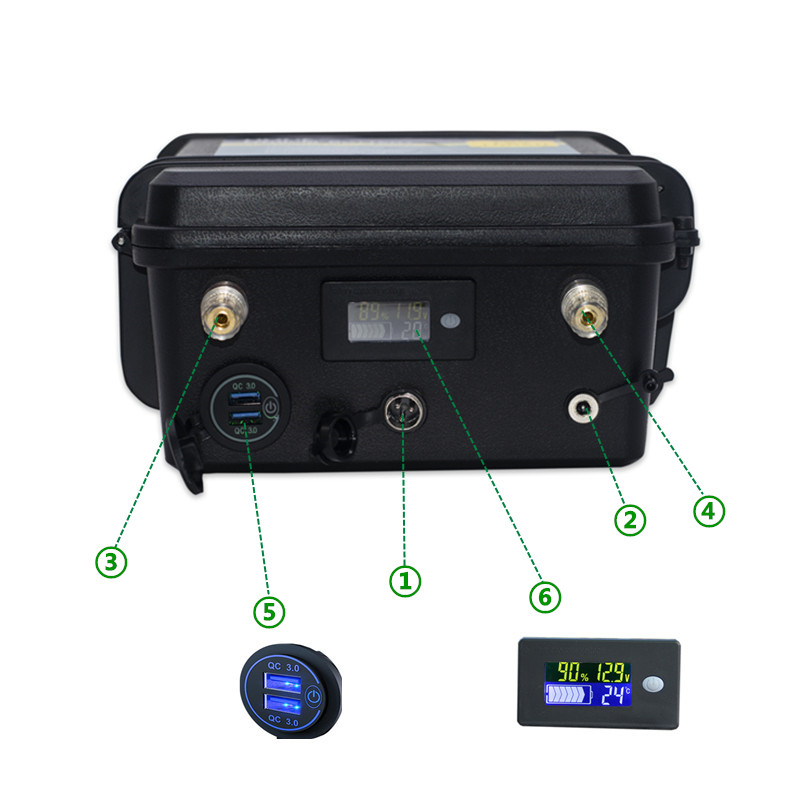

Interface Introduction
Note: all interfaces can be charged and discharged!
① Charging socket (GX16,3-pin airhead)
This interface is used by the charger to charge the battery, Its overcurrent is less than 12A.
② DC5.5*2.1 (Discharge/charge interface)
Its overcurrent is less than 10A, this interface is mainly used for low power load, such as LED lights, outdoor audio, etc.
③④ 8mm terminal (Discharge/charge interface)
Its overcurrent is less than 100A, It is used for loads with power below 1200W.
Suitable for connection with 8 mm diameter copper nose
It can also be used for charging.
⑤ USB charging interface (QC3.0)
This interface can charge mobile phone and other electronic devices, and support QC3.0 fast charging.
⑥ Battery power and voltage display
Display battery voltage, charge, temperature
Note: the data displayed during charging and discharging is not accurate. Please use it when the battery is still.
Including 10A charger
10A charger with European standard or American standard or the British standard or Australia standard plug (according to buyer's national standards).
1. Charging voltage: 12.6V
2. Charging current: 10A
3. Input voltage: 100v-240v
4. Charging time: about 10 hours
NOTE: The red indicator light indicates that the charging is in progress, and the green indicator light indicates that the charging is completed.
Application:
*****Attention!!!
Please select the appropriate battery according to the voltage requirements of the connected equipment load. The working voltage range of the battery is 8.7v-12.6v, and the rated voltage is 11.1v. It is not suitable for 12V automobile refrigerator, automotive electronic and electrical products. In addition, there are some boat propellers (these load devices are designed according to the voltage range of lead-acid battery (12-14.5v))
Boat propeller battery, Camper/scooter, golf trolley/carts, power tools...
Inverter, Solar and wind power system, RV, caravan...
Back-up system and UPS...
Torch LED light emergency light.
Lithium battery type（Cell Type）
Adopts large single high power Ternary lithium battery (LiCoMnNiO2, 3S) lithium battery. The current output is more stable and stronger.
LiCoMnNiO2 lithium battery is the most commonly used lithium battery in the world. It has the advantages of high energy density, small size and light weight.
Built-in BMS
Built-in BMS battery management system, functions:
1. over charge protection. 2. over current protection. 3. over voltage protection
4. discharge protection. 5. short circuit protection. 6. over power protection.
7. temperature protection.
Better service
Contact the seller, know more products information.
Capacity and output interface can be customized.
