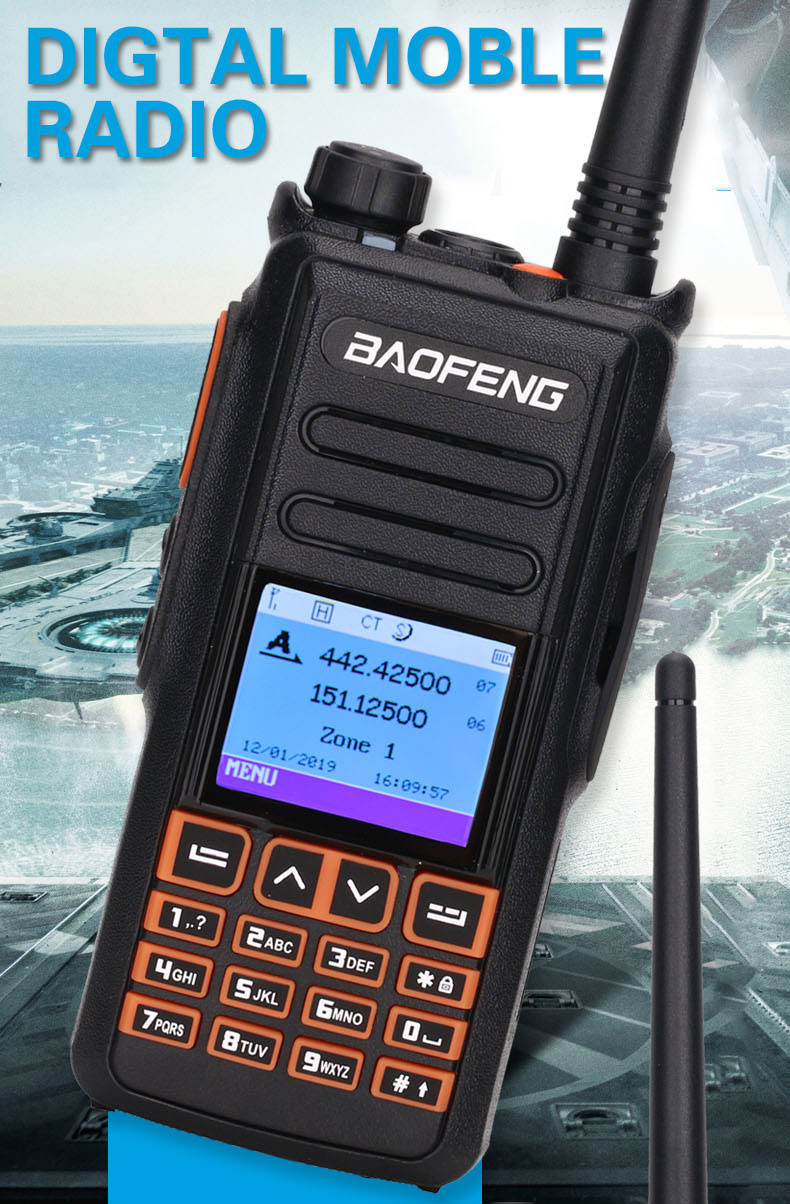

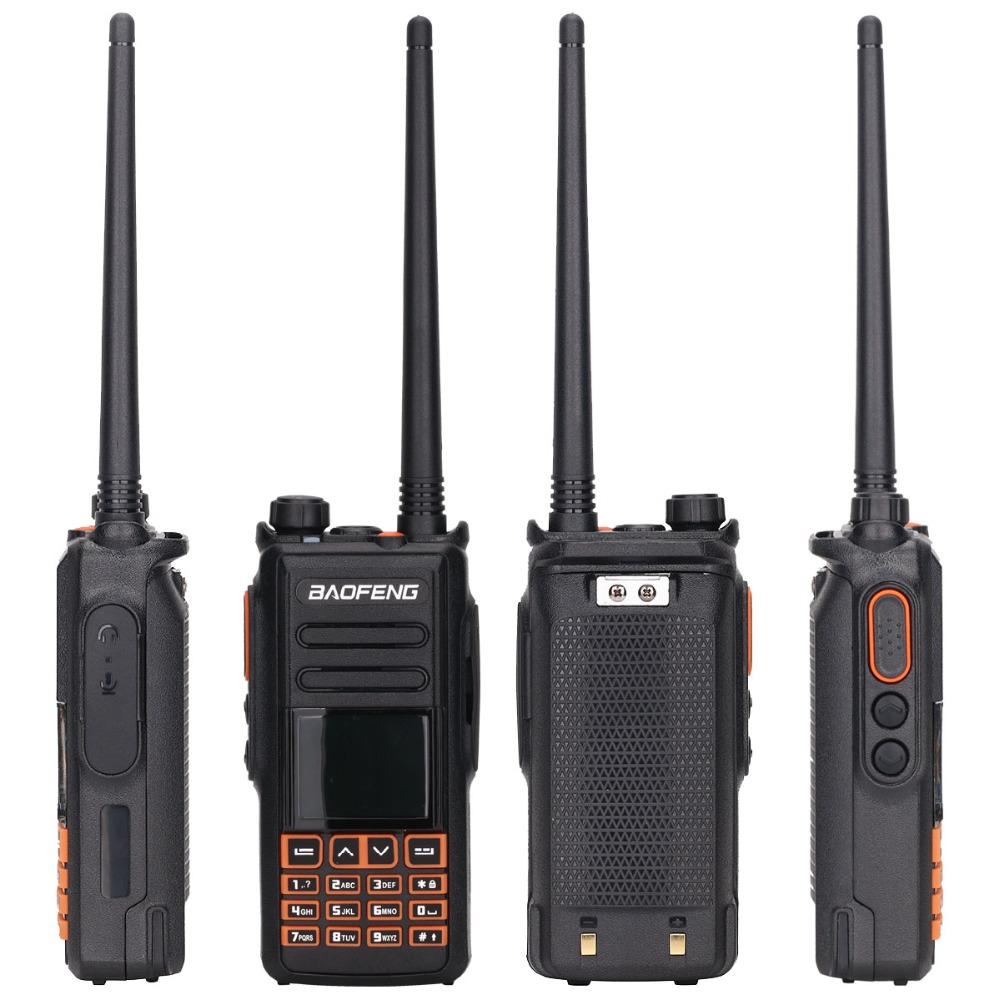

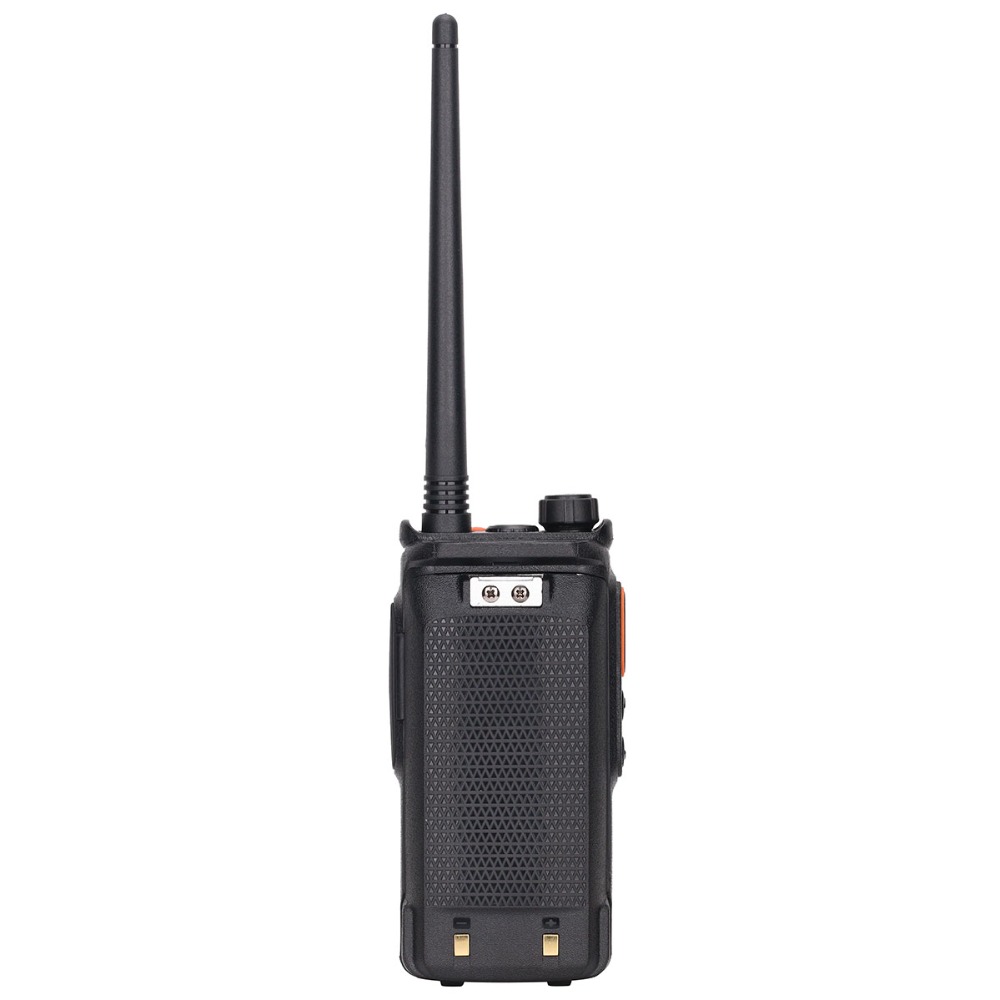

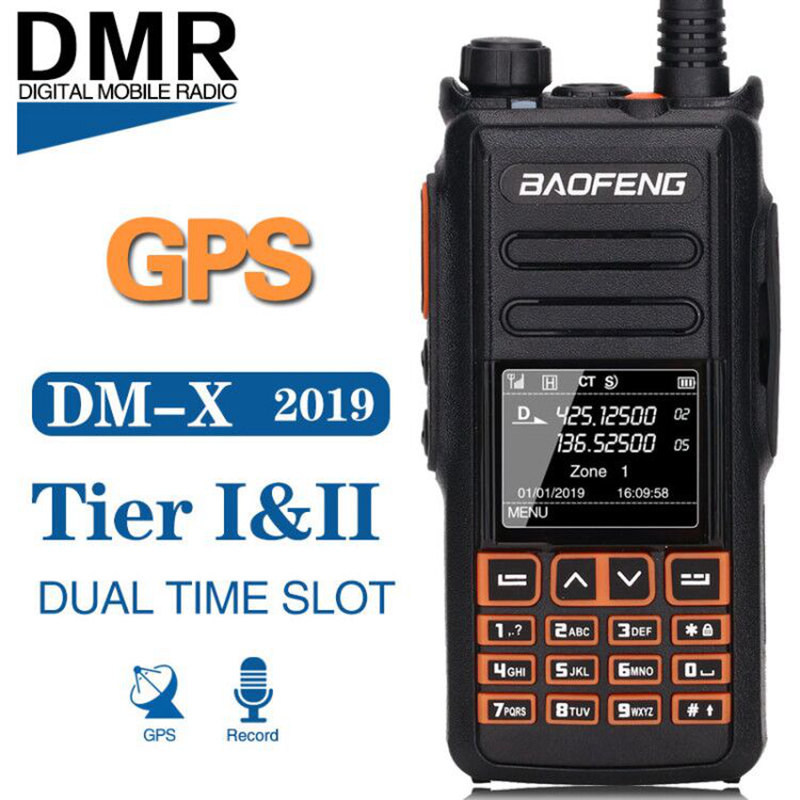

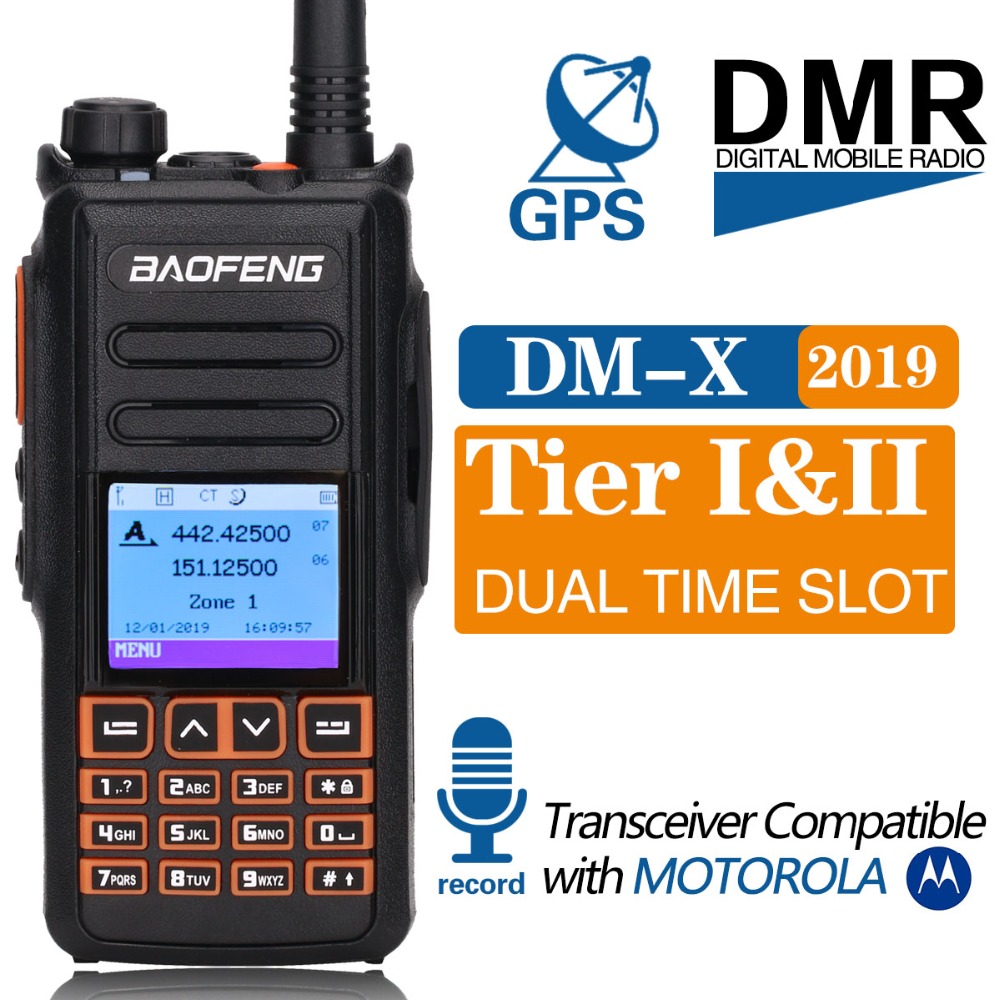

Baofeng DM-X is Baofeng 2019 Newest arrival digital walkie talkie,is a Dual Band, DMO TRUE Dual Time Slot, Tier I & Tier II compliant DMR radio Enjoy crystal clear audio quality with DMR technology.

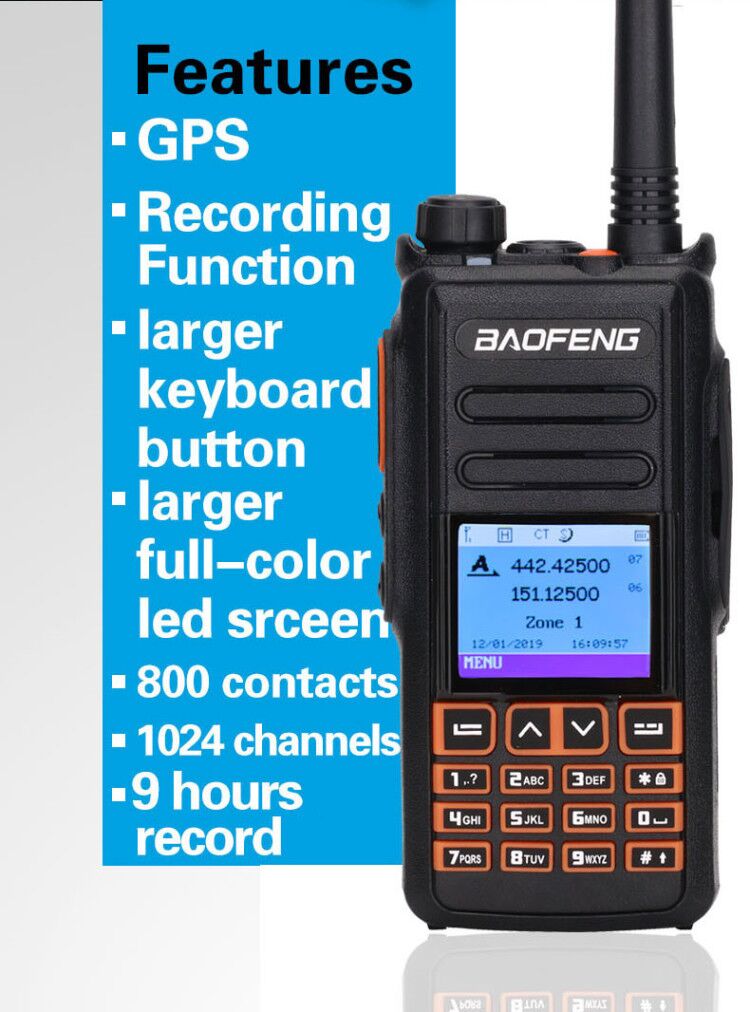

Product Features：
1.GPS Function:Support longitude & latitude position.
2.Voice Record function: Built-in 1G memory card to record TX & RX voice continuously for 9 hours

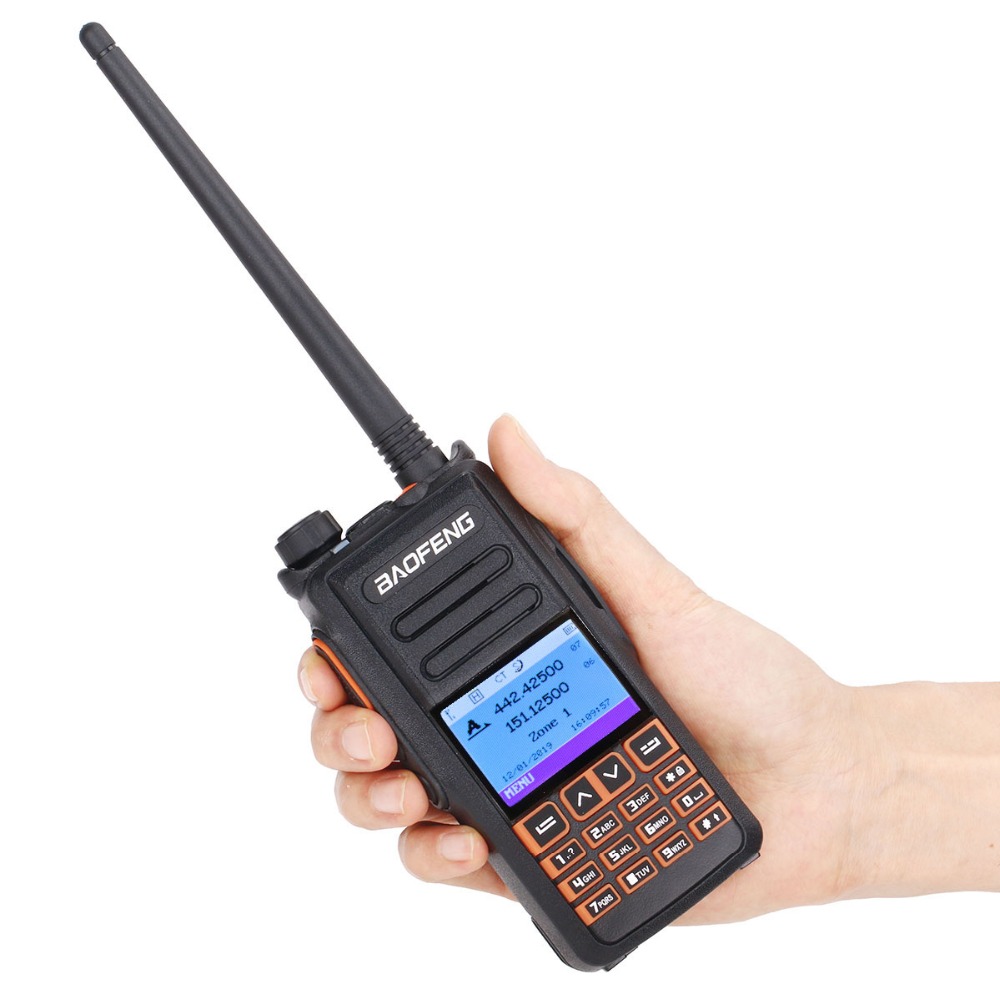

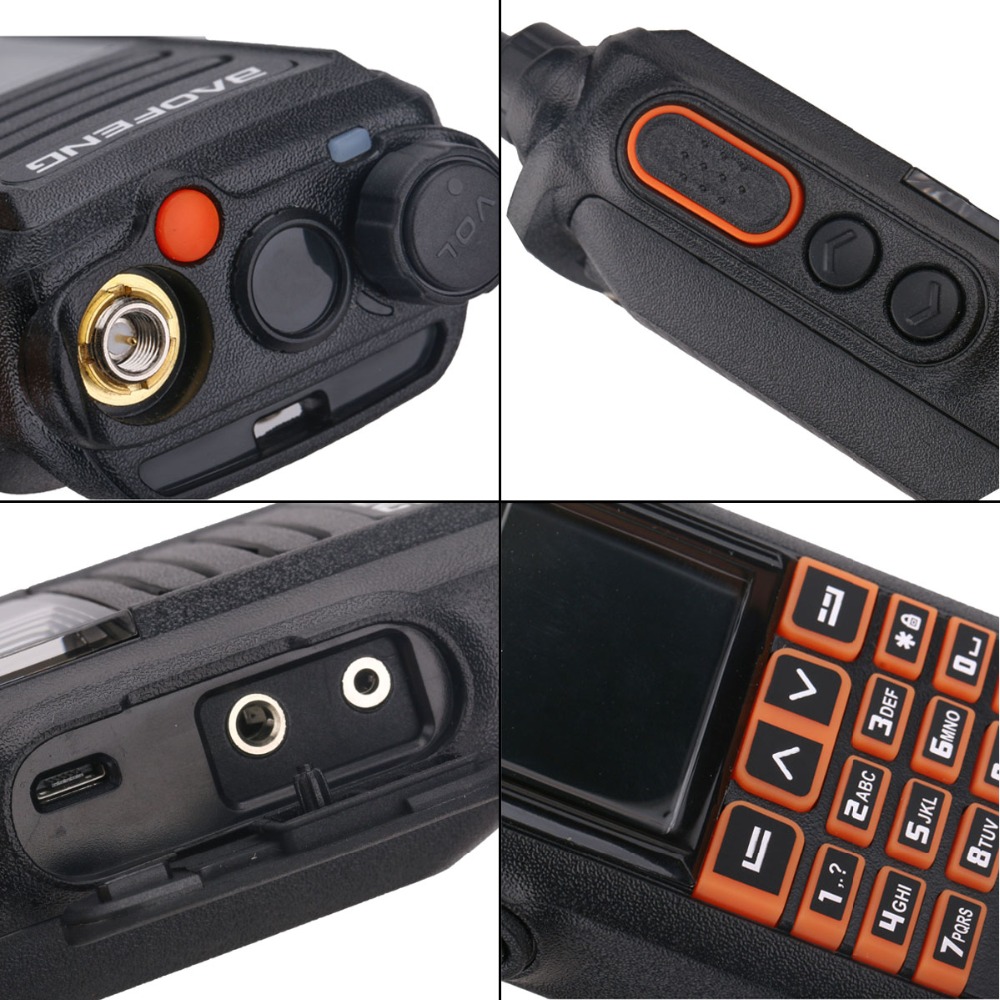

3.Larger keyboard button than dm-860 dm-5r dm-1701 dm-1702,so that you can Easy to operate by your finger.
4.Larger full-Color Led Screen
4.Dual Band VHF 137-174MHz & UHF 400-480MHz
5.SMS fuction
Supports SMS ,text editing and draft in 64 characters in englsih,so that the text message calls can be sent when voice call is inconvenient.
6.High sound quality
7.Manual writing -frequency
8.High/Low power mode

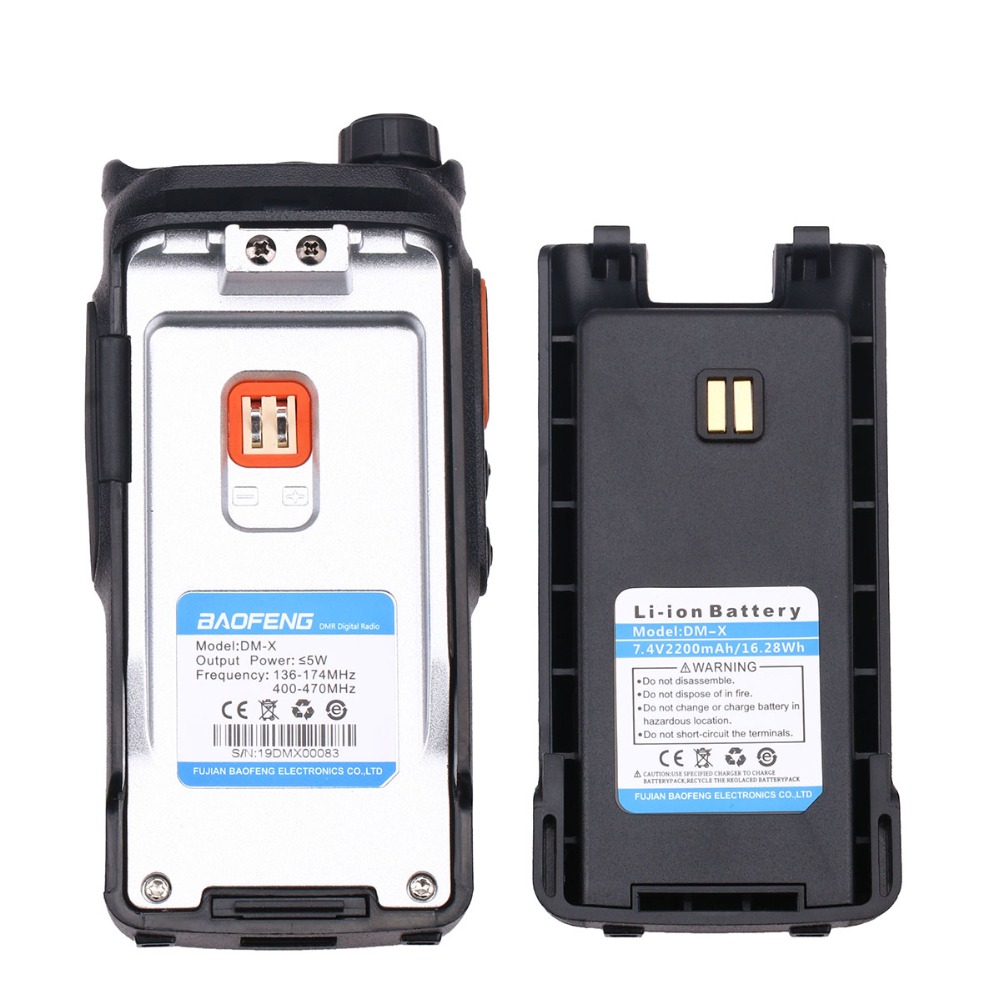

9.Larger Capacity Li-ion Battery Equipped with a 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time. It lasts 30% longer than the other DMR radio. DM-X is light weight and handy, perfect for long QSO’s.
10.More keypad operations Channel names, TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their favorite functions.
11.Talking Range
The talking range of Baofeng DM-X can be as far as 5KM (3 Miles) under the visible range. There are other factors that affect the talking range of a two-way radio. such as weather, exact frequency used, and obstructions etc.

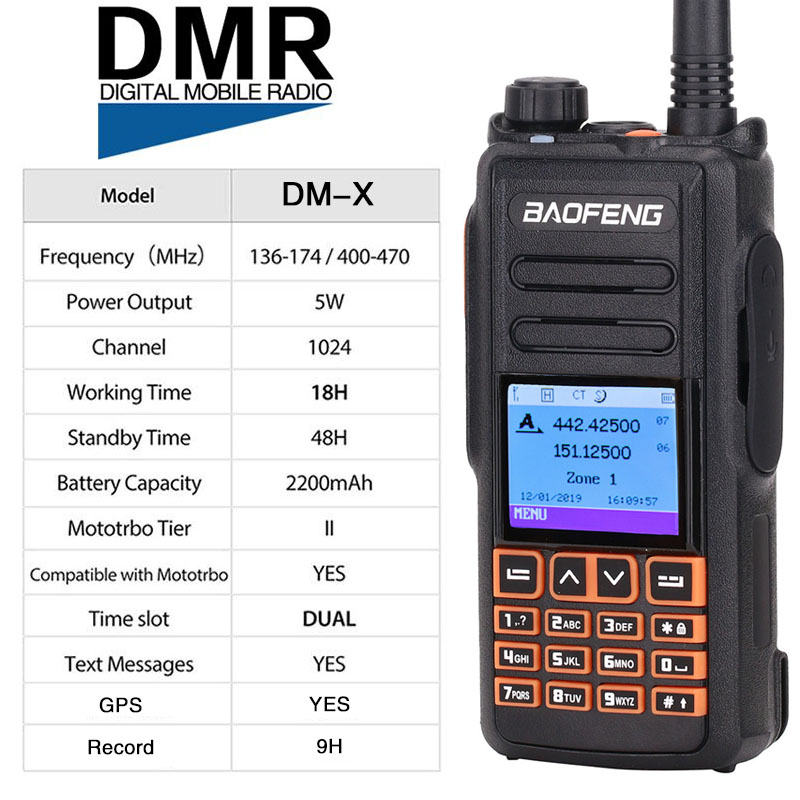

Specifications:
|
General
|
|
Frequency Range
|
VHF:136-174MHz, UHF:400-470MHz (Dual Band)
|
|
Memory Channel
|
1024
|
|
Operating Voltage
|
DC 7.4V
|
|
Frequency stability
|
±1.0ppm
|
|
Demission
|
136*62*36mm (no including the antenna)
|
|
Operating environment
|
-30℃-+60℃
|
|
Weight
|
Approach.274g(including the battery and antenna)
|
|
Transmitter
|
|
Output power
|
High:5W Low:1W
|
|
Adjacent channel power
|
≤65dB ≤60dB
|
|
Output consumption
|
Analog≤1.6A Digital≤0.9A
|
|
Audio response
|
+1~3dB
|
|
Standby current consumption
|
≤0.18A
|
|
Digital Protocol
|
ETSI-TS102 361-1,-2,-3
|
|
Modulation distortion
|
≤5%
|
|
Vocoder type
|
AMBE+2 TM
|
|
FM/FM modulation:
|
16K￠F3E,25KHz 141K￠F3E,20KHz 11K￠F3E,12.5KHz
|
|
4FSK/4FSK digital modulation
|
12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
|
|
Signal-to-noise(wide/narrow)
|
≥45dB,25KHz ≥40dB,12.5KHz
|
|
Antenna Port Spurious
|
9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm
|
|
Receiver
|
|
Analog receive sensitivity
|
-122dBm (12dB SINAD)
|
|
Digital receive sensitivity
|
-122dBm (BER≤5%)
|
|
Audio power
|
1W
|
|
Audio distortion
|
<10%
|
|
Signal imitation
|
≥70dB
|
|
Audio response
|
+1~3dB
|
|
Receive current
|
≤380mA
|
|
Intermediation(wide/narrow)
|
≥62dB/≥58dB
|
|
Adjacent channel selectivity
|
≥65dB/≥60dB
|
|
PM noise
|
≥45dB,25KHz / ≥40dB,12.5KHz
|

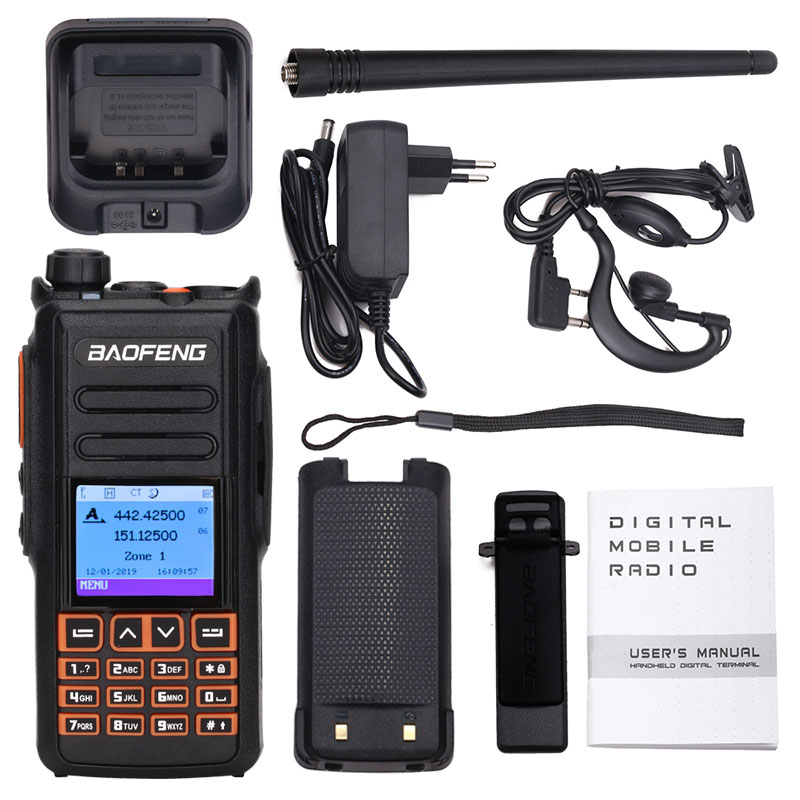

Package Contain:
1× BAOFENG DM-X
1× 2200mAh Li-ion Battery Pack

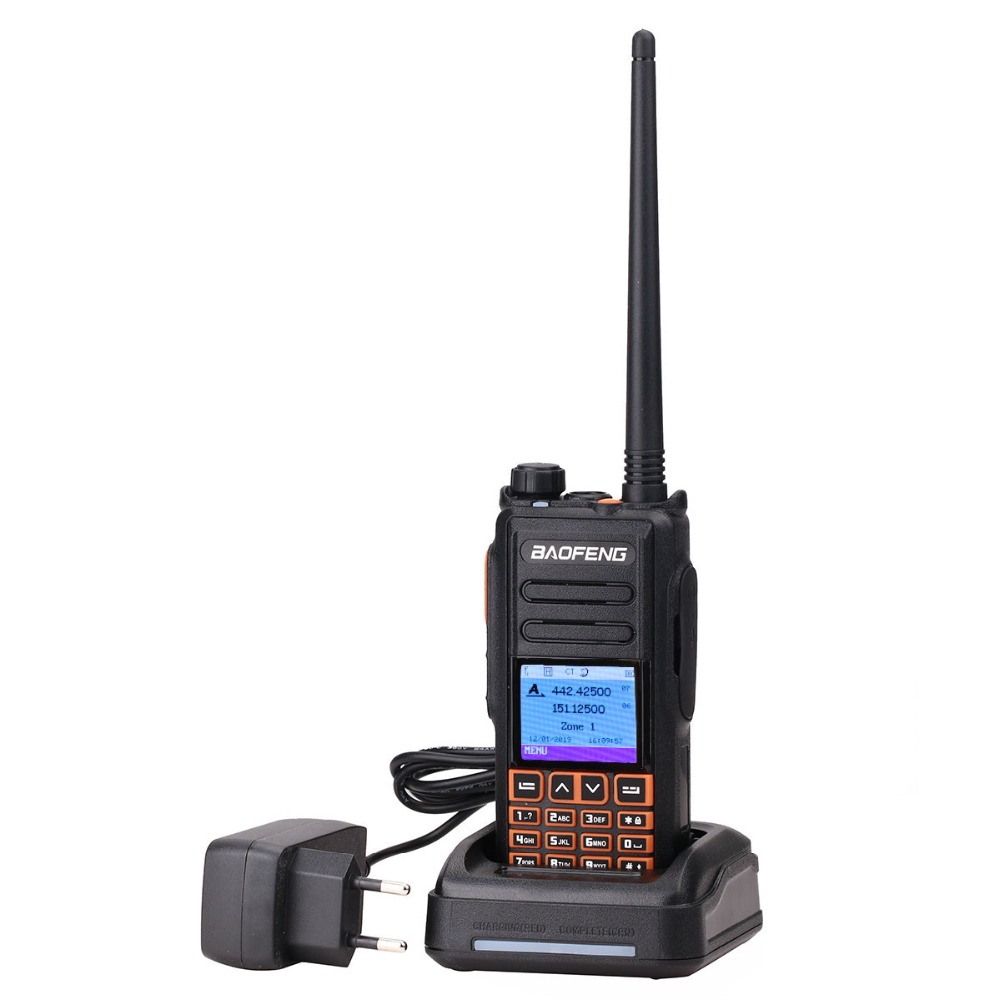

1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
(And other accessory depend on your choice in the link)
