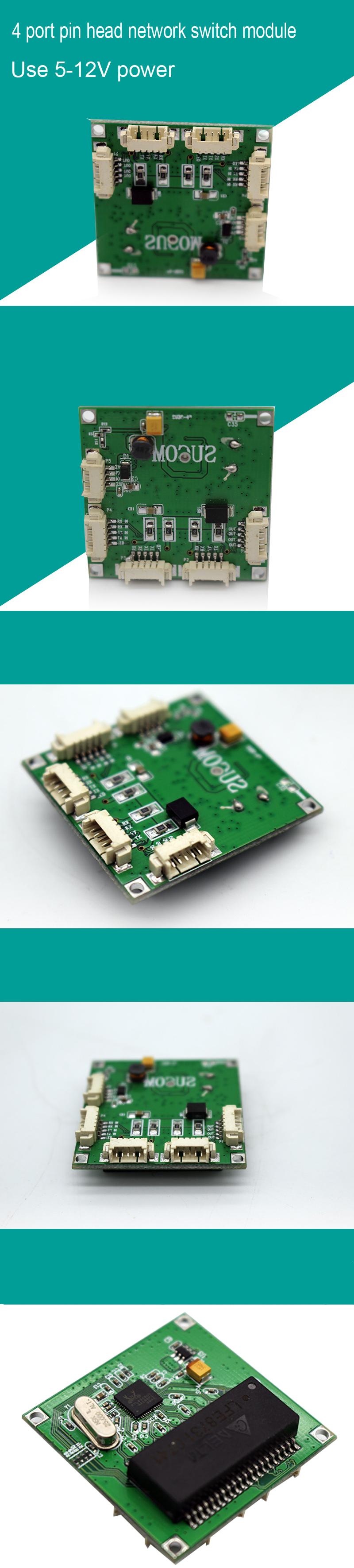

The switch module widely use network cabling and cabling distance extend of the network cabling boxes, multimedia cabling boxes and other
Complies with IEEE 802.3 and IEEE 802.3u standards
it is available for mulitmedia cabinet
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging

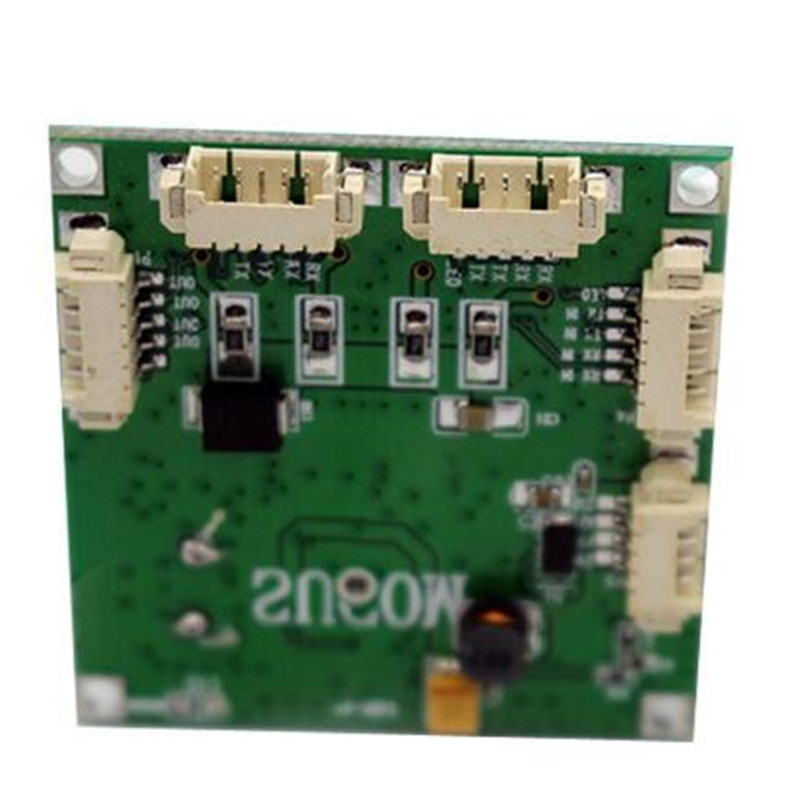

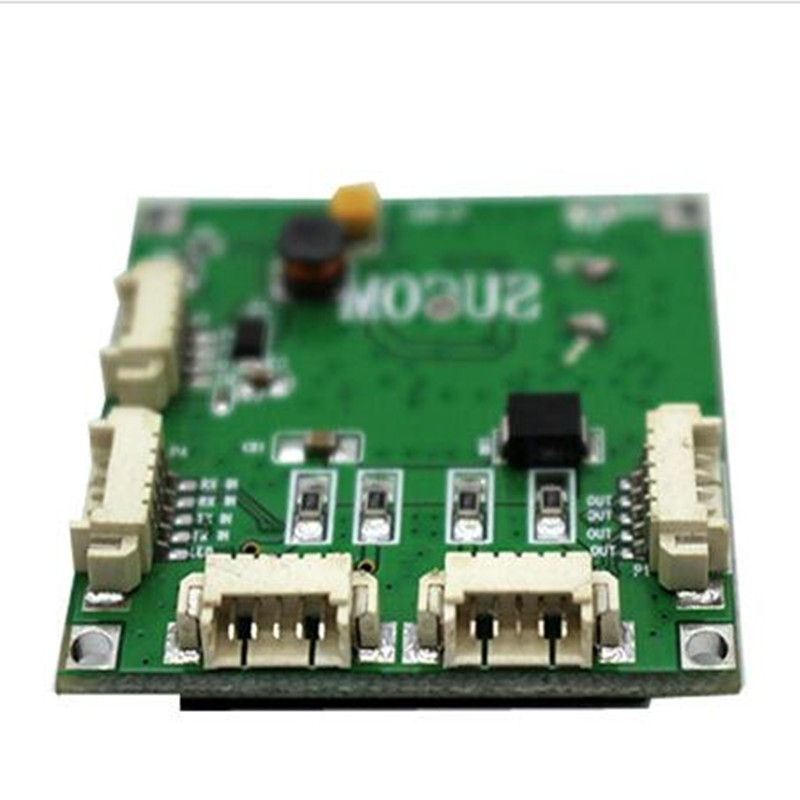

LED indicators for monitoring power, link/activity

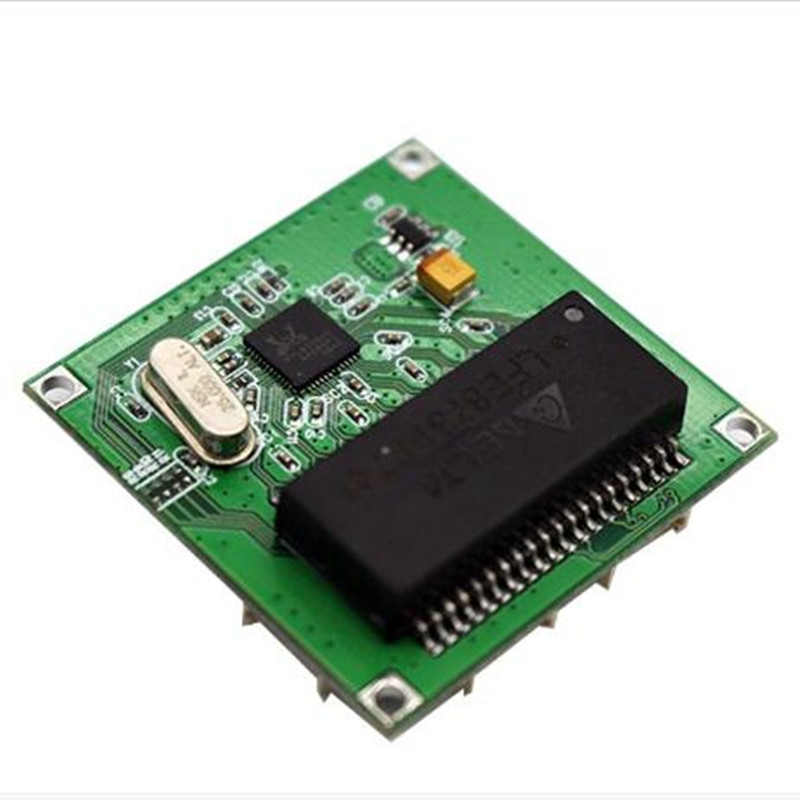

Mini cabling size design, PCBA size: 38*38mm

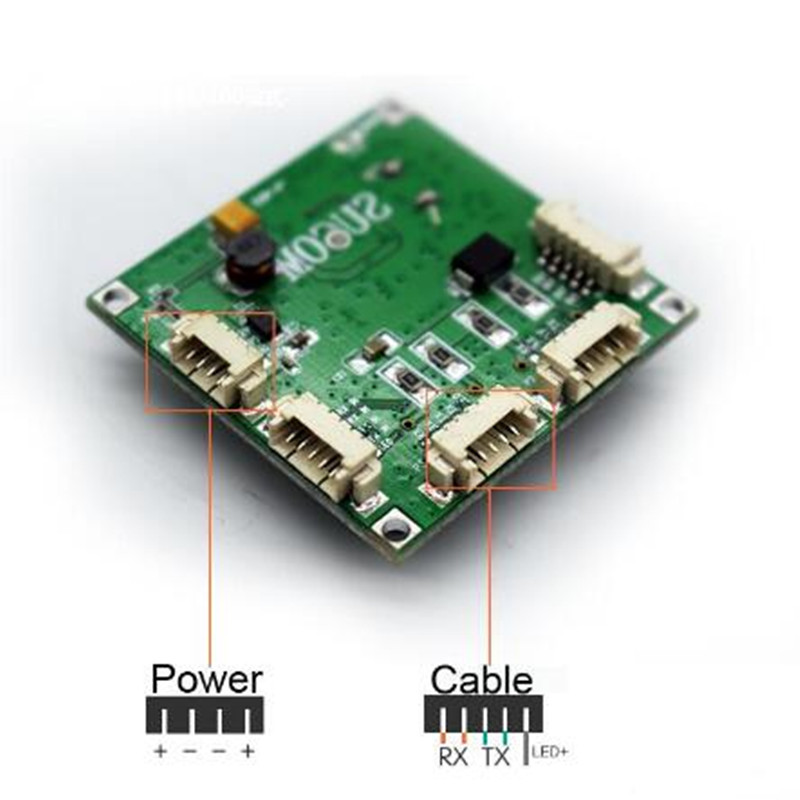

External supply power adapter 5-12V
Product pass CE and ROHS Certification
OEM/ODM, Professional custom Ethernet switch module
| Network protocol | IEEE802.3 10Base-T, IEEE802.3 10Base-TX |
| Ports | 4 10/100Mbps Auto-Negotiation ports |
| Network Media(Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m),100Base-Tx: UTP category 5, 5e cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m) |
| Swiching capacity | 1G |
| LED Indicators | 100Mbps Link/Act |
| Transfer Method | Store-and-Forward |
| MAC Address Learning | Automatically learning, automatically Update |
| Frame Filtering and Forward Rate | 10Mbps: 14880pps, 100Mbps: 148800pps |

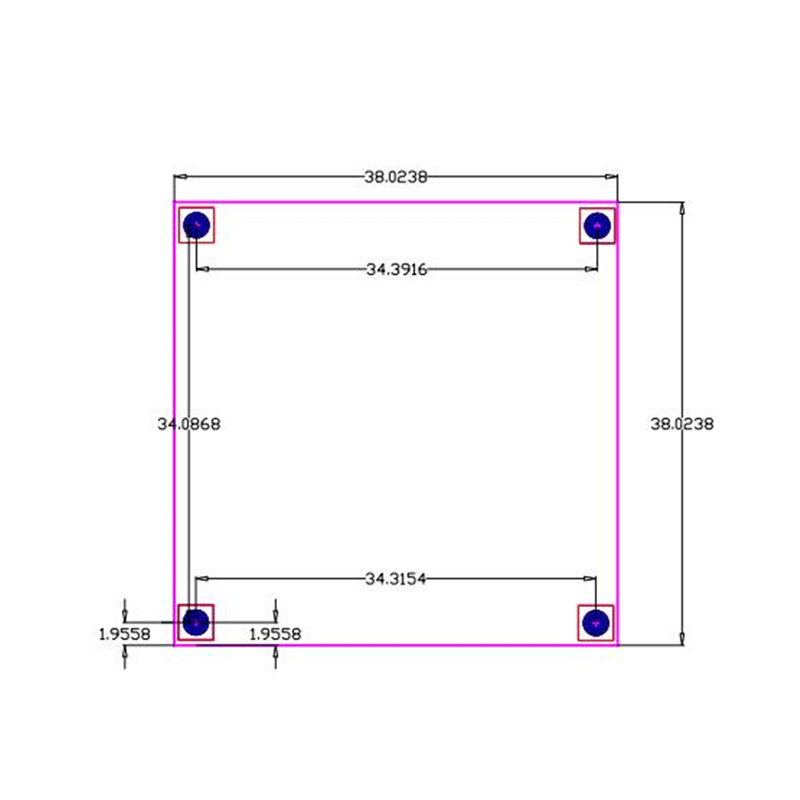

| Dimension |
38*38MM
|
| Environment | Operating Temperature: 0°C~40°C(32 F~104 F),
Storage Temperature: -40°C~70°C(-40 F~158 F),
Operating Humidity: 10%~90% non-condensing,
Storage humidity: 5%~90% non-condensing |
Support Windows/MAC OS/Netware/Linux operating system
OEM/ODM Can be customized products according to customer
All product pass CE and RoHS Certification
