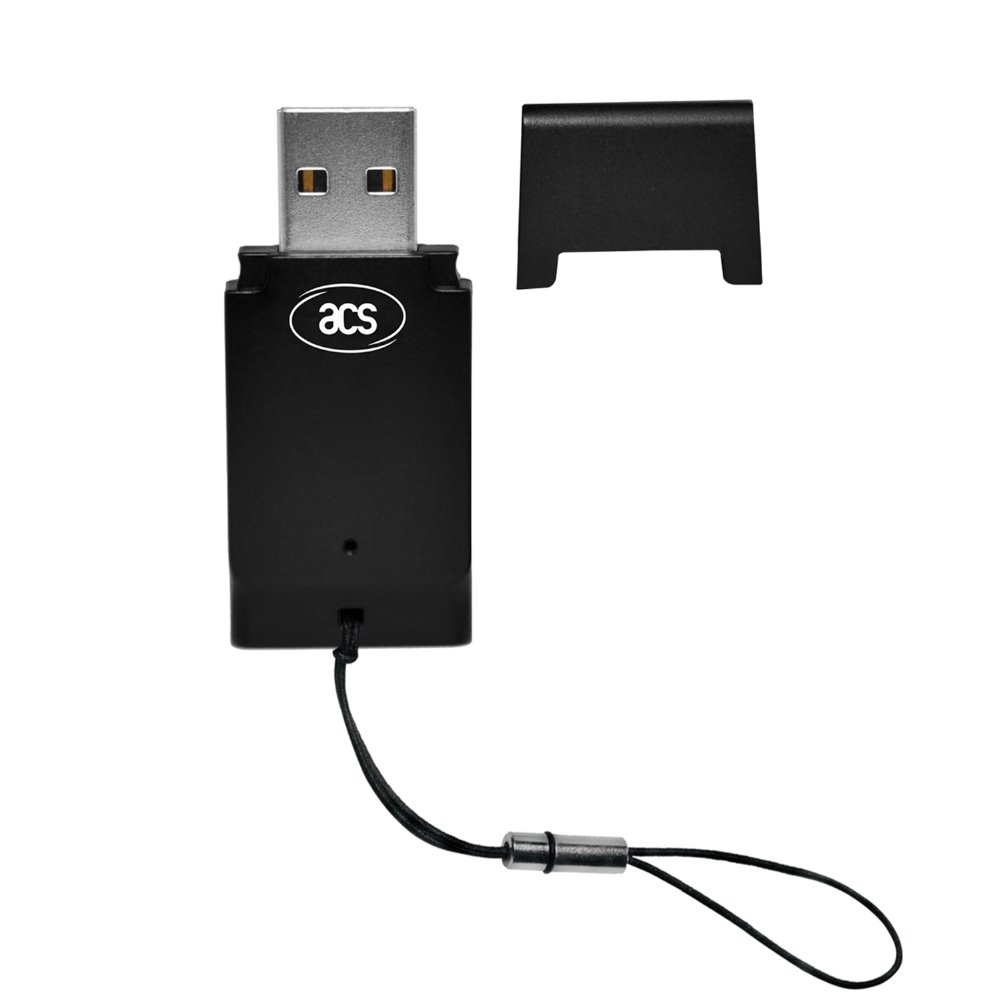

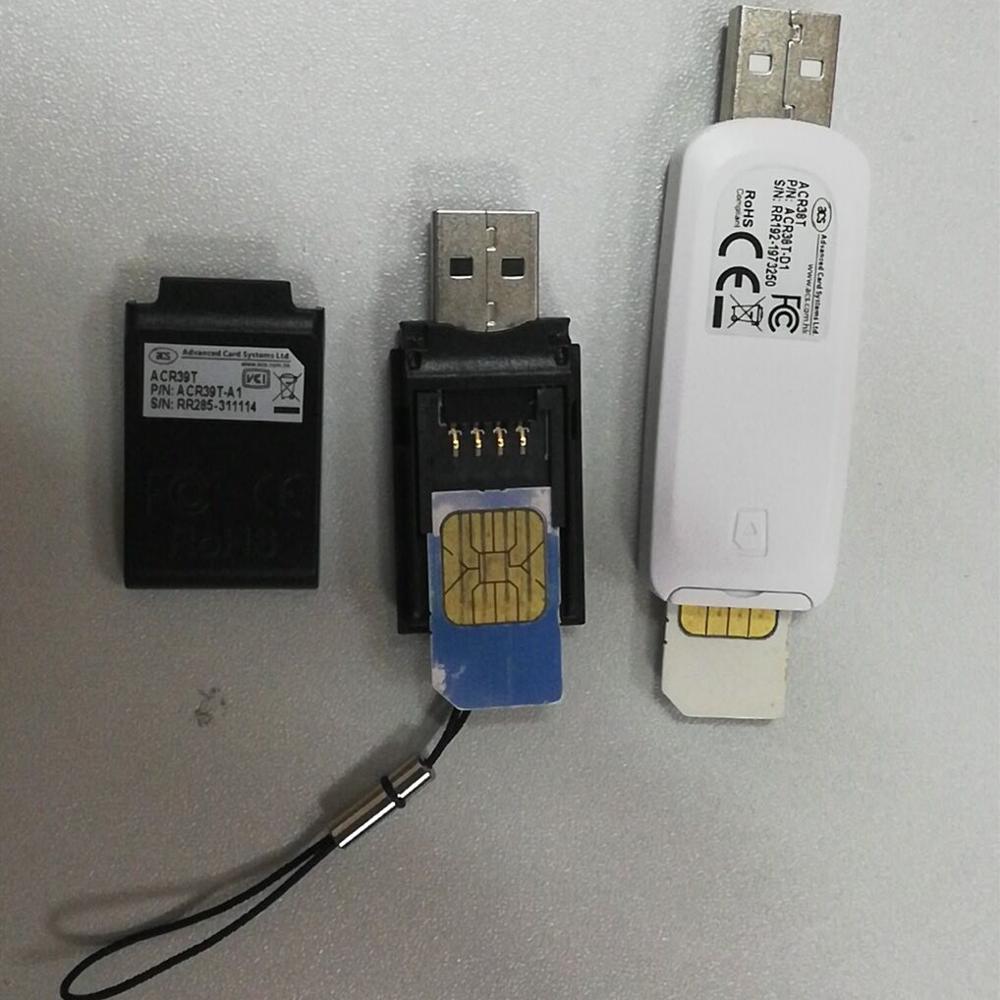

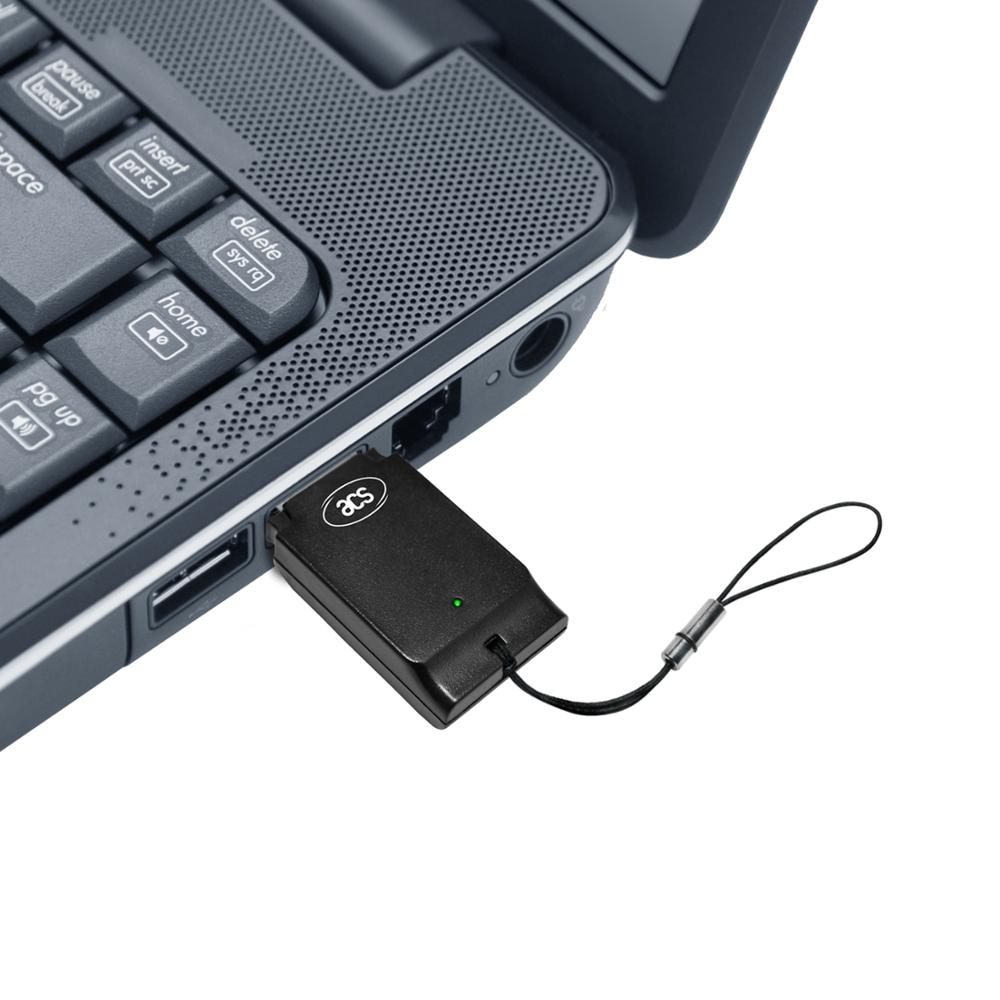

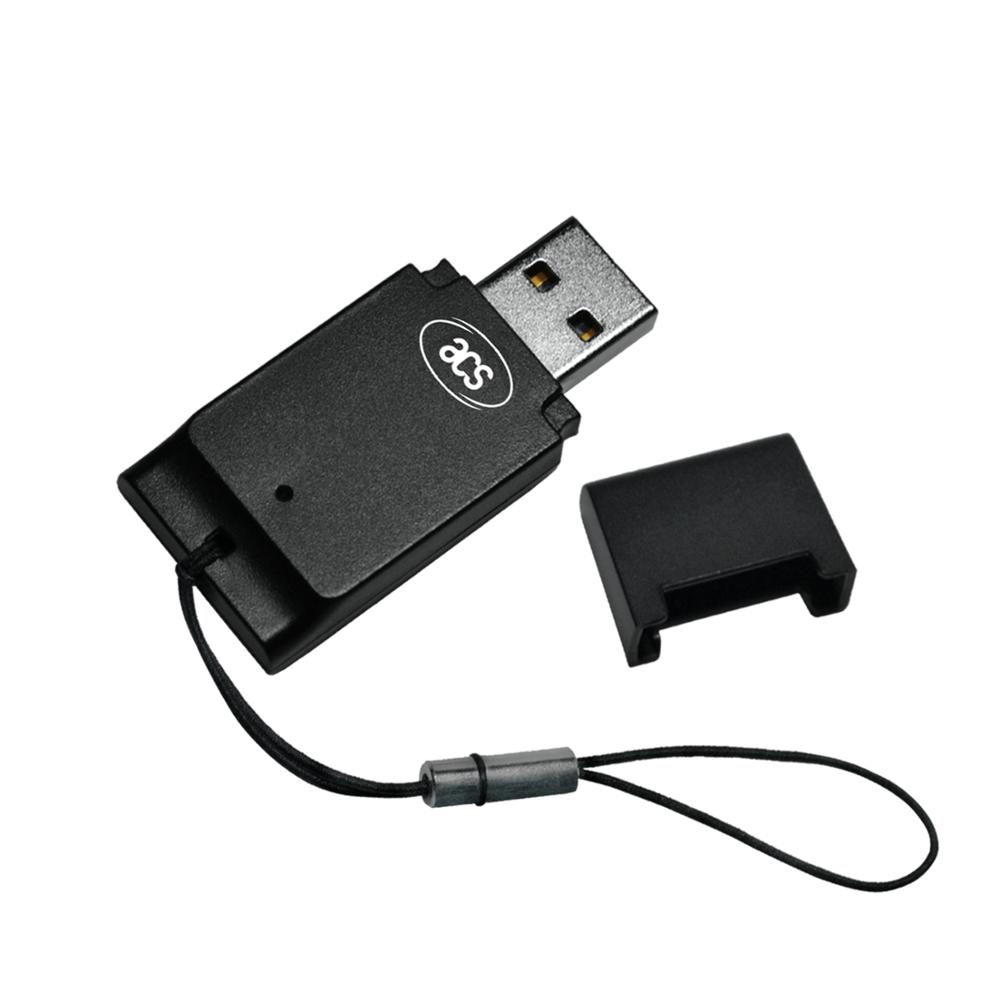

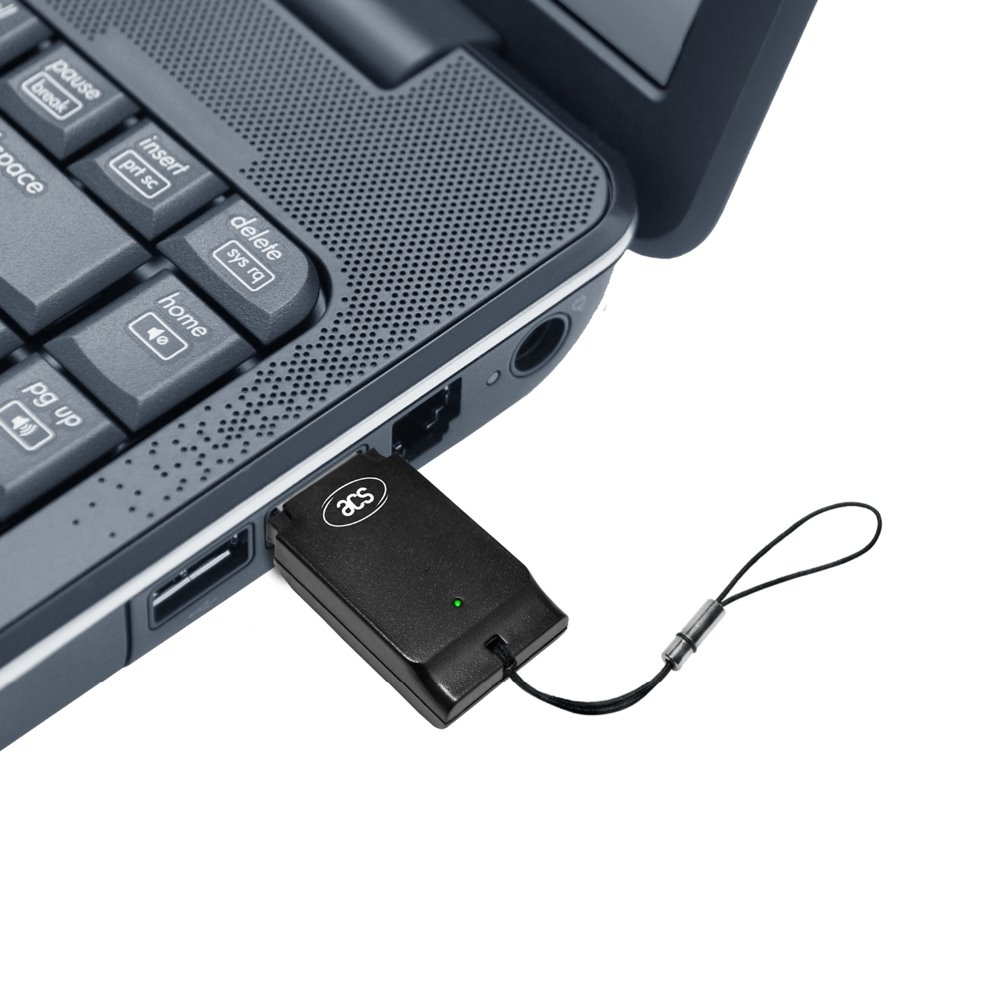

USB CCID ACR39T-A1 SIM-Size Smart Card Reader Writer Compatible ACR38T-D1 for SLE4442 SLE4428 AT24C16/64/02 ST14C02C, ST14C04C Cards
ACR39T-A1 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.
ACR39T-A1 supports ISO 7816 smart cards, various memory cards, and microprocessor cards with T=0 and T=1 protocol. It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows, Linux, and for Mac OS. Additionally, ACR39T-A1 may also be used on mobile devices running on Android™ platform versions 3.1 and above.
Weighing nothing more than your standard USB stick, ACR39T-A1 is a device that you can bring anywhere to keep smart card technology right at your fingertips.
-
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) and 1.6V cards
-
Supports microprocessor cards with T=0 or T=1 protocol
-
Supports memory cards such as:
-
Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:
-
Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024
-
SGS-Thomson: ST14C02C, ST14C04C
-
Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
-
Cards with intelligent 1k bytes EEPROM with write-protect function, including:
-
Infineon: SLE4418, SLE4428, SLE5518 and SLE5528
-
Cards with intelligent 256 bytes EEPROM with write-protect function, including:
-
Infineon: SLE4432, SLE4442, SLE5532 and SLE5542
-
Supports PPS (Protocol and Parameters Selection)
-
Features Short Circuit Protection
-
Application Programming Interface:
-
Supports PC/SC
-
Supports CT-API (through wrapper on top of PC/SC)
Primary Applications
-
e-Government
-
Banking & Payment
-
e-Healthcare
-
Access Control
-
Network Security
-
Public Key Infrastructure
-
e-Purse & Loyalty
|
Physical Characteristics
|
|
Weight (g)
|
8.5 g
|
|
Dimensions (mm)
|
49.5 mm (L) x 21.5 mm (W) x 9.0 mm (H)
|
|
USB Interface
|
|
Power Source
|
From USB port
|
|
Protocol
|
USB CCID
|
|
Speed
|
USB Full Speed (12 Mbps)
|
|
Connector Type
|
Standard Type A
|
|
Contact Smart Card Interface
|
|
Protocol
|
T=0; T=1; Memory Card Support
|
|
Number of Slots
|
1 Standard SIM-Sized Card Slot
|
|
Standard
|
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
|
|
Certifications/Compliance
|
|
Certifications/Compliance
|
EN 60950/IEC 60950
ISO 7816
USB Full Speed
PC/SC
CCID
VCCI (Japan)
Microsoft WHQL
CE
FCC
WEEE
RoHS 2
REACH
|
|
Device Driver Operating System Support
|
|
Device Driver Operating System Support
|
Windows
forLinux
for MAC OS
for Solaris
Android™
|
100% ACS Original , if you need bulk order it , pls contact us!!
