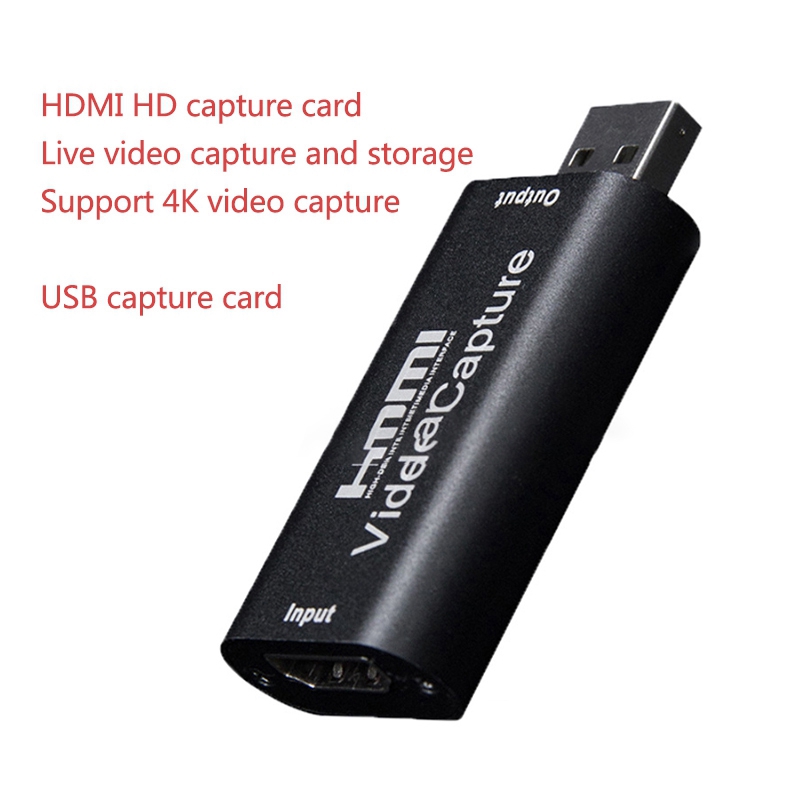

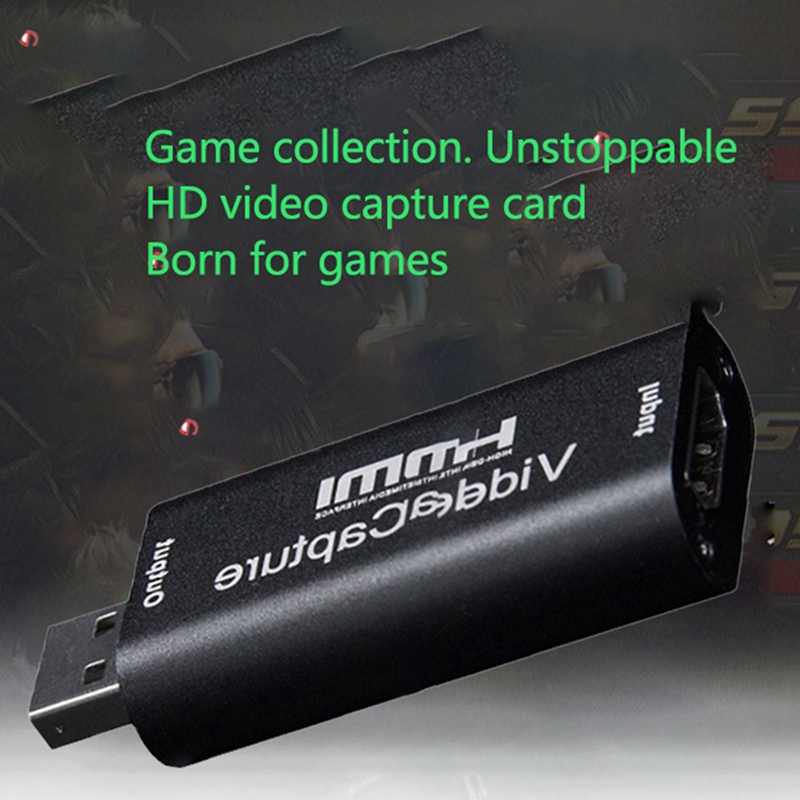

Support windows, Linux, Android and MacOS systems. Support 4K video capture, output video up to 1080p

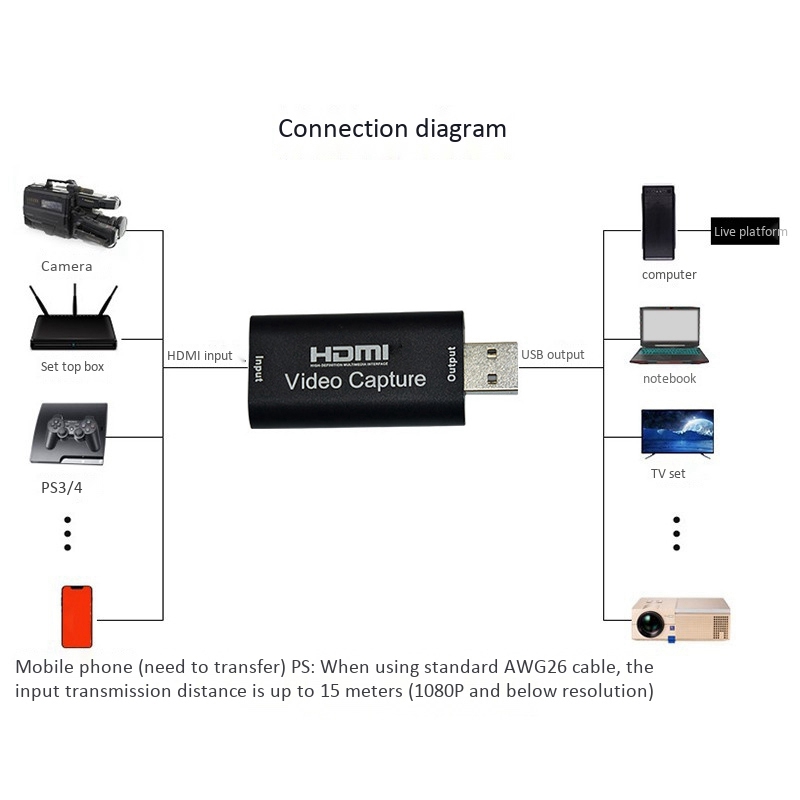

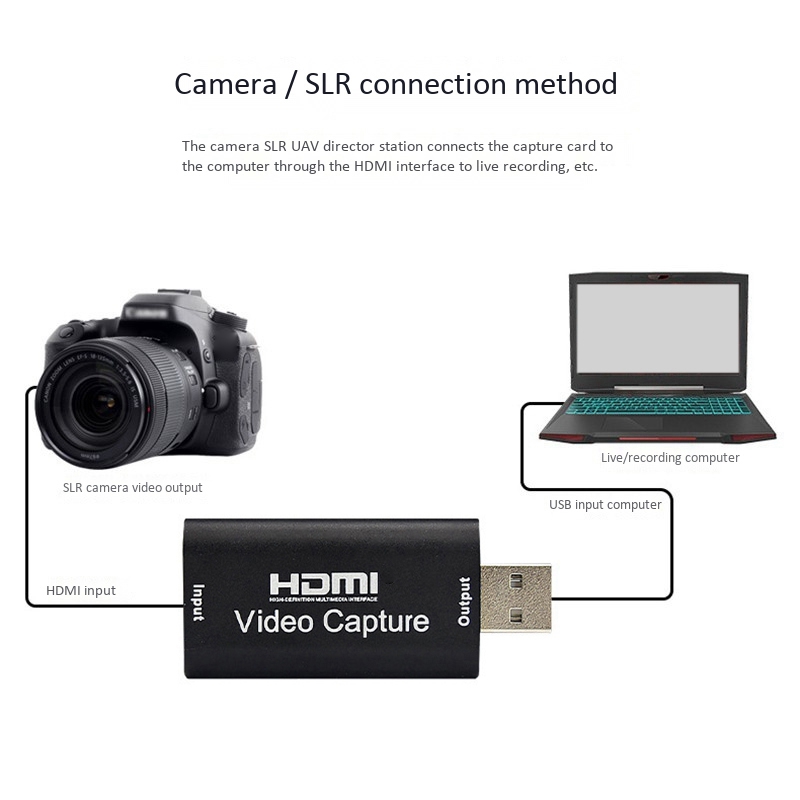

This USB 2.0 capture card can capture HDMI video and HDMI o at the same time, and can transmit o and video signals to a computer or smartphone for preview and storage.
It is suitable for HD acquisition, live video acquisition, teaching record video acquisition, online course video acquisition and storage, iing acquisition, etc.
Support the maximum input resolution of 4k30hz; Support the maximum output resolution of 1080p-30hz; Support 8/10/12 bit color depth; When using standard awg26 cable, the maximum input transmission distance is 15m (1080p and below resolution);
Support most acquisition software, such as VLC, OBS, amcap, etc; It conforms to USB video UVC specification; Conform to USB o UAC specification; No external power supply is required, so it is compact and easy to carry.
HDMI resolution: the maximum input can support 3840 x 2160 @ 30Hz / 4K
Video output resolution: the maximum output can be 1920 x 1080 @ 30Hz
Video input format: 8/10/12 bit dark color
Video output mode: YUV / jpeg
Support o format: l-pcm
Support awg26 HDMI standard cable: input less than equal 15m, awg26 HDMI standard cable.
Maximum working current: 0.4a/5vdc
Operating temperature range: (- 10 to + 55 ℃)

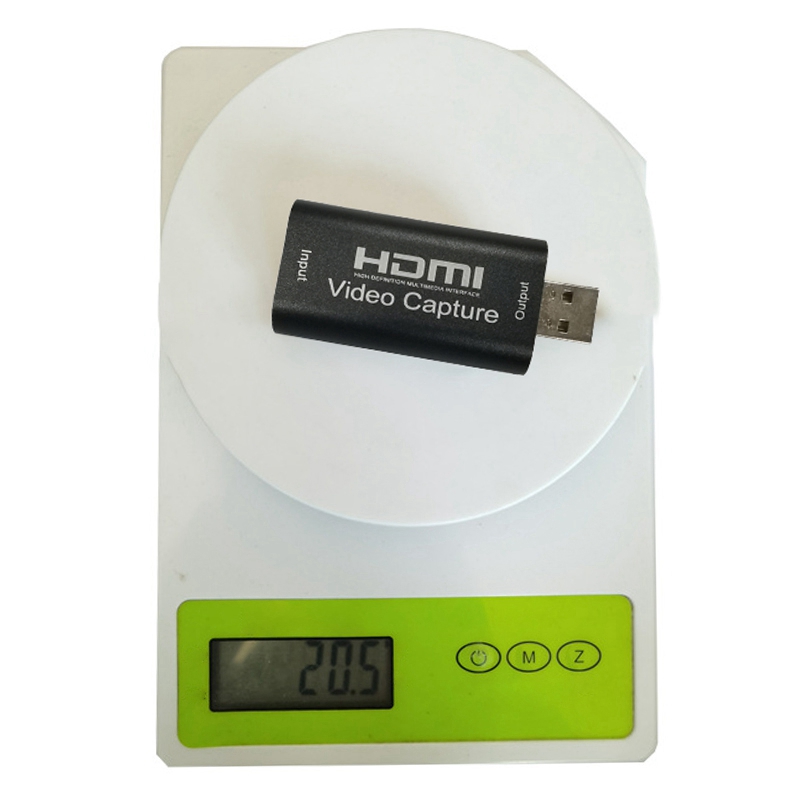

Product weight: About 20g

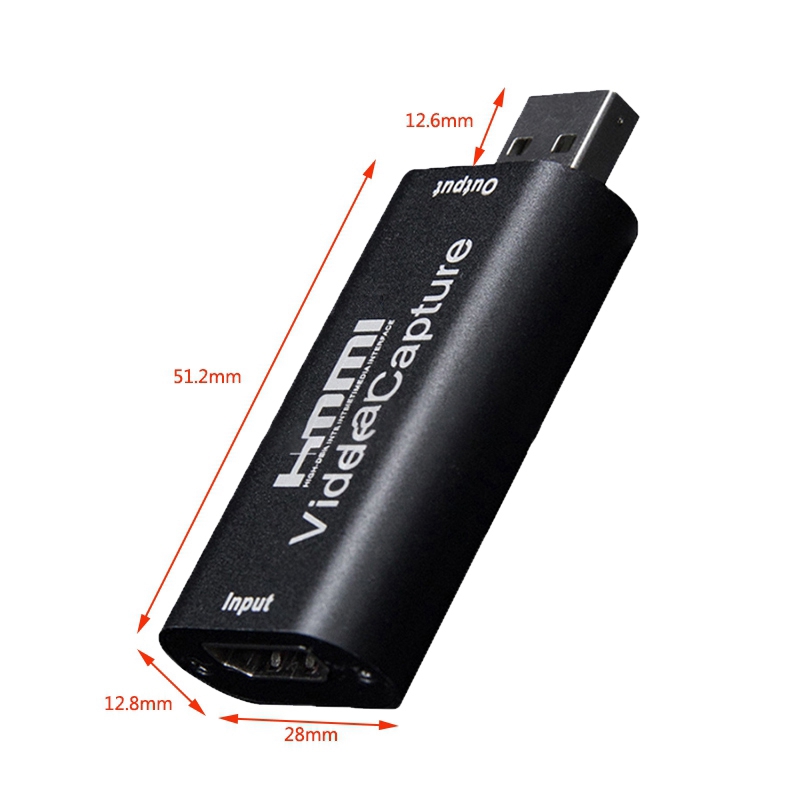

size:12.8x28x51.2mm
Material:ABS
colour:Black
Package Contents:
1 x Capture card
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
