150kg automatic swing gate opener motor operator circuit board electronic card controller for 12VDC gate opener dual

 Swing Gate Operator Board; 12VDC output;

no battery included in the remote controls;

​this board is only working with our remote contols; not compatible with other remote controls;

Kit contents:

​

kit1 includes a swing gate board, no remote controls;

kit2 includes a swing gate board+2 remote controls;

kit3 includes a swing gate board+4 remote controls;

kit4 includes a swing gate board+6 remote controls;

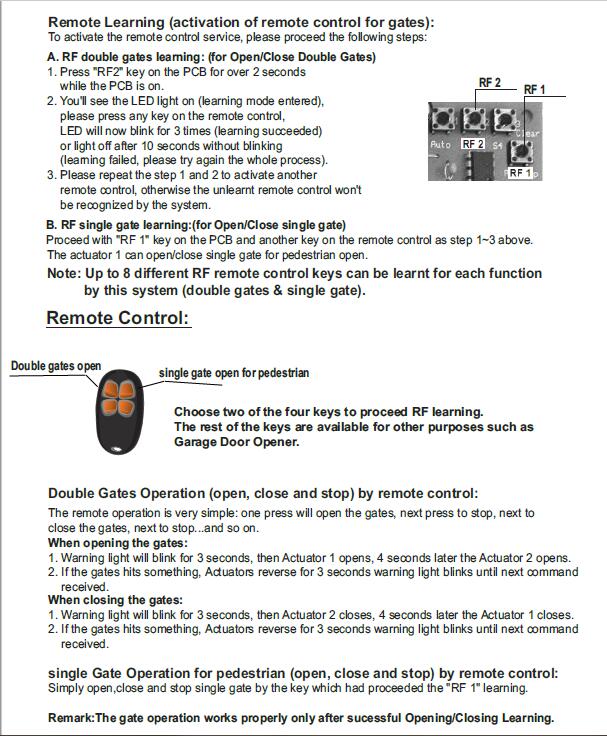

the board  and remote control is updated as the following pictures and please get noted:

• Soft start slow stop, automatic close, obstacle detection by automatic reversng.
• Interface for GSM, infrared sensor, alarm light, wall button.
• 12V Back up battery pins is available.
• Works with solar panel.
• Shell material is metal
• Separate control unit, easy to install.
•
• piston-style - For 2-panel gates

  This piston-style drive is perfectly suited to large or heavy gates made of any material, and is the ideal solution to simplify your day-to-day life while making your property more secure.

  2 x 12 VDC electric telescopic actuators equipped with a worm drive system, with mounting brackets
  1 electronic control box with simple programming of the opening and closing cycle
  Mounting and fastening brackets
  2 x 4-button 433.92 MHz remote control units


  - Compatible with all types of gate (PVC, Aluminium, Openwork wood or steel)
  - Max. dimensions and weight of the gate: 3m/200kg per panel
  - Inwards opening, maximum angle: 120°
  - Outward opening optional (mounting kit available)
  - Safety: stop on encountering obstacle + reversal of direction
  - Manually override the motors in the event of a power cut
  - Automatic (after time delay) or semi-automatic gate closing
  - Side gate mode (suitable for a single-panel gate)​

•





•
