7 Inch 800*480 TFT LCD Display
Descriptions:
This 7 inch High-resolution 800*480 LCD display module kit is especially designed as a monitor for Raspberry Pi 2 Model B and Raspberry Pi B+ B A+.
For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 800x480 in case it doesn't detect the resolution properly. The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.
Features:
-
Screen size:7 inch LCD
-
Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
-
Rated power: 6-7W
-
Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
-
Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board
-
Resolution: 800 * 480,
-
Plug and Play: Support
-
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
-
Control: Multi-function OSD operation or potentiometer adjust the brightness and color
-
Features: Using mature program, clear display
-
Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format
Specifications:
-
Display size: 7 inch
-
Touch screen: Not support
-
Dimensions: 165 (W) × 100 (H) × 5 (D) mm
-
Viewing area: 154.08 (H) × 85.92 (V)
-
Resolution: 800 × 3 (RGB) ×480
-
Viewing angle: L70 ° R70 ° U50 ° D60
-
Panel type: TFT
-
Contrast ratio: 500: 1
-
Interface type: Digital
-
The number of connection: 50 PIN Digital (TTL) TCON
-
Backlight: LED
-
Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

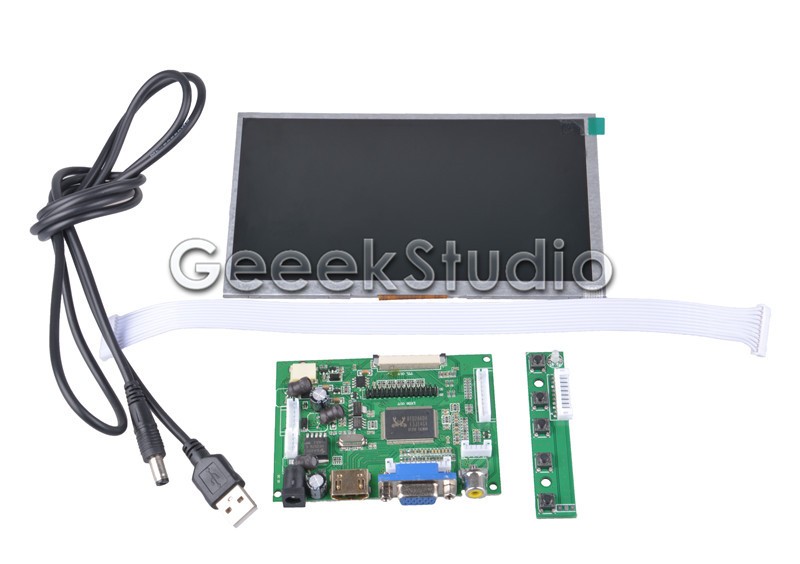

Package Includes:
-
1 x 7 Inch LCD Screen
-
1 x LCD Driver board
-
1 x White Cable (connect to the key board)
-
1 x Long Green Key Board
-
1 x USB to DC5.5 Power Line
Technology Support:
-
wiki.52pi.com/index.php/7-Inch-800x480_Display_Kit(without_Touch_Screen)_SKU:Z-0111
