Introduction:
-

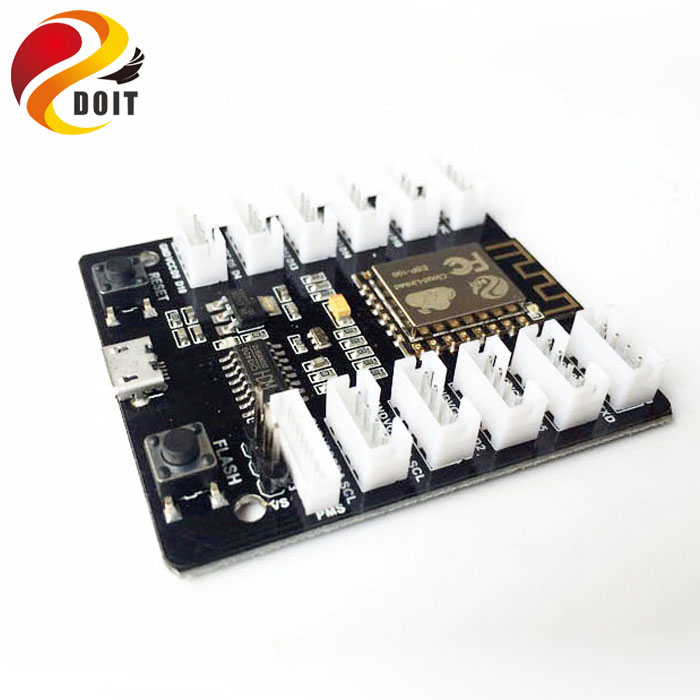

ESP8266 Grove Kit is designed and developed by Shenzhen Doctors of Intelligence & Technology (SZDOIT). The module is designed based on esp8266 by Espressif Systems, which is a competitive WiFi solution. The module has the following interface for users, such as UART, IIC,AIO,DIO etc.
-
The grove connector pitch is 2.54mm. The PM5003 connector pitch is 1.27mm (NC,NC,NC,RX,TX,NC,GND,VCC)(Up to Down)
Features:
-
802.11 b/ g/ n wireless standards;
-
STA/AP,STA+AP modes support ;
-
TCP/ IP protocol stack, One socket;
-
Supports standard TCP/UDP Server and Client;
-
Supports serial port baud rate configuration:
-
1200/2400/4800/9600/19200/38400/57600/74800/115200 bps;
-
Supports serial data bits: 5/6/7/8 bits;
-
Supports serial parity: none;
-
Supports serial stop bits: 1/2 bit;
-
ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC/ EN/UART TX/ UART RX;
-
WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode:<200ua;< span="">
-
Serial WiFi transmission rate: 110-460800bps;
-
Temperature: -40 ~ + 125 ;
-
Humidity: 10%-90% non-condensing;
-
Interface Definition and LED Definition
Serial to WiFi, WiFi to Serial, test successfully.
3.1 Interface Definition

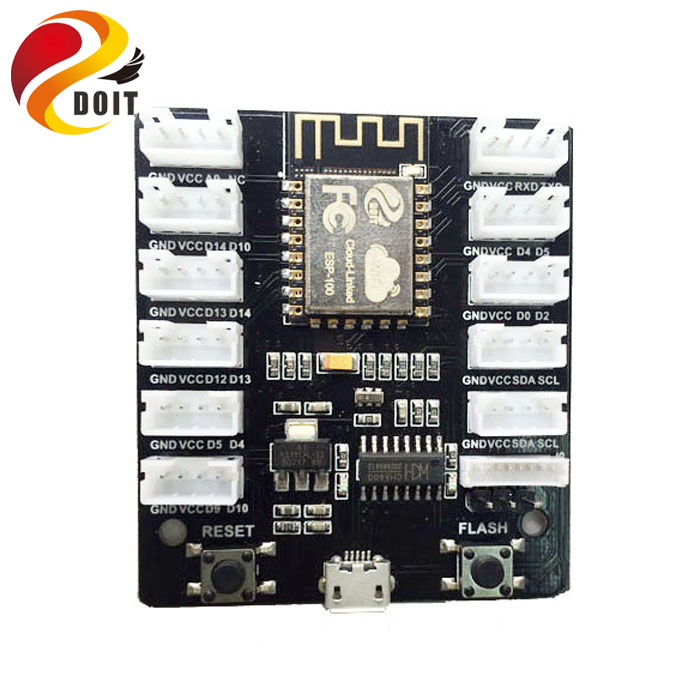

This ESP8266 Grove Kit module board provides interface as shown in PCB view. And each pin functions are silk-printed in circuit board, as follows:
3.2 LED definition
This ESP8266 Grove Kit module has two LEDs. Red color LED is donated to power supply. Blue LED is a multi-functional LED, and it connects with GPIO16
More solutions
Here is the copy
There was a problem with the flashing of the module. After spending 5 hours searching, I realized that I had to press the ＜FLASH> button, then immediately the <RESET> button. Parameters for flashing: baudrate 115200; Flash speed 40MHz; SPI Mode DIO. I think you can indicate this in the advertising booklet. I think this can help many people to run away from the problems that I encountered.
