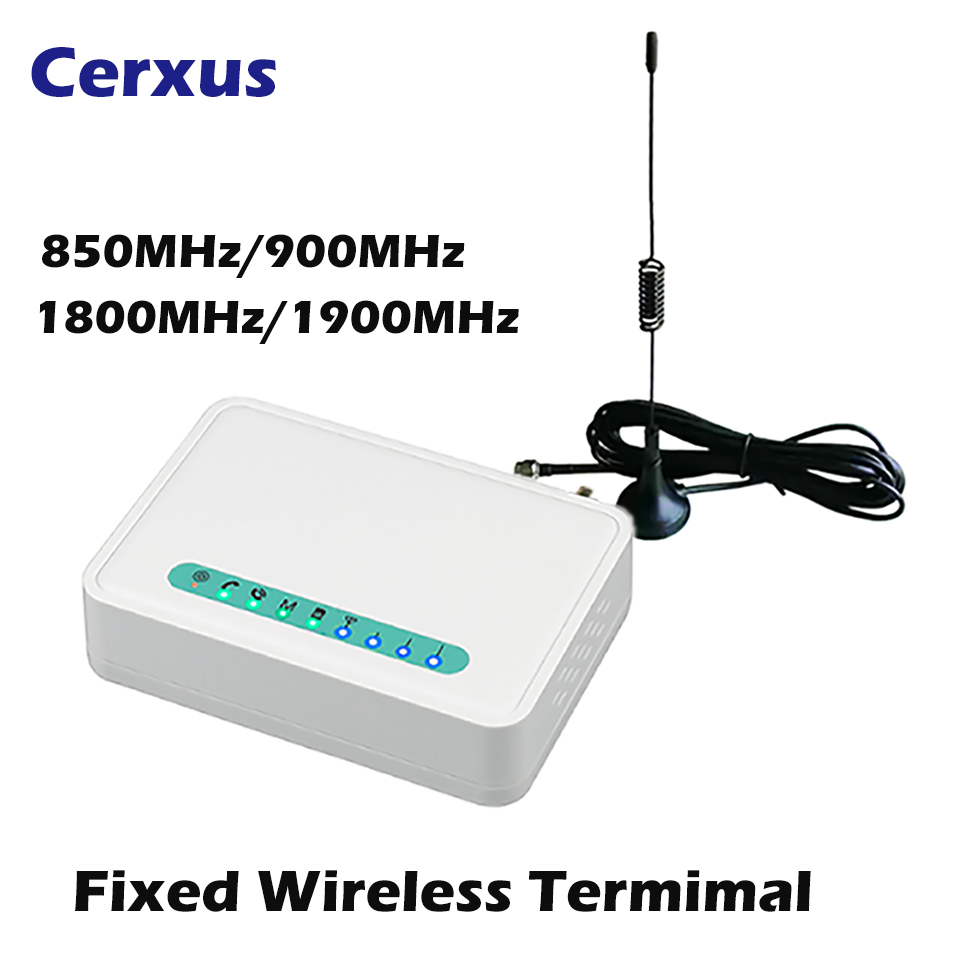

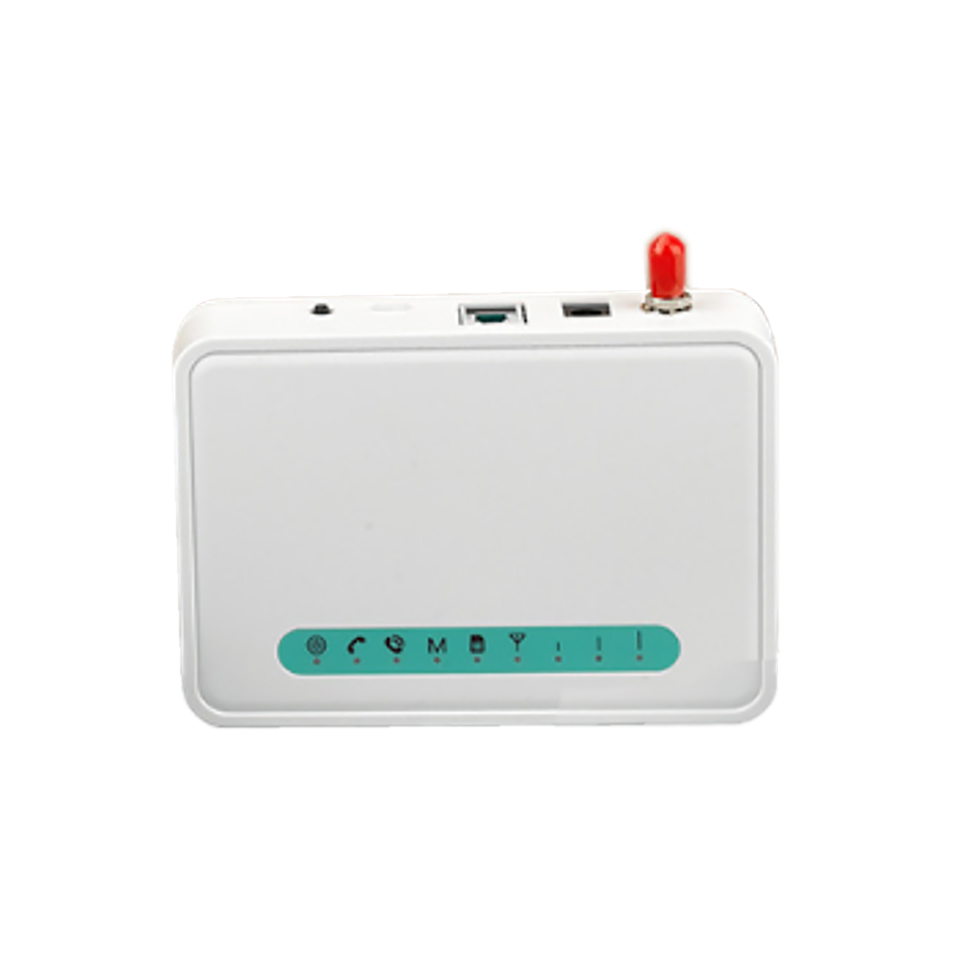

Quad Band GSM Wireless Terminal/Phone With LED Display
You can dial the local calls, domestic and international calls with this terminal connecting with a desktop phone and a SIM card
Sultable for Alarm System! Compatible with GSM 850/900/1800/1900 MHz, widely used with many providers
Simple to install and easy to maintain, A directional higher gain antenna can be connected to solve the poor coverage problem
How to use this device?

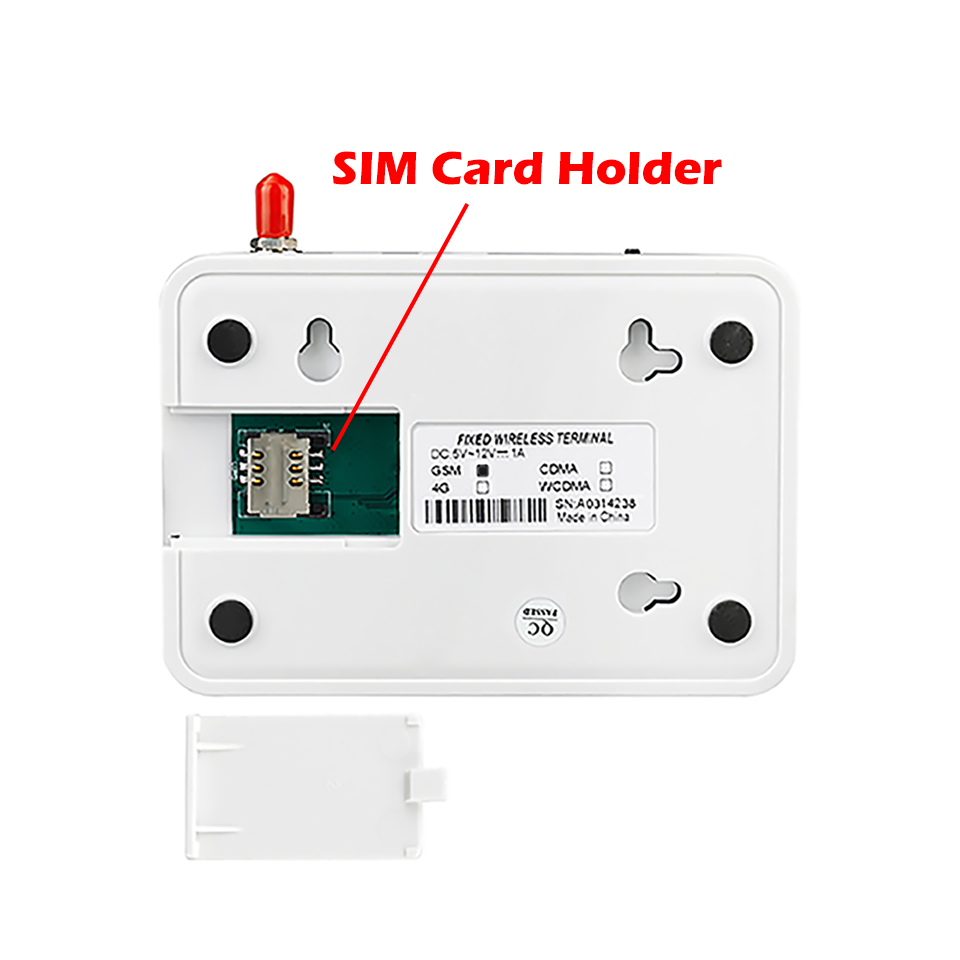

Step 1: Install a SIM Card
Insert the SIM card only when the terminal is switched off and the AC adapter is unplugged
Step 2: Connect the Antenna
For antenna connection, you can use your mobile phone to search for the place where the strongest signal is, then put the antenna there. Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal. Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram etc. It will disturb the signal of the terminal.
Step 3:Connecting your terminal with desktop phone

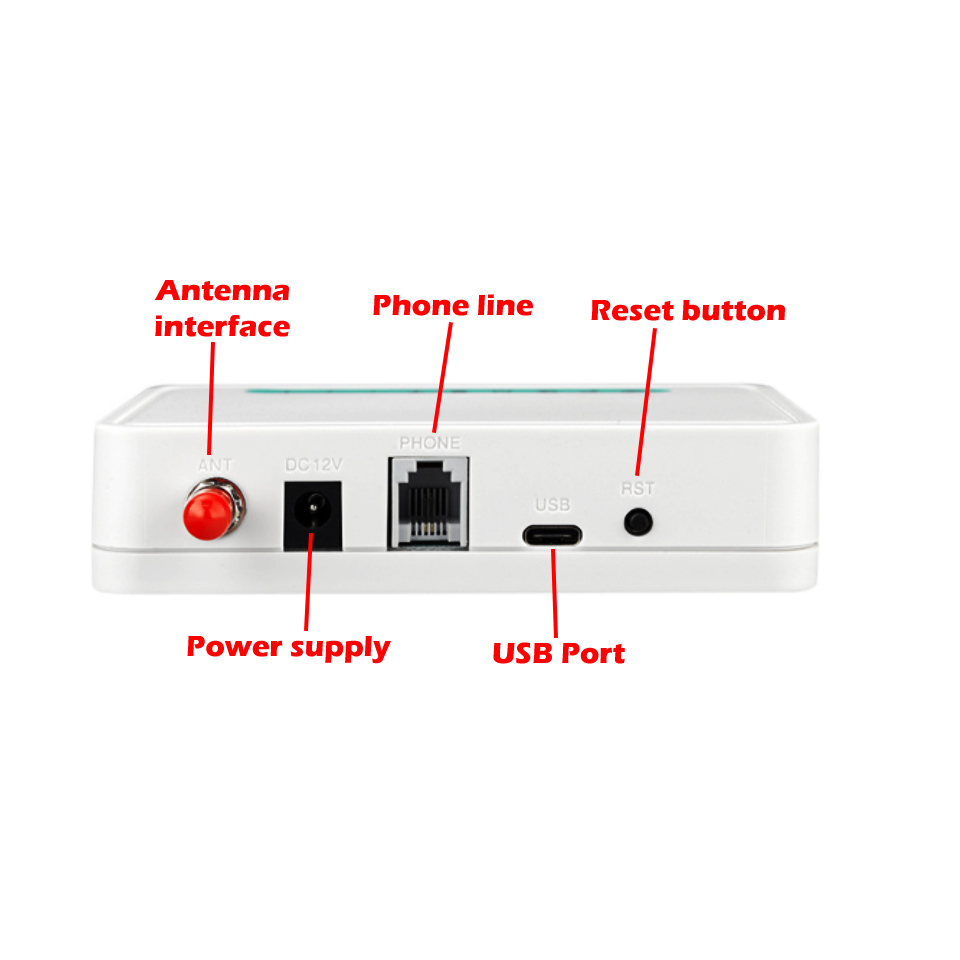

To make calls, you should connect the telephone line with RJ11 phone port of GSM terminal and telephone set
There is one communication portal at the side of the terminal .You can connect one desktop phones with terminal. (Please use the telephone line in the package)
Step 4: Connect power adapter and switch on the power.
Step 5: For a while, the device get GSM signal and enter normal working status.
Step 6: Make phone call (dial in and dial out) with your telephone set that connected with terminal.
The phone number of desktop phone is the GSM SIM card number inside terminal.
Specifications
Compatible to PABX, alarm system, the recording system, etc.
1.Networks support:
GSM850/900/1800/1900MHz
2. Frequency range:
GSM 850MHz(Transmits : 824-849MHz, Receives : 869-894MHz)
GSM 900MHz(Transmits : 890-915MHz, Receives : 935-960MHz)
GSM 1800MHz (Transmits : 1710-1785MHz, Receives : 1805-1880MHz)
GSM 1900MHz (Transmits : 1850-1910MHz, Receives : 1930-1990MHz)
3. Voltage DC 5V-12V
4. Power consumption:
Statics≤25mA emission≤300mA
5. Peak power consumption: 0.5W
6. Receive sensitivity: -104db
7. Antenna increment: All directions: 3.0db; Certain/Selection: 12db
8. RJ11 Port
9. Operation environment temperature: -10~+40℃
10. Dimensions: 120*85*28mm
11.Telephone line length: 150cm / 59 inch
EU, US, UK, AU power plug for choice, will send corresponding plug to fit your country.
Package include:
1*Wireless terminal
1*Antenna
1*Power Adapter
1*Telephone Line
1*English Manual
