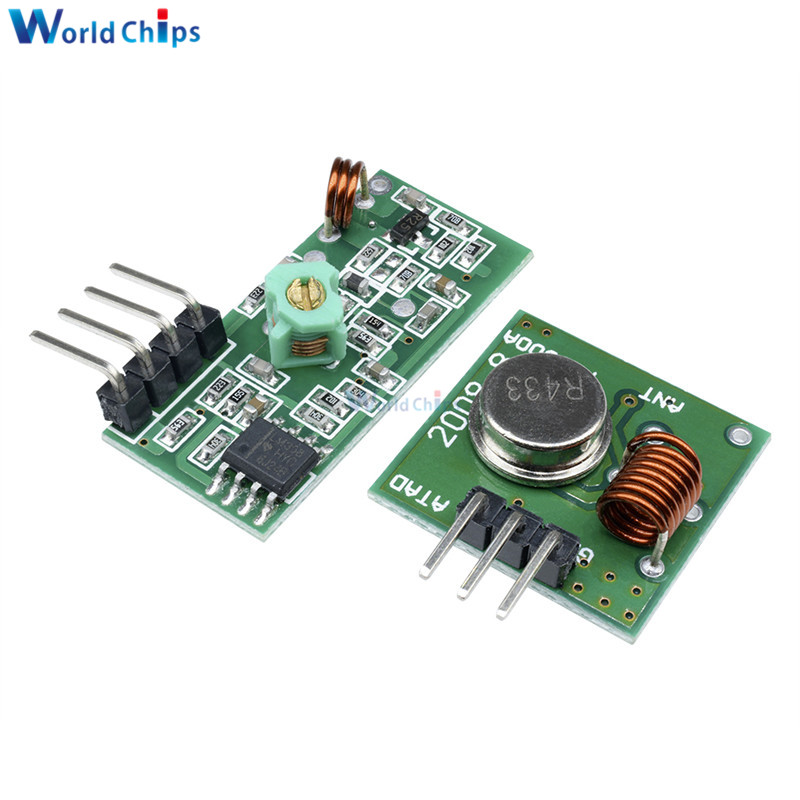

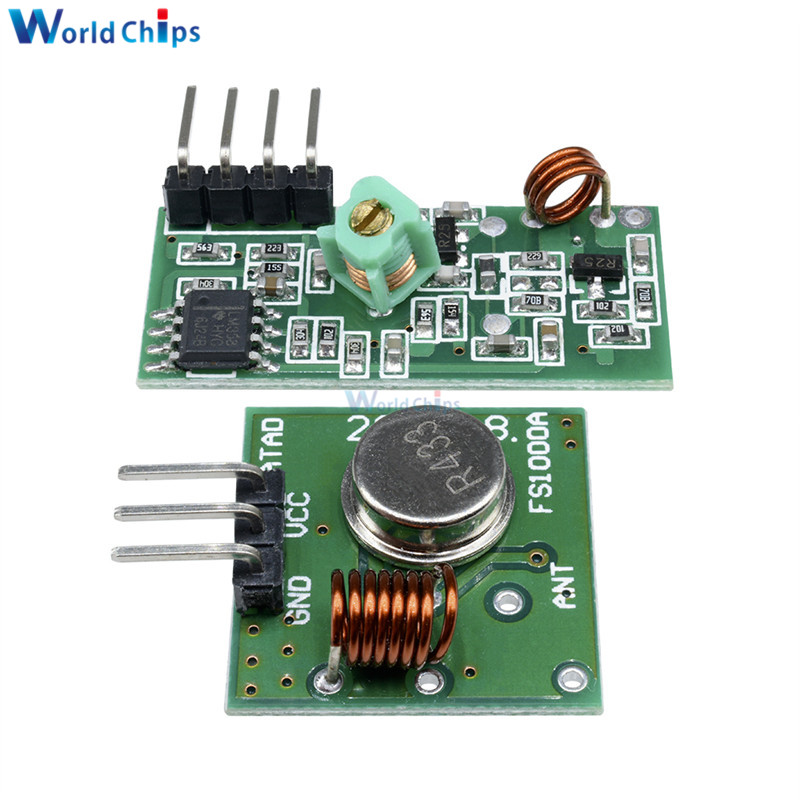

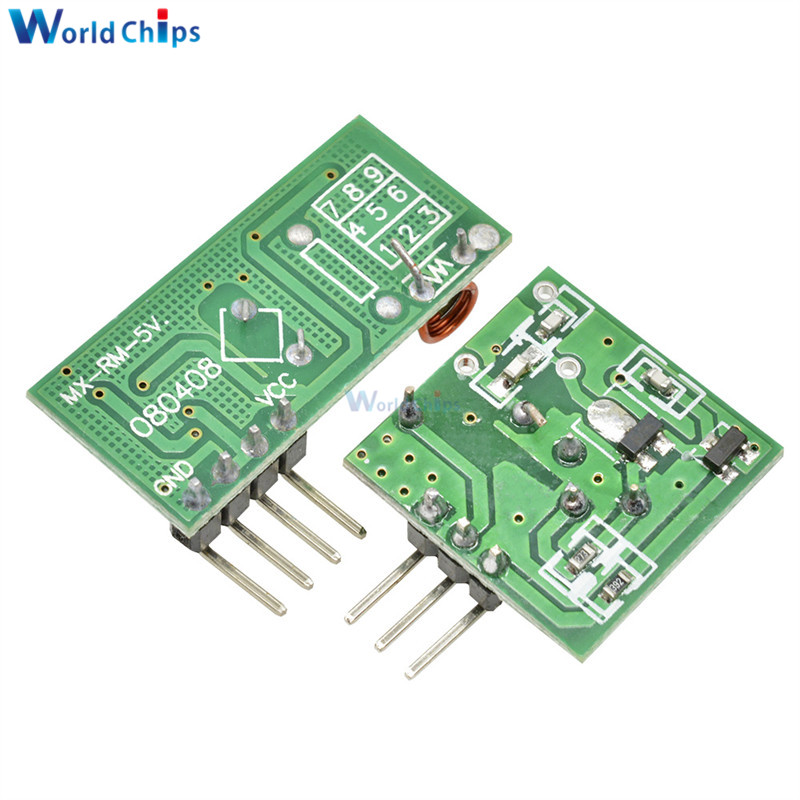

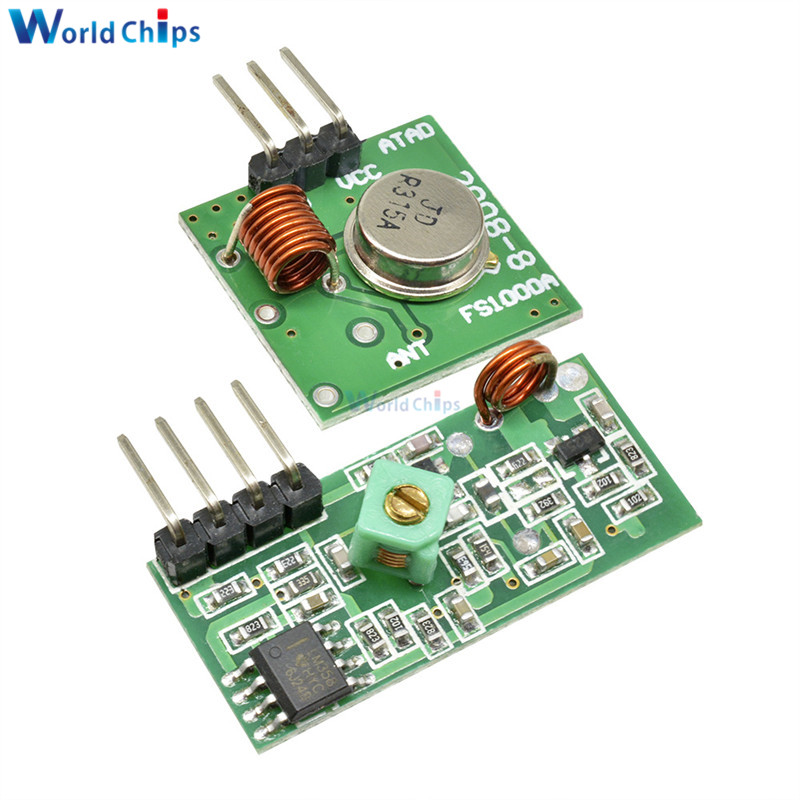

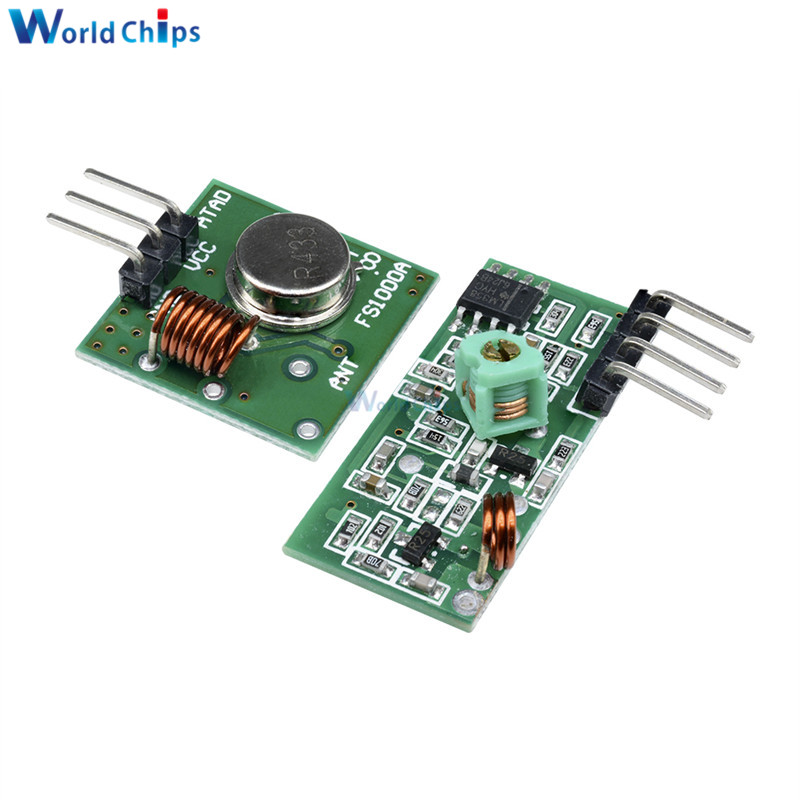

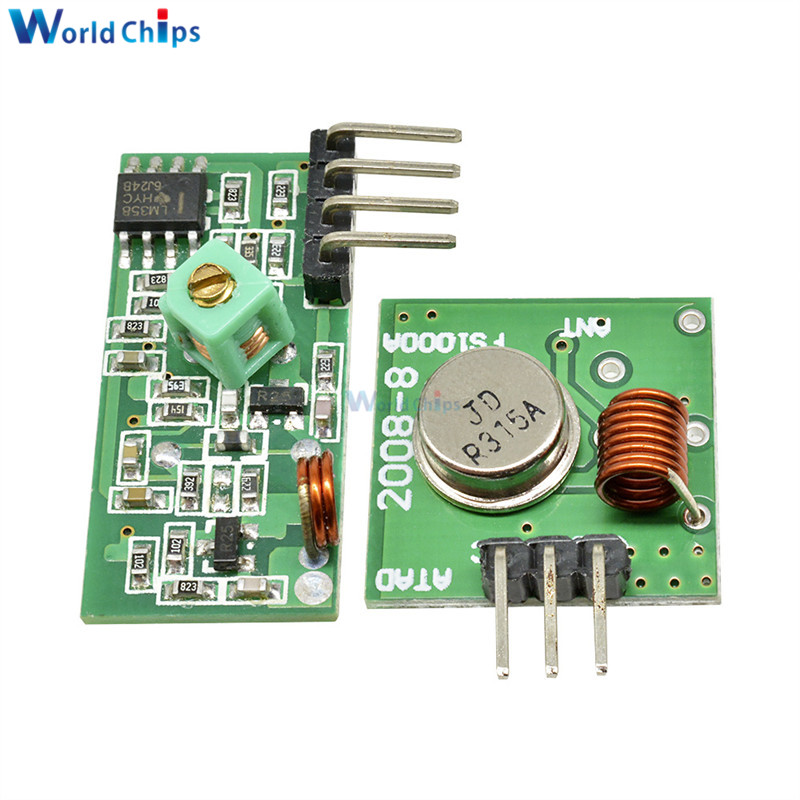

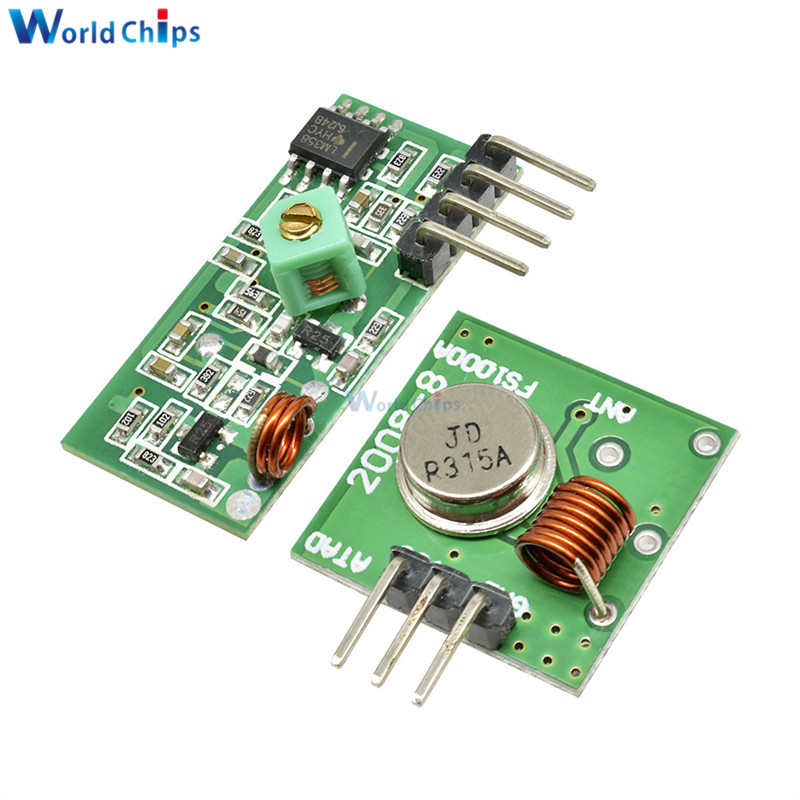

433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • 433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • 433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • 433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • 433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • 433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • 433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit
  • In Stock
  • Ready to Ship
  • Fast Dispatch

433 Mhz RF Transmitter and Receiver Module Link Kit for ARM/MCU WL DIY 315MHZ/433MHZ Wireless Remote Control for arduino Diy Kit

  • $1.14
    5-9
    Pieces
  • $1.08
    10-19
    Pieces
  • $1.03
    20-49
    Pieces
  • $0.91
    ≥50
    Pieces
5 Piece/Pieces (Min. Order)
option:
  • 433M
  • 315M
Quantity:

0 Piece,Product Price: US $ 0

  • Lead Time:/ days
  • Shipping time:/ days
  • Product Description
Overview
Product Attributes
Brand Name:
diymore
is_customized:
Yes
Model Number:
433 Mhz RF Transmitter and Receiver Module
Application:
Computer
Package:
TQFP
Condition:
New
Type:
Voltage Regulator
Operating Temperature:
as the description
Supply Voltage:
3.5-12V
Dissipation Power:
as the description
Brand Name:
diymore
Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
40cm*30cm*20cm
Single gross weight:
1kg
Lead Time :
Quantity(Piece/Pieces) 1 ~ 1000>1000
Est. Time(days) 7To be negotiated

If you finish the payment today, your order will ship out within the delivery date.





Receiver module parameters

1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433.92MHZ /315Mhz (optional)
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral


Technical parameters of the transmitter head

1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 433Mhz /315Mhz (optional)
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left → right: (DATA; VCC; GND)


Application environment

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.


Remark

1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 433M of about 17cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.


Package Included:

1 x Receiver module
1 x Transmitter head
